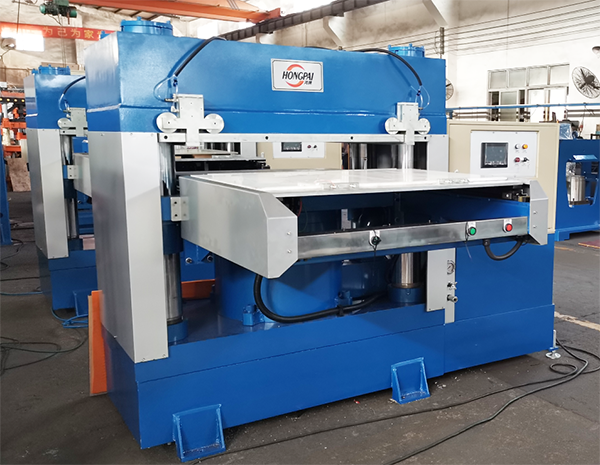

With steady , heavy, powerful pressure, specially for large size jigsaw puzzle die cutting.
Single-cylinder lifting, high repeat positioning accuracy and good guiding performance.
PLC controlled precise pressure setting, increase the service life of the die.
Main cylinder combined oil cylinder, small piston in the main piston, cutting cylinder move up and down quickly.
With auto feeding table for safety feeding, suitable for European countries.
Without feeding table is optional with safety guards for safety
| Item | No. | Content |
| main machine parameter | 1 | Working pressure: 500T pressure adjustable |
| 2 | System pressure: 25MPa | |
| 3 | Main inner size: 1160mmX870mm (Feeding table size:1120X930mm ) | |
| 4 | Effective cutting area: 1000mmx870mm (Max product size) | |
| 5 | Stroke: 150mm Minimum closure: 15mm Maximum opening: 165mm | |
| 6 | Rapid ascent speed of worktable: 120mm/S | |
| 7 | Downward travel speed of worktable: 100mm/S | |
| 8 | Oil cylinder diameter: ψ520mm | |
| 9 | Dynamic blanking repeatability in the cutting area: ±0.05mm |
|
| 10 | Cutting balance accuracy: parallelism of upper and lower steel plates ±0.1mm |
|
| 11 | Overall dimensions (length X width X height): L2250xW1900xH1950 (subject to actual conditions) | |
| 12 | Pneumatic clamping range: 400mm-1050mm (Max die size: 1050x870mm) | |
| Feeding part | 13 | Feeding method: servo rack pull plate feeding. Feeding accuracy: ±0.1mm Feeding speed: 0-800mm/s |
| 14 | Height of feeding table from ground: 1150 mm | |
| 15 | Feeding table width: 1120mm | |
| 16 | Feeding motor: Servo motor 1.2W Quantity: 1 set Brand: Aivit | |
| 17 | Helical gear planetary reducer: PM90 (1:5) Quantity: 1 set Brand: Xuan Yi | |
| 18 | Feeding rail: 2 sets of TRS25 Brand: Taiwan TBI | |
| 19 | Transmission gear rack: Die 2 helical gear Quantity: 1 set | |
| Electric Part | 20 | Electric box market customization Honggang standard |
| 21 | PLC: FBs-24MCT Quantity: 1 set Brand: FATEK | |
| 22 | Man-machine interface: Model: 7-inch color screen Quantity: 1 set Brand: Taiwan Yonghong Product counting function | |
| 23 | Control transformer: BK-300 IN380V OUT220V | |
| 24 | Servo driver (wiring 5 meters): W-H13BT3 Quantity: 1 set Brand: Aivit | |
| 25 | Voltage: According to user requirements | |
| 26 | Power of the power supply: ≤13 KW | |
| 27 | There are two control modes: manual and automatic, and each action of the machine is set with independent control switches | |
| 28 | The operating noise of the equipment must be less than 85 decibels; | |
| 29 | Set up a circuit breaker, with sound and light alarm device. | |
| 30 | Set up a cumulative operation counter (measurement object is the number of processed workpieces). | |
| 31 | All raw materials used must comply with the provisions of the National Work Safety Law. | |
| Hydraulic part | 32 | Main motor: 15HP(11kW)-PV2R2 1 set Brand: Jiejia Motor |
| 33 | Oil pump: 1 PV2R1-33-F-R Brand: Yulei | |
| 34 | Solenoid valve: Taiwan Jiugang/Quan Mao/Dongfeng | |
| 35 | Hydraulic seals: Herlette, UK |
