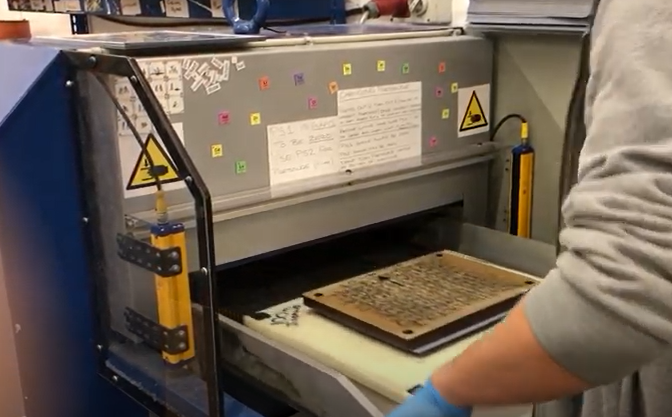

HG-E120T hydraulic puzzle cutting machine (Click to reach the same model video) is the most popular model in toys puzzle, 3D puzzle, plywood puzzle, MDF puzzle, while these puzzles are with small size, but very complicated cutting die cut lines. 120 tons, cutting area 600x500mm is perfect for these kinds of works cutting.
Belowing is the details:
1. Hydraulic type cutting press machine.
2. Max pressure 120 tons, pressure adustable.
3. Cutting area 600x500mm, max die size 570x470mm.
4. Stroke 70mm.
5. Auto feeding table, feeding speed adjustable.
6. With light guards for safety.
7. Double hands working.
8. Auto counting.
9. Multi-function cutting machine. When with heating function, it can emboss leather for shoes, lady bags...
10. Easy operation.
11. 18 years of brand manufacturing experience.
If any questions or more details required, please write to tina@hgcuttingsystems.com.
HG-E120T with 120tons 600x500mm has its limit in cutting large cardboard puzzles, if you would like to cut 1000 pcs, 2000 pcs of cardboard jigsaw puzzle, please check the 180 tons, 500 tons as below.
Scattered machine only, no packing
Cutting dies
Without feeding table
insert foams
300 tons for 500 pcs
600 tons for max 1000-2000 pcs, thick 1000 pcs
HMI, PLC as standard
Light sensor standard
Single/Dual Feeding table
Visional inspection cutting line
| Working force |
120T |
| Working area |
600x500mm, |
| Stoke |
70mm |
| Feeding Speed |
Adjustment |
| Feeding Type |
Auto feeding table |
| Motor |
1.5kw, 2.2kw, 3 kw, 4 kw |
| Pressing Time |
Adjustment |
| Heater |
3kw, 4.5kw, 6kw |
| Temperature |
0~200 degrees |
| Voltage |
3 phase 220/380/415/440V 50/60HZ |
| Dimension |
1550x1150x1520mm,1550x1350x1520mm, |
| Net weight |
600kg, 2000kg, 3000kg |
| Gross weight |
hydraulic puzzle die cutting machine |
| CBM |
|
Application:
cardboard paper puzzle,
EVA foam puzzle, mat puzzle,
plywood puzzle,
map puzzles,
3D puzzles,
300 pcs puzzles.
100 pcs puzzle
50 pcs puzzles.
Kids puzzle.
MDF puzzle
Leather embossing.
Fabric embossing
Foam die cutting.
Blister die cutting.
