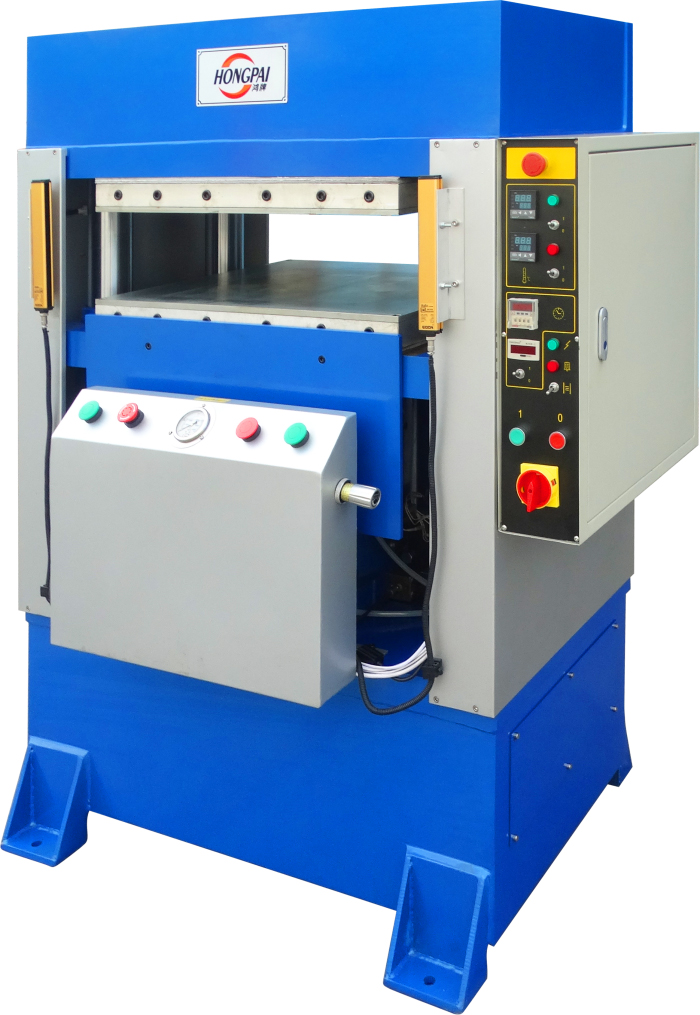

HG-E120T/M 610*700 leather embossing press machine

Model:HG-E120T/M

Request Quote

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Features Options Specifications Industries

HG-E120T/M 610*700 leather embossing press machine

For the leather embossing machine, plating machine, we welcome any customized demands for the design of the machine to meet your requirements.

1.Machine functions:
Plating
Embossing
Perforating
Polishing
Carving
Pressing
Heating edge banding
Cutting

2.Feature:
1.Processing the leather materials surface by heating plates and hydraulic pressure.
2.Both manual and automatic feeding available.
3.Heating time,heating temperature,pressure force,feeding rate can be adjusted.
4.With safety device of urgent buttons and double hands working.
5.Easy to set and unload plates,simple to operate.

3.Leather plating machine parameter:

Model.No	Pressure	Dimension	Area	Motor	Stoke	Weight
HG-S120T	120 Tons	1060x800x1600mm	610x700mm	3.7kw	230mm	2300kg

Working force	120T
Working area	710x600mm
Stoke	70mm
Feeding Speed	Adjustment
Feeding Type	Auto feeding table
Motor	1.5kw, 2.2kw, 3 kw, 4 kw
Pressing Time	Adjustment
Heater	3kw, 4.5kw, 6kw
Temperature	0~200 degrees
Voltage	3 phase 220/380/415/440V 50/60HZ
Dimension	1550x1150x1520mm,1550x1350x1520mm,
Net weight	600kg, 2000kg, 3000kg
Gross weight
CBM
