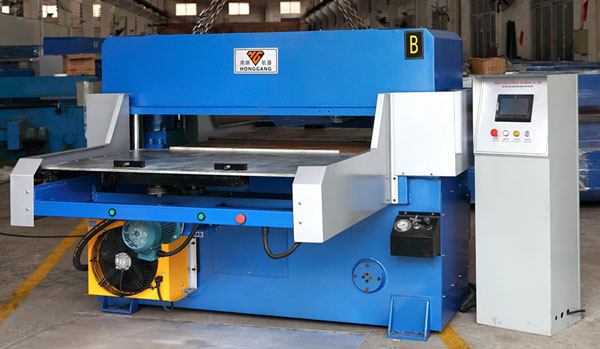

hot cnc polyurethane foam cutting machine manufacturers
We are a cutting machine manufacturer,this machine is very popular in china,it used for die cutting disposable blister or EPE foam packaging,foam sample,product,material,plastic,large materials sheet etc.
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
We have working videos of this cutting machine,Please be free to contact us for video links.
these have some sample of this foam cutting machine：
1.By computer,Electrical box,PLC control---more simple,fast and precision.
2.TWO-cylinders,four-columns,self-balancing connecting rod ----which can maintain equal pressure of each position.
3.Quite down but slow cut, more accurate,+ _ 0.01mm.
4.Hydraulic system, Central automatic lubrication systems can ensure precision and durability of the machine.
5.Feeding: Single or double auto feeding beds for choosing,more economical and 2 or 3 times improving producting capacity.
6.With micro motion system for installed Double dies.
Cutting force
50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area
610x1220mm, 710x1220mm,610x1400mm, 810x1400mm, 610x1600mm, 810x1600mm, 910x1800mm,etc as request.
Working tables
double table
Feeding table type
Chain feeding
Motor
4kw,5.5kw,7.5kw,9.5kw,11.5kw,13.5kw
Stroke
50-160mm, 50-240mm
Voltage
3 phase 220/380/415/440V 50/60HZ
Dimension
3000*2300*1570mm
Net weight
4500kg
If any question about delivery,application,working videos,cutting force.
how to cut？
how to make the cutting die?
how to fix the cutting die？ please contact us.

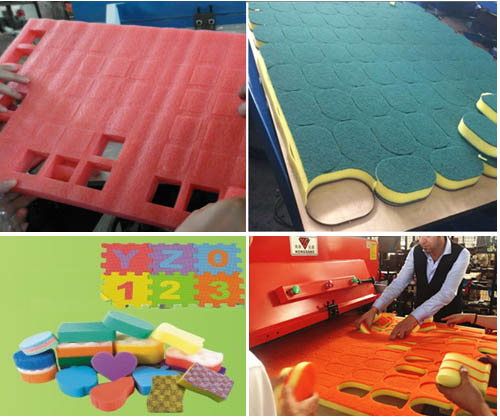

Cutting samples.
PP board and cutting die.
