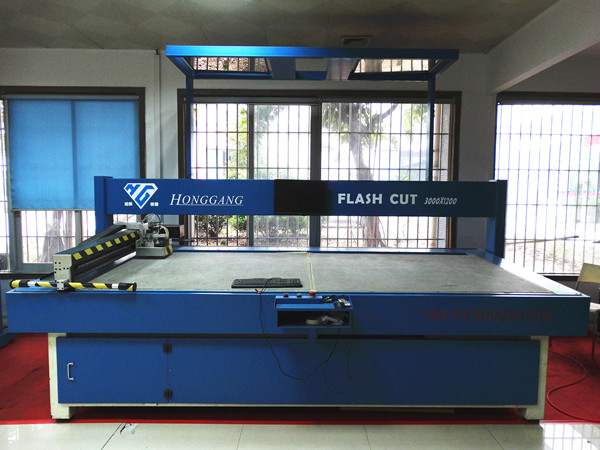

automatic oscillating knife cutting machine
l Inclined working area
l Manual and auto nesting alternatively
l Three-axis working arm with functions auto cutting, punching, drawing,marking
l Precision ratio:0.01mm
l Vacuum adsorption system
l Rear roller sliding device
l Photoelectric-controlled safety system
l Windows XP system environment
l Providing eight language versions
tools
one working station, two working stations.
vaccum fiber board
| Working area |
3000x1200mm, 1500x1200mm |
| programming language |
8 |
| Max cutting speed |
70mt/min |
| Cutting Thickness |
0.1-4mm |
| Punching Thickness |
0.1-8mm |
| Acceleration |
5M/S |
| Punching Frequency |
240/min,250/min-300/min |
| Vacuum power range |
6.5kw,8.5kw |
| Machine power |
8.5kw, 10.5kw |
| Pneumatic circuit |
4 bar, 6 bar |
| Projector brightness |
3200LM |
| Size(w*d*h) |
2.2×1.75×1.3m,3.7*1.75*1.8 |
| Weight |
450kg,850kg |
| Projector number |
2,1 |
| Feeding |
Sheet or roller as request. |
| Tools |
Cutting knifex1, Puncher x3,Draw penx1 |
cutting for leather,
cutting for fabric,
cutting for shoes,
cutting for bags,
cutting for furniture,
cutting for gasket,
cutting for soft toys.
