Application

Foam inserts as usual with the product shapes and put into the case/box which is normally used for protection for fragile products, such as electricity products, bottle packages, comestic products, car parts..etc.

Thick and high density EPE foam can be waterproof, and shockproof, so EPE foam inserts is widely used for packages.

Up to 60mm, 80mm, 100 mm heavy thickness of EPE foam sheets, with size 1400x810mm for foam inserts die cutting, it will need heavy pressure up to 80 tons, 100 tons for choice.

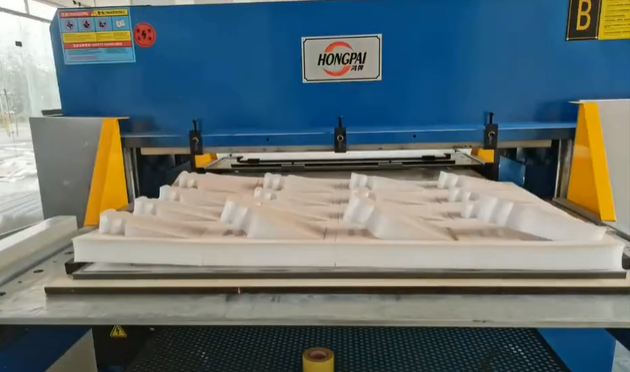

The Foam insert die cutting machine in the video is model HG-B100T, with double side auto sliding table feeding for easy working. The table can hold the thick foam tray or foam boards, after cutting, also steady for picking up.

The foam insert die cutting machine can be one side for one worker working, also it can be installed with two tables as two working positions if large quantity requirements.

More about machine details:
https://www.hgcuttingsystems.com/?HGB%2FV-Double-Sides-SemiAuto-Cutting-Press-category237.html

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	1400x810mm, 1400x710mm, 1600x810mm as request.
Motor	4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting

Application

Wine bottle Insert Foam Tray Die Cutting Machine
