※Customization※

Under promotion: Fixed Robot arm

Model:HG-JX03 ROBOT ARM

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Features Options Specifications Industries

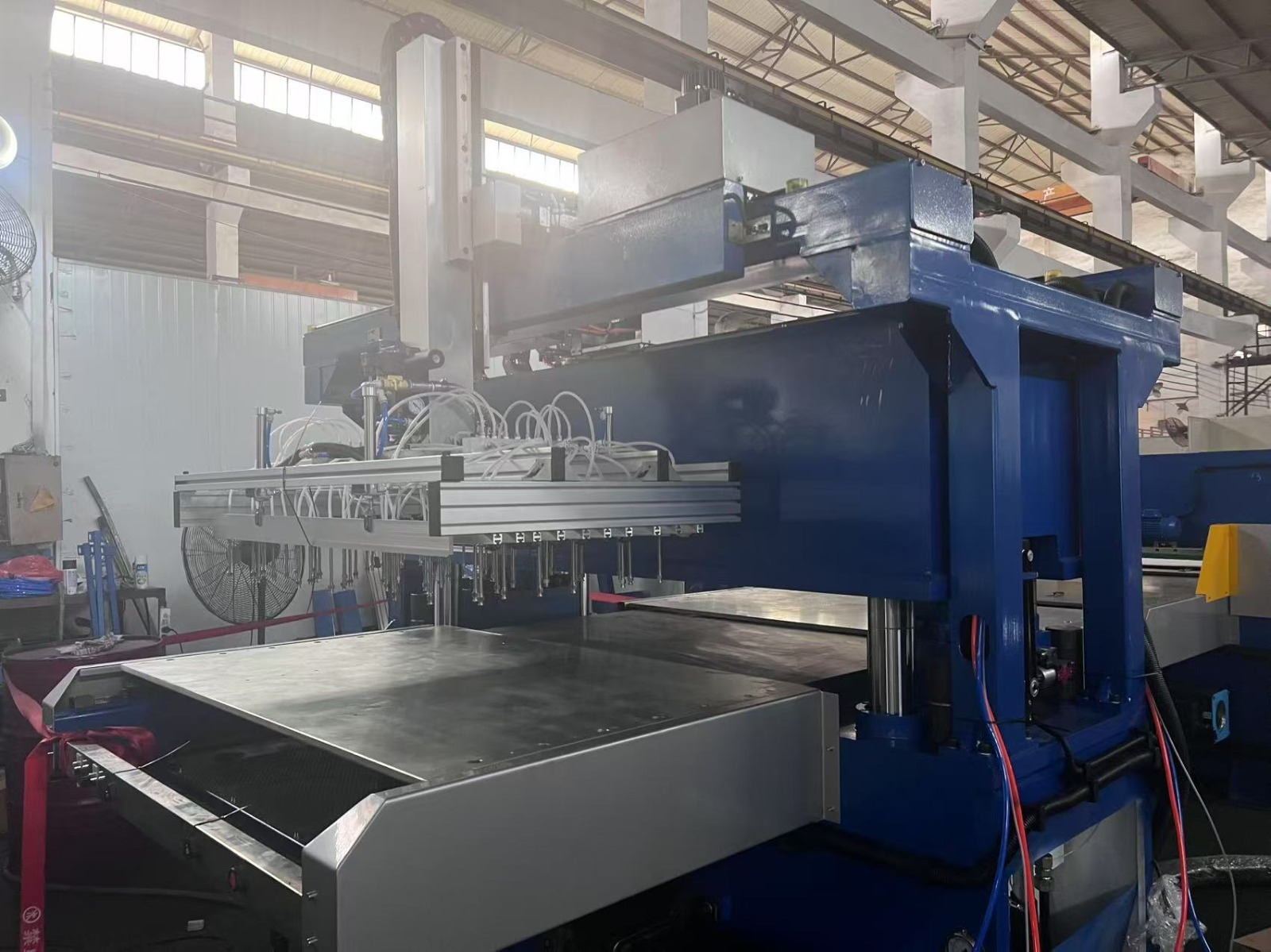

The same machine working in Customer's factory: 25/3/2025
Click to reach promotion page:
Under promotion with Cutting Machine

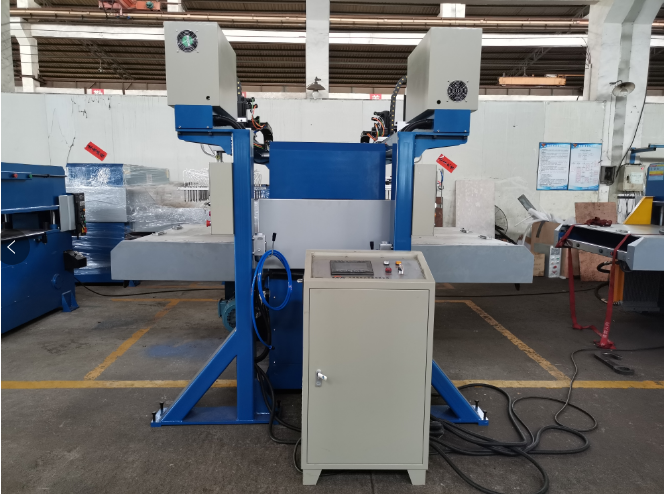

Left: New designed Double sides, with fixed robot arm.
Right: Old designed double sides, with Seperated, movable,seperated electric box robotic arm.

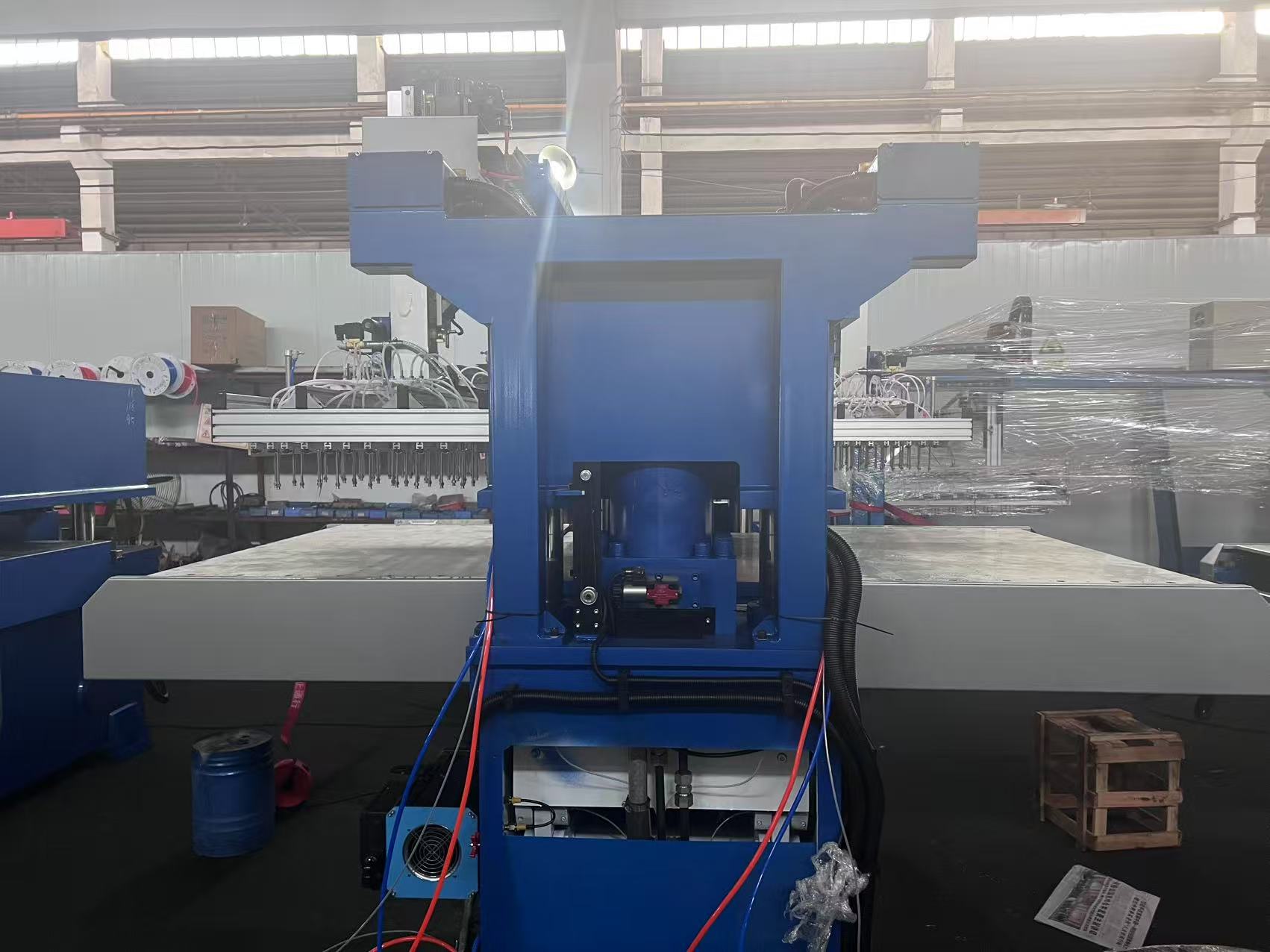

The new designed robot arm is fixed and installed to the cutting press. It can be single side, as well two sides working together.

Advantages: It solved the key problems of the old robot arm.
A. Takes less space.
B. Easy to install. The whole machine with robot arm can be installed by one step.
C. Save the shipping cost. Only 1x20 feet container can be loaded to ship to export.
D. Can add after a while. We can design the frame to the cutting machine, whenever you want to add the robot arm.
E. Single side or double side for choose. To use single side first, later to add the other side, is also awaible.
F. Saving energy. Servo motor with hydraulic system. Yes, we only design for servo hydraulic model.
G. Including standard of two conveyor belts to place the cutting pieces.
H. Only Consumes 3 kW/h of electricity (Some others consumes 10 KW/hour)
I. Servo motor, intelligent control, no cutting no consumes.
J. Fully steady, No vibration when cutting.
K. No need extra water cooling, either extra vaccum pump.

Disavatages: The fixed robot arm can not be added to the old cutting machine, which is without the robot arm frame.

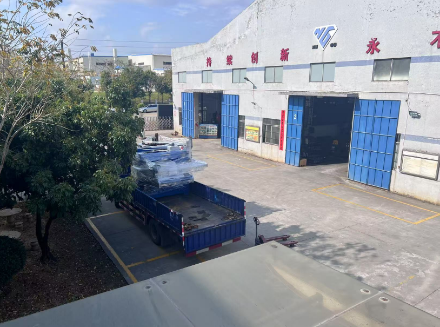

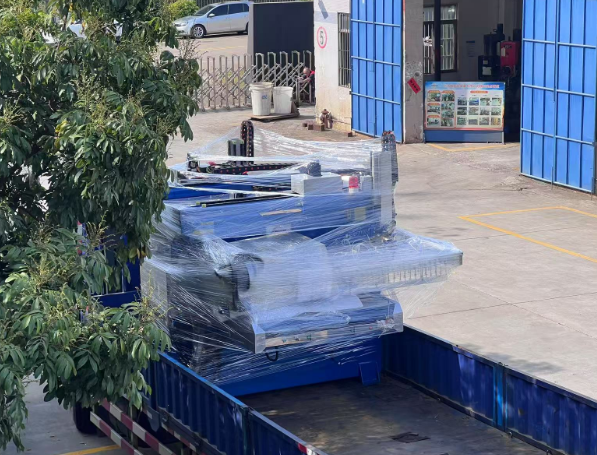

Easy shipment:

Testing and Working vdieo:

Cutting force	160 tons, 120 tons, servo motor
Cutting area	1400x810mm
Motor	15KW, 12KW
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting
