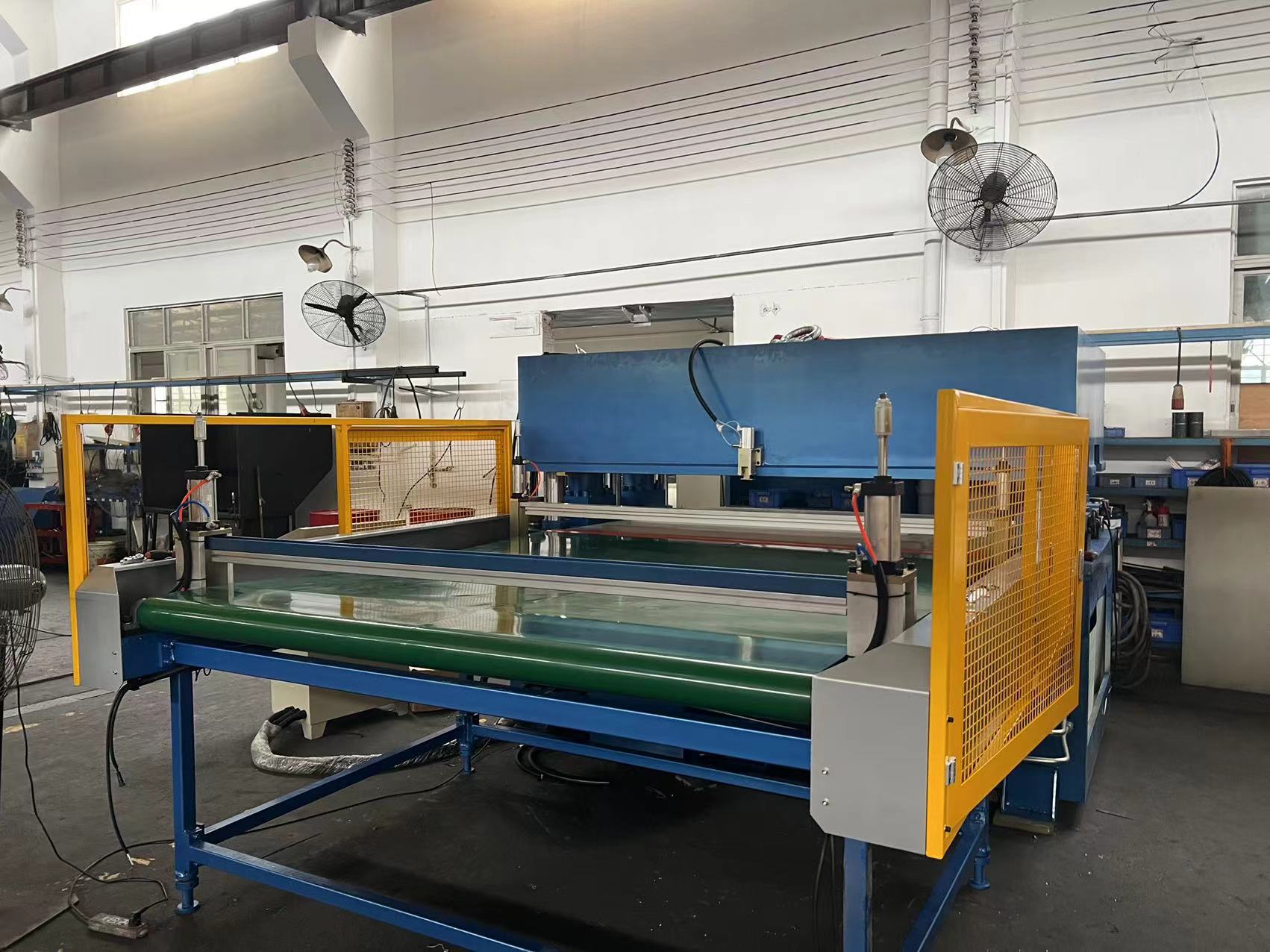

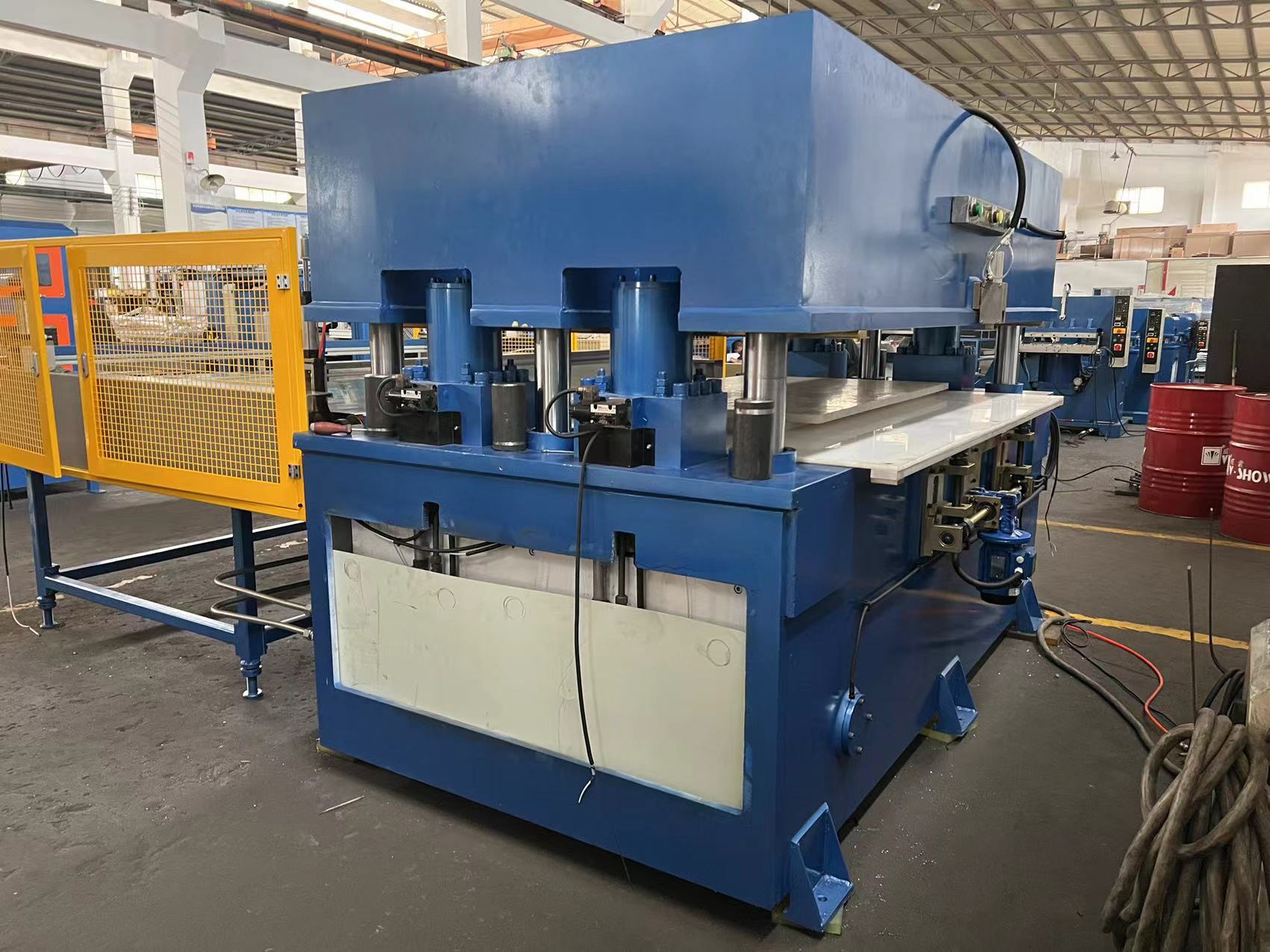

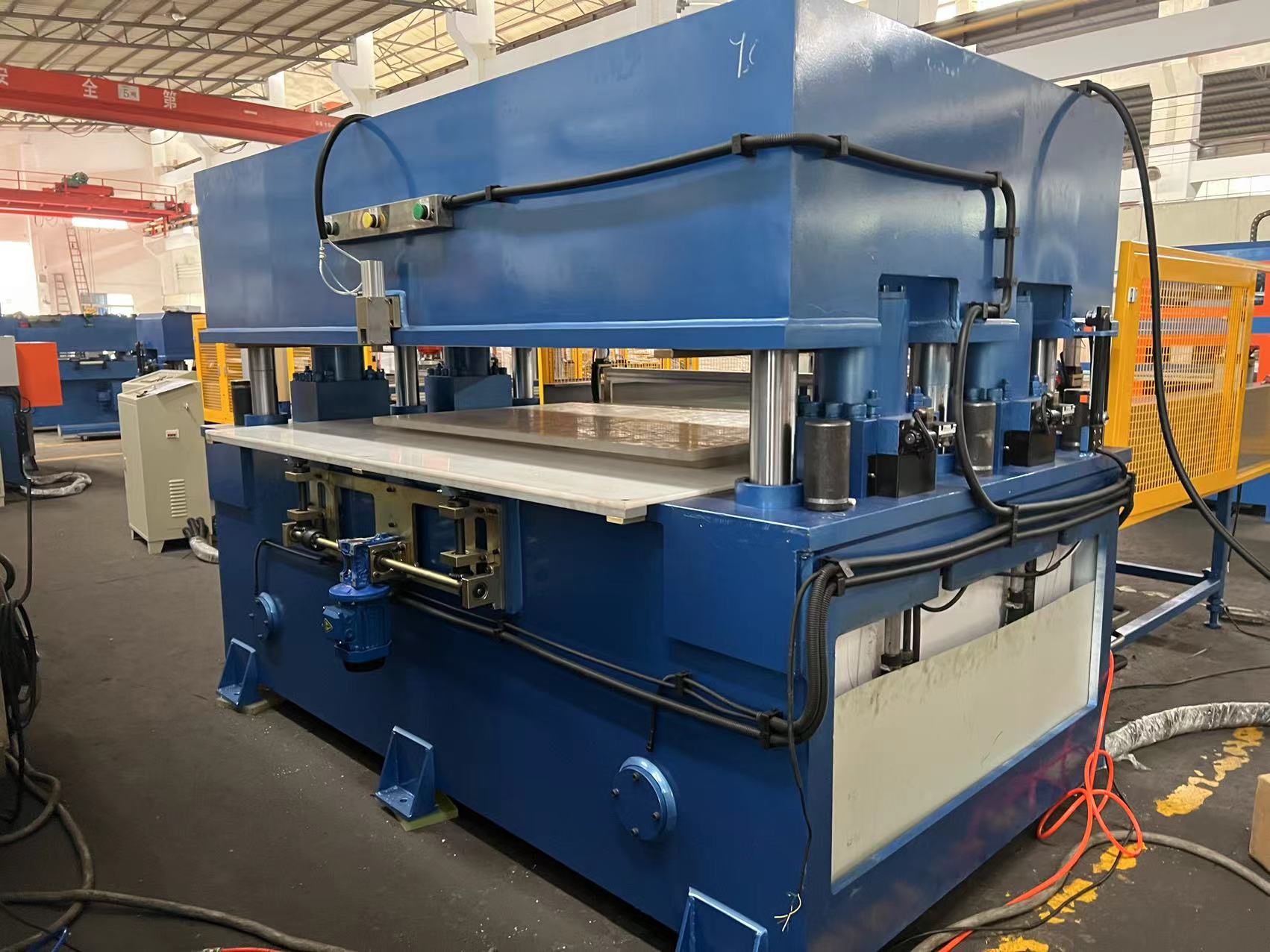

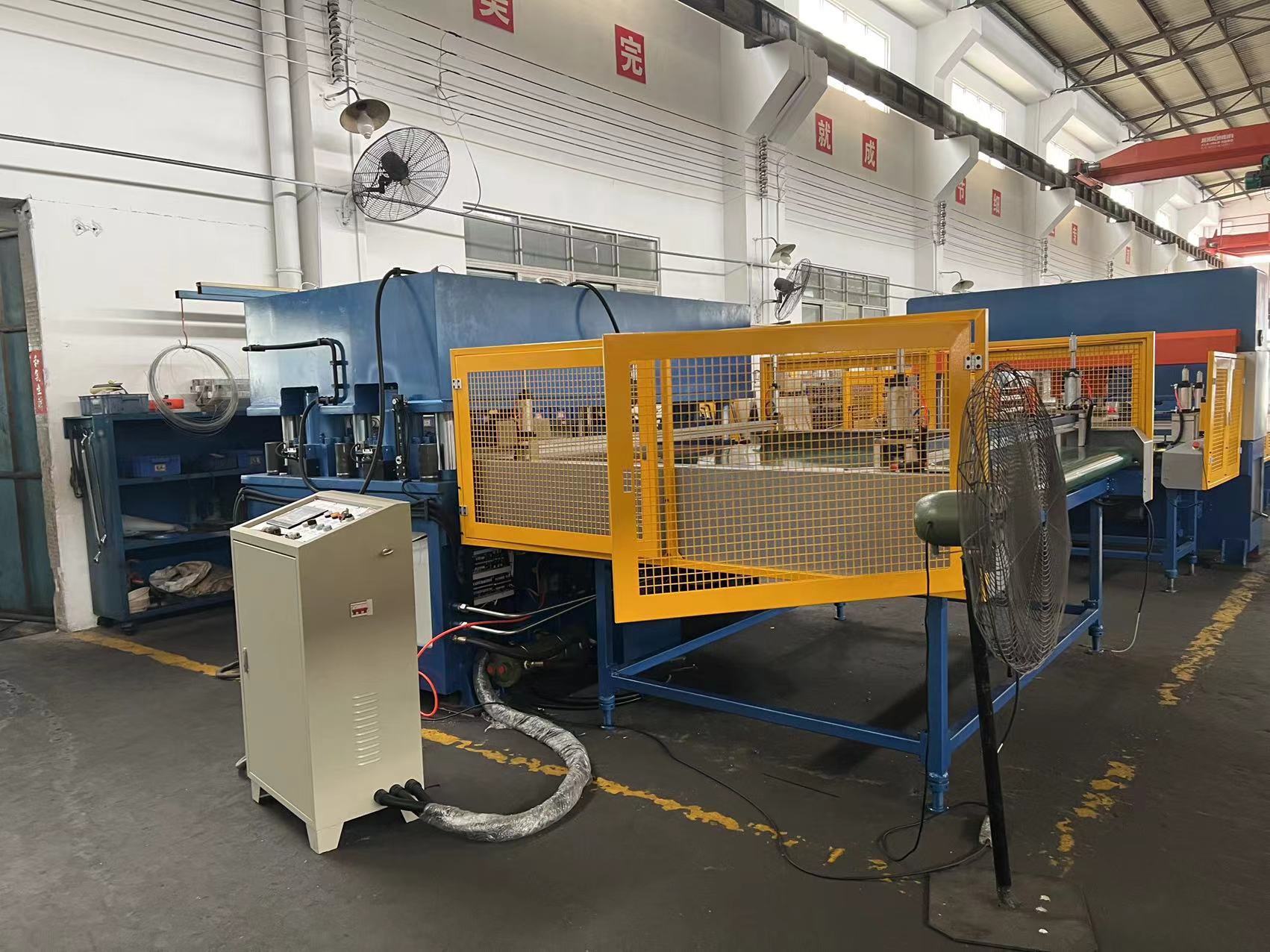

2150x1530mm Single side Belt feeding Auto Cutting Machine/Customized to the US

Model:HG-B150T- 6 column 4 cylinder type

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

6-column 4cylinder typeSingle side Belt feeding Auto Cutting Machine/Customized
(Normal 4-column 2-cylinder type)

1. With keep pressing function.

2.With light guards

3.Working press button at the end of feeding table, as well two on the machine cutting head.

4.Urgent stop buttons at the end of the table, one urgent button on the machine cutting head.

5. With PLC, touch screen

6. Daylight 12" (300mm), Stroke 7"(180mm).

7.Beam and base are platinum true, by 6-column 4cylinder auto connected rod for balance.

8.Water cooling

9. Pad-shifter
10. 150 tons, 2150x1530mm working area.
11. Single side auto feeding belt table.

Cutting force	B150T
Cutting area	2150x1530mm
Motor	11KW
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	300mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting
