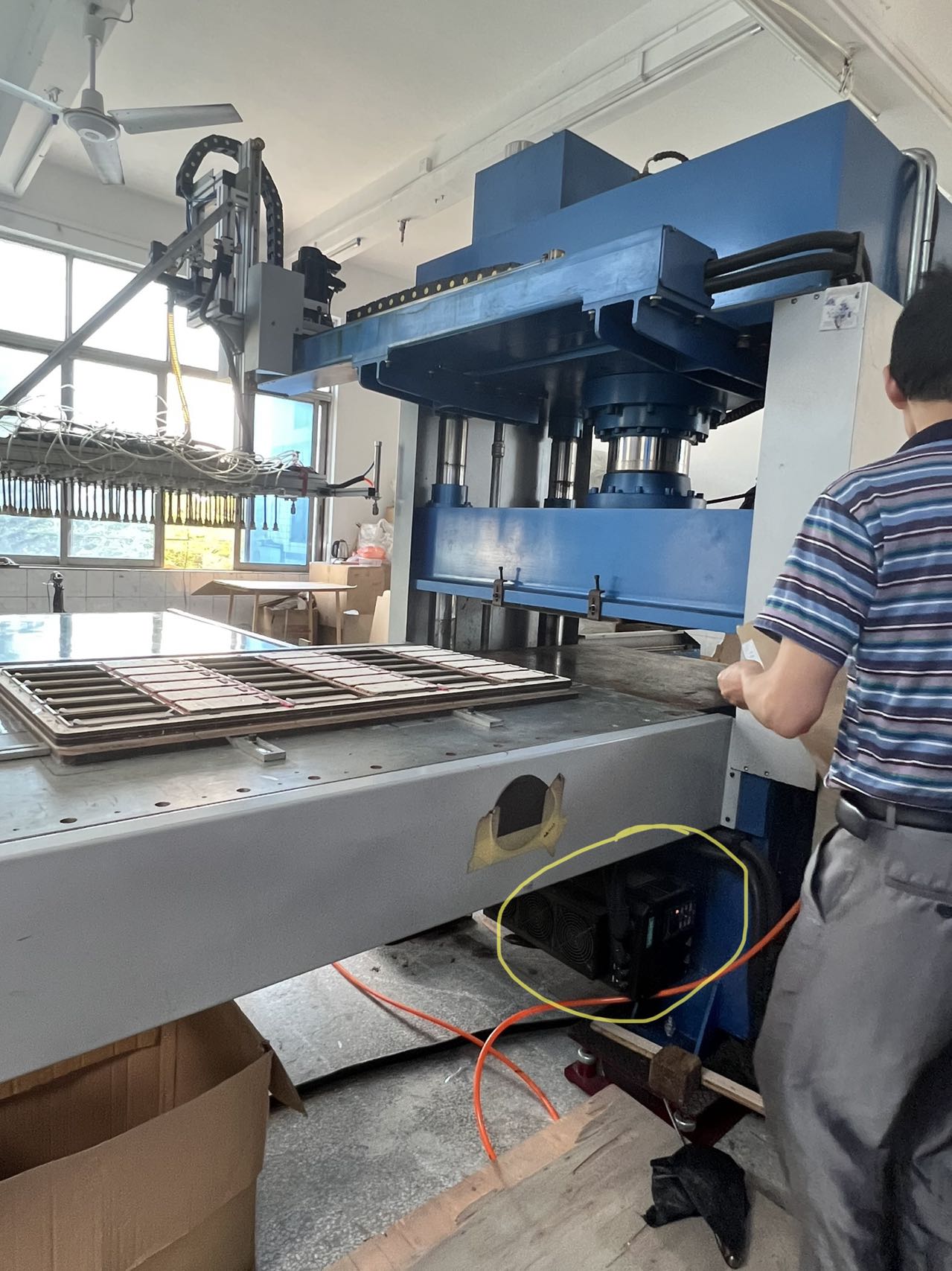

Not only the servo feeding table, Servo Hydraulic cutting machine is adapted servo driving working together with hydraulic system to start the cutting motion.There are lots of benefits by servo hydraulic:
1/First of all, servo hydraulic motor replaced the asynchronous motor, will not be active when cutting, so it saves lots of power, around 40%!
2/Servo hydraulic is fast active.
3/More precise die cutting.
4/Cutting process is flexible.
5/Low noise.
6/ Cutting process more smoothly.
7/Cutting Speed adjusted, whole cutting process can be 4 seconds one cycle.
8/ Used in plastic die cutting, packing foam die cutting.
Cutting force
50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area
1400x810mm, 1400x710mm, 1600x810mm as request.
Motor
4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke
max 180mm
Feeding type
Feeding tables; Stacking feeding table; Belt though feeding; belt-clip feeding.
Open
50-230mm
Control system
Fatek PLC controlled
Table feeding speed
Adjustment
Working tables
single table, double tables
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
3000-100000kgs
Feeding materials
Sheets, with limit in feeding length
Cutting Thickness
0.1mm-90mm
Die Setting
In touch screen, auto setting
Cooling
Fan, water recycle
Cutting Head Height
Adjustment
Color
Blue standard, or as request
Counting
Auto counting
