Application

Scrubbing sponge cutting machine can die cut different shape of sponge for kitchen cleaning, body cleaning,shoe polish sponge..with thickness of 90 mm.

Sponge cutting machine or named die cutting press, beam cutting press, precision cutting machine, in this page is manual type, with added table to feed by hand. If you would like auto-feeding with belt and auto cutting system, just tell us.

Same as honggang machine, the scrubbing sponge with pad die cutting machine is precision four column auto balance structure, which is most popular and the newest structure for hyraulic cutting machine which has longlife, steady cutting, straight cutting line, and flexible running features.

Honggang has been focused on precision cutting press field for over 10 years and was built on it. In addition, Honggang cutting machine co.,ltd is the only factory, only manufacturing large beam fixed head cutting machine in China market, while others will focus more on small machine type. We control all steel parts making, adopt world wide parts to confirm the machine quality.

In safety, double hands operation of pressing the bottons to work. Infarared ray or shield can be as request.

And as you can see, we need a worker at front of machine to detach the sponge pieces after cutting. It is easy to detach when the cutting force and cutting depth is enough.

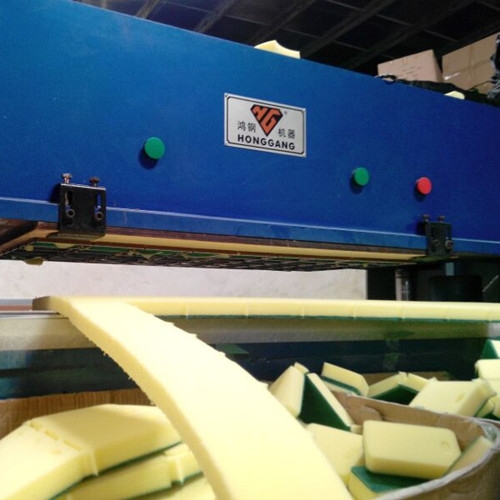

For reference, 50 tons in image showing.

manual type sponge cutting press

Cutting force	25T, 30T,40T, 50T, 60T, 80T, 100T
Cutting area	610x1220mm, 810x1400mm, 610x1600mm
Cutting Plate	610x1220mm, 810x1400mm, 610x1600mm
Model	HG-B30T, HG-B40T, HG-B50T, HG-B60T, HG-B80T, HG-B100T
Motor	2.2kw, 4kw,5.5kw,7.5kw
Stroke	50-240mm
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	1900kg, 2000kg, 2500kg,2400kg,2900kg,2800kg,1600kg,1500kg
Gross weight	1950kg, 2050kg, 2550kg, 2450kg, 2950kg, 4050kg
Dimension	2330x1320x1260mm,1950x1320x1260mm
CBM	4.26cbm, 3.8cbm
