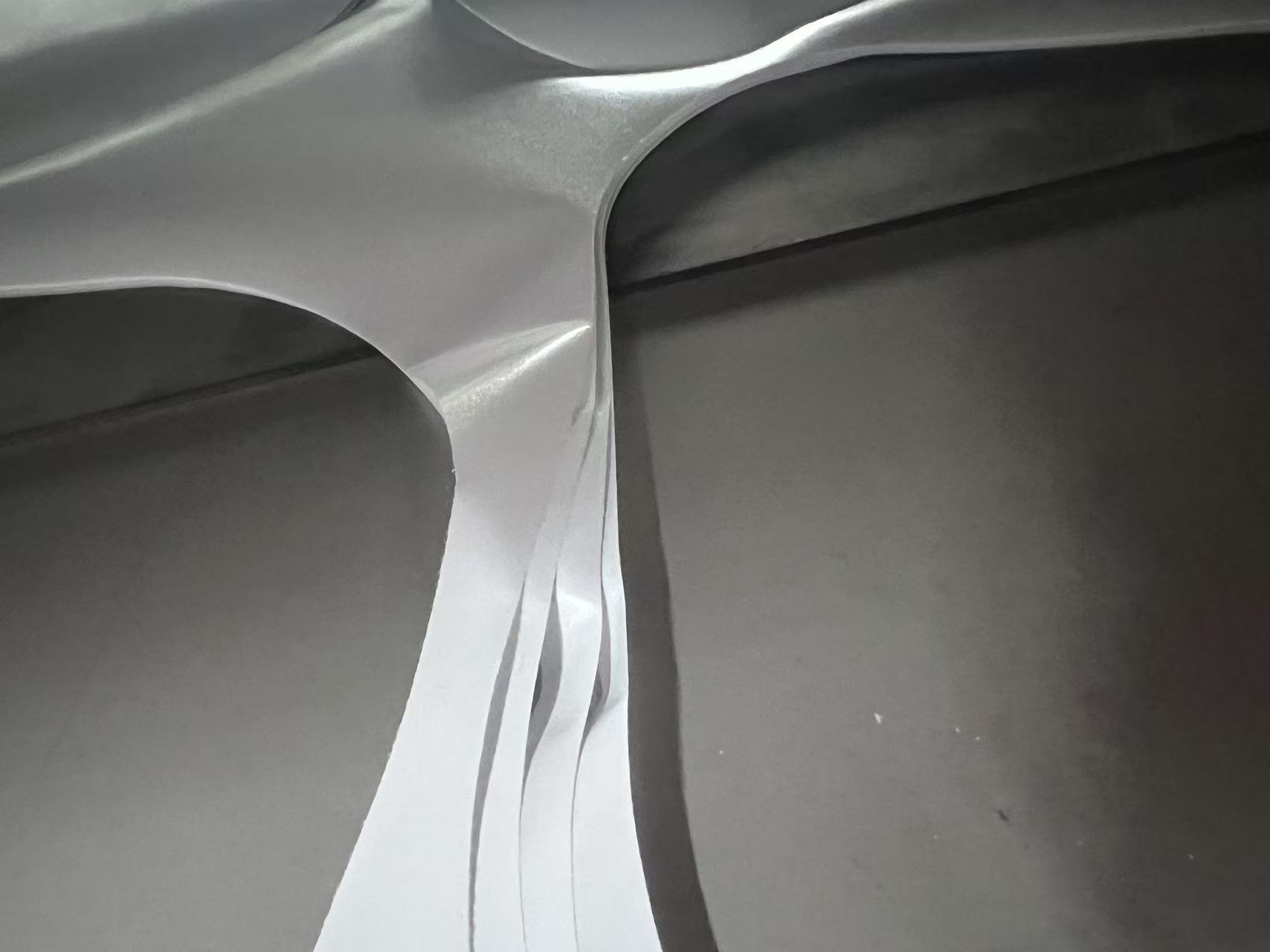

Even 1mm soft release paper films can be automatic feeding succefully by pinch roller! And you can see that it's 4 layer to feed by one time. But Not Only 4 layers! It can be 5 layers, 6 layers...

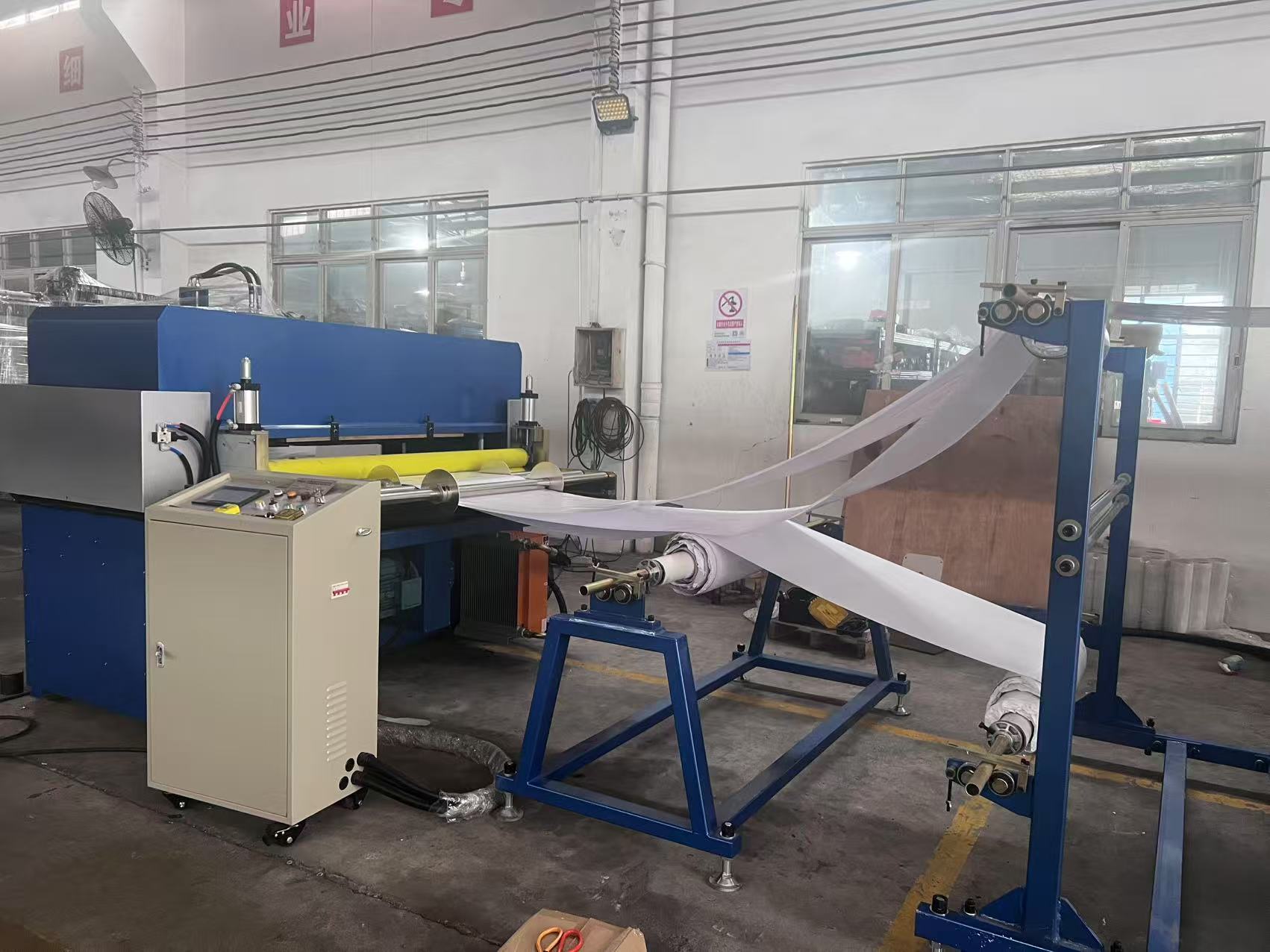

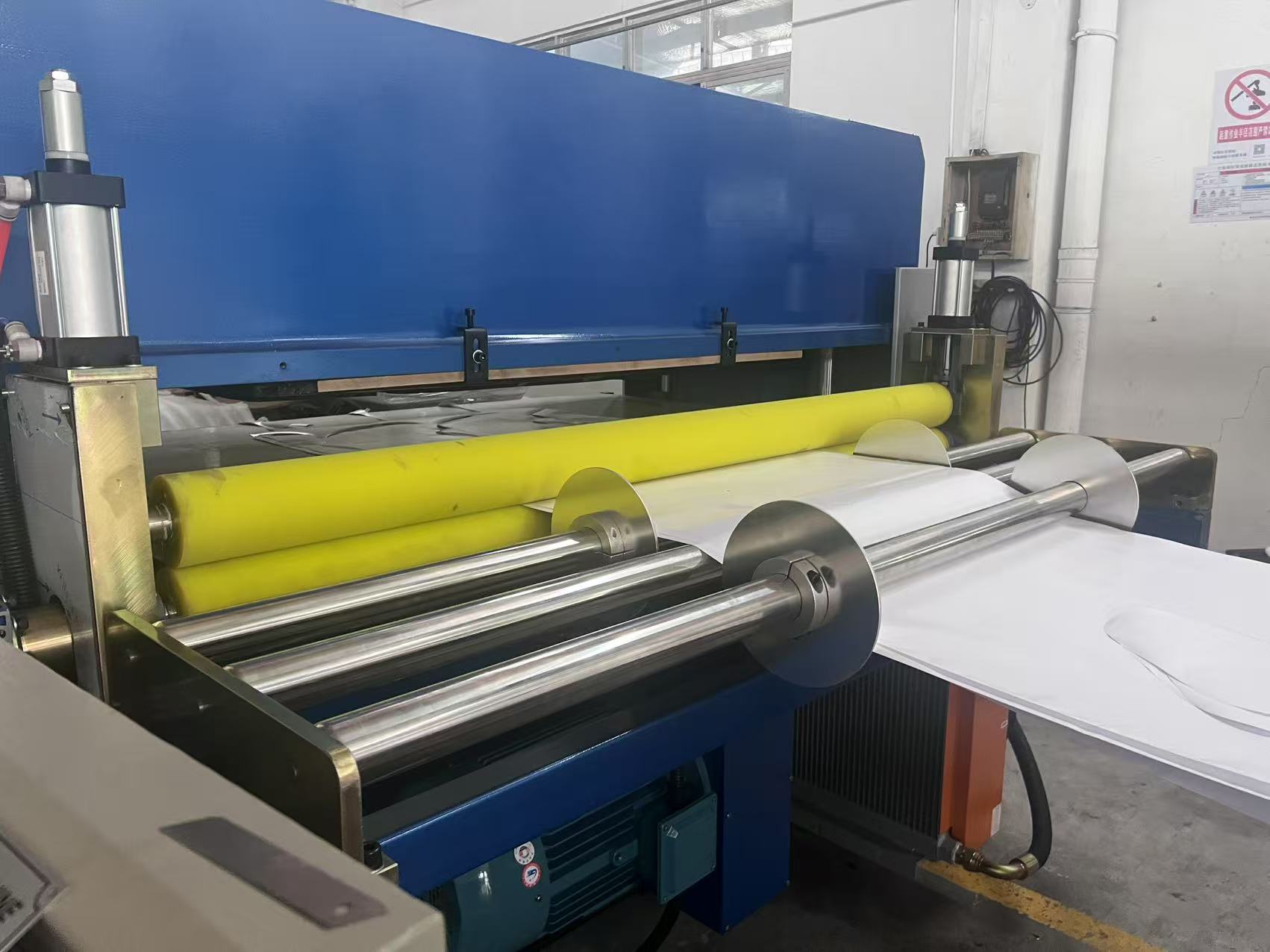

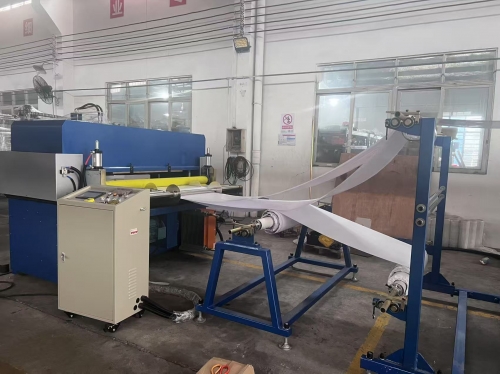

After unwind from the holders, the release paper film will go to the positioning tool before into the cutting area. When it's multilayers, it should be with the side positioning tool to keep the paper in the right position.
Then inside the cutting area, you also can see the cutting die is attached to the top. But which you can not see, the cutting die is with hard foam insert to push the cutting pieces out.

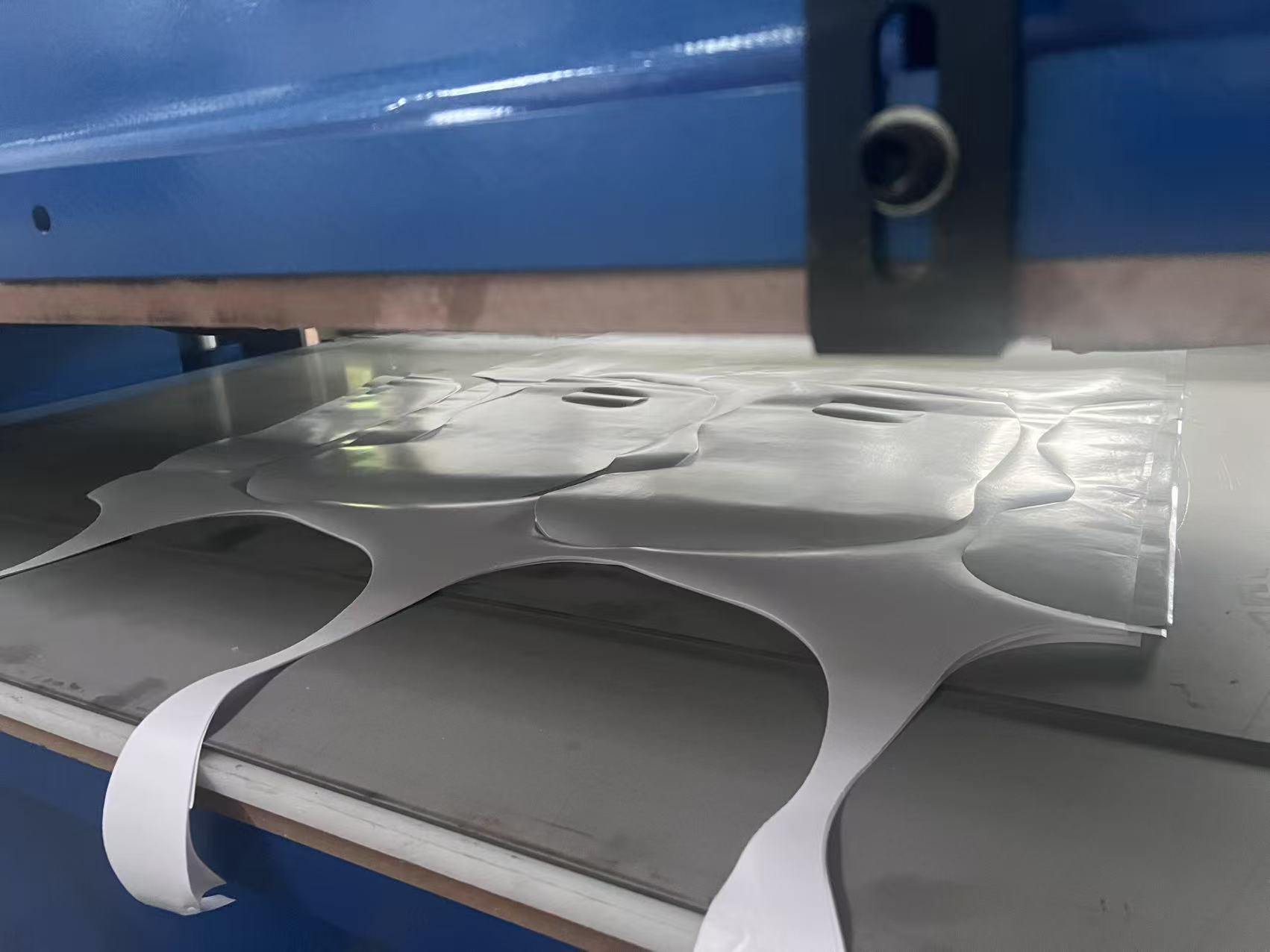

Then for more details, you also can see the release paper is cutting on the stainless steel board, instead the traditional PP board. When the release paper is thin and soft, to make sure of the cutting quality.
If you have the same release paper or similar paper to cut, please contact me for more.
1. Manual feeding table cutting machine,
Multilayer paper die cutting machine: HG-B30T, 1220x610mm.
More details pleasesee page:
2. Kiss cutting machine.
Kiss cutting machine is used for paper with foam together.
More details please this production page
Cutting force
50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area
1400x810mm, 1400x710mm, 1600x810mm as request.
Motor
4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke
max 180mm
Feeding type
Semi-auto feeding, by pressing the buttons to feed the feeding table
Open
50-230mm
Control system
Fatek PLC controlled
Table feeding speed
Adjustment
Working tables
single table, double tables
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
3000-100000kgs
Feeding materials
Sheets, with limit in feeding length
Cutting Thickness
0.1mm-90mm
Die Setting
In touch screen, auto setting
Cooling
Fan, water recycle
Cutting Head Height
Adjustment
Color
Blue standard, or as request
Counting
Auto counting
