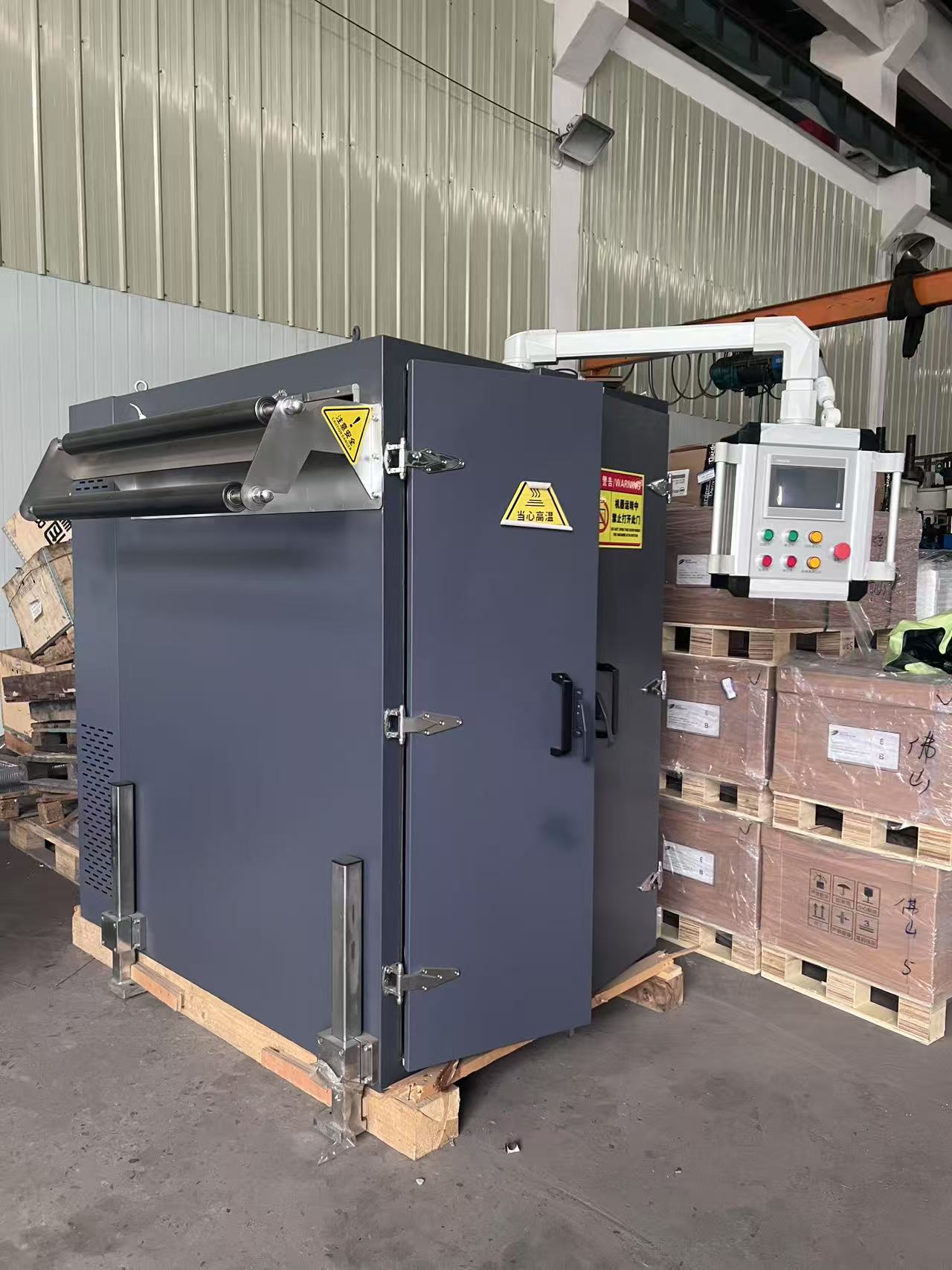

Preheater is widely used in before thermoforming to increase the thermoforming machine speed for PP materials or other thick plastic sheets, such as ABS vacuum forming.

The preheater for thermoforming machine can work together with the models of DM60, DM80

***Advantages of preheating sheet:
1.Sheet coming out of the preheating box;
2.Sheet temperature is very uniform;
3.Easy to shape;
4.Increase production capacity;
5.Increase hardness; Glossiness.

Specification
1	Dimension	L1300W:1600H:1600/2100mm
2	Rated voltage	380--420V 3P+N+E
3	Rated frequency	50HZ
4	Total Power	28KW
5	Electricity consumption per hour	6--8kw/h
6	Applicable sheet width	350--850mm
7	Applicable sheet thickness	0.2--1.5mm
8	Sheet preheating length	15 M
9	Preheating temperature	80--150℃
10

Component Brand
1	PLC	SIEMENS
2	Fan motor	ABB
3	Touch screen	MCGS
4	Temperature controller	OMRON
5	Drive motor	通力
6	Inverter	SIEMENS
7	Photoelectric switch	SIEMENS
8	Photoelectric	SICK/KEYENC
9	Low voltage electrical appliances	Schneide
10	Solid state relay	Taiwan TWGT
