application:
Used for die cutting shoes,bags,automotive interiors,toys,paper,leather,cloth,acrylic,rubber,plastic,crystal, and other non-metallic materials.
feature:

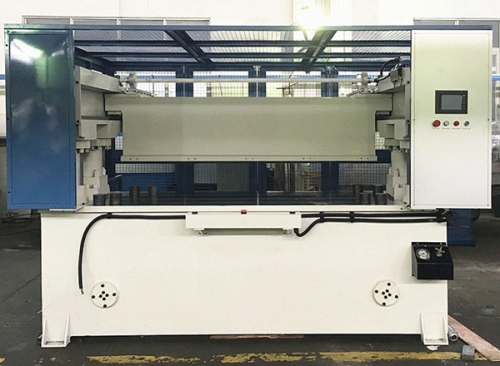

1.Special receding head cutting structure, allows no need for moving material and feeding table after every stroke to save time and confirm the cutting precision.
2.Motor drive controlled moving head runs faster, more precise, saving labor.
3.Easy to put on cutting die in large space after head receding.
4.Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal pressure in any working area.

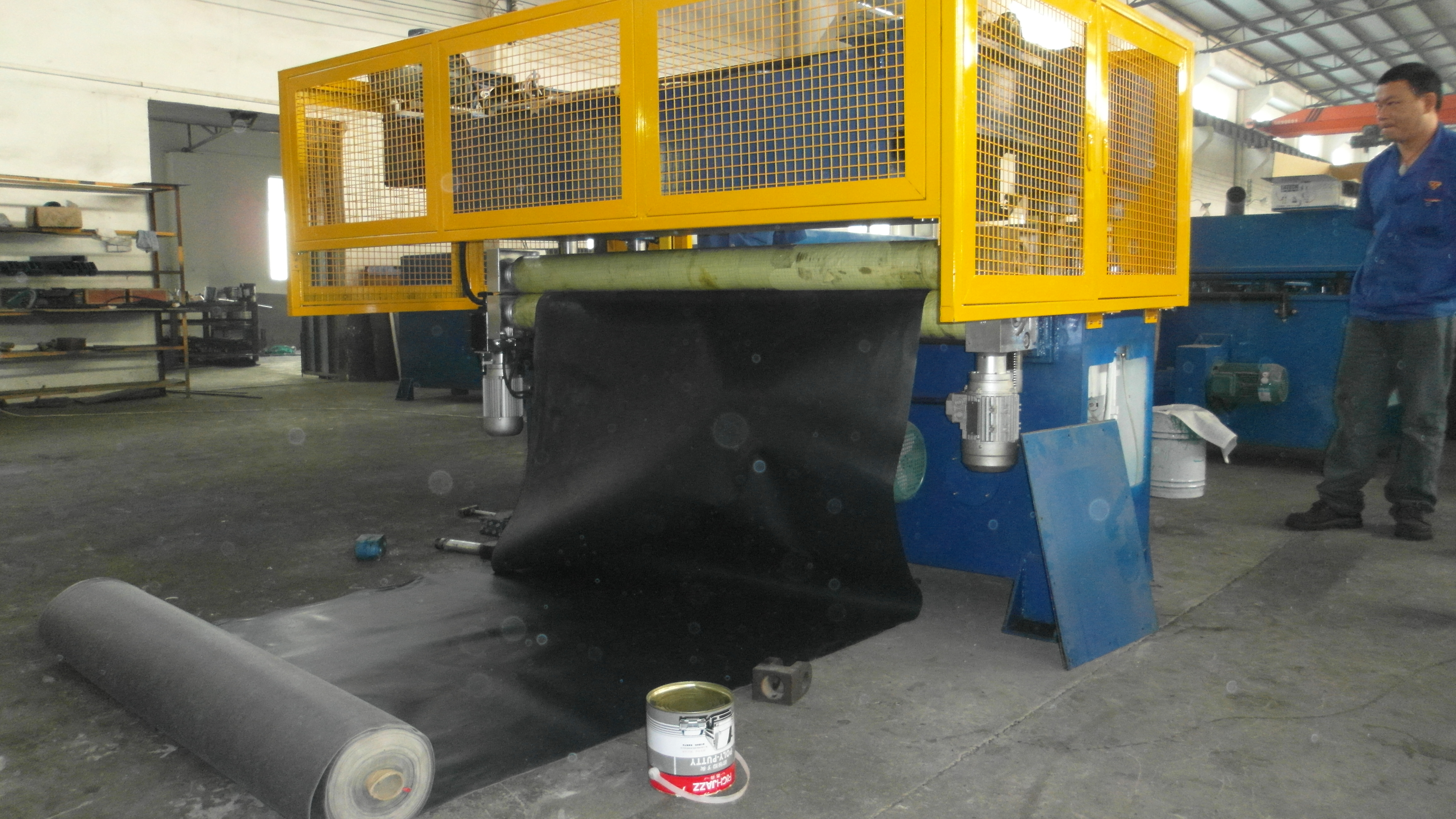

5.Suitable for rolls or sheets materials.
Optional:

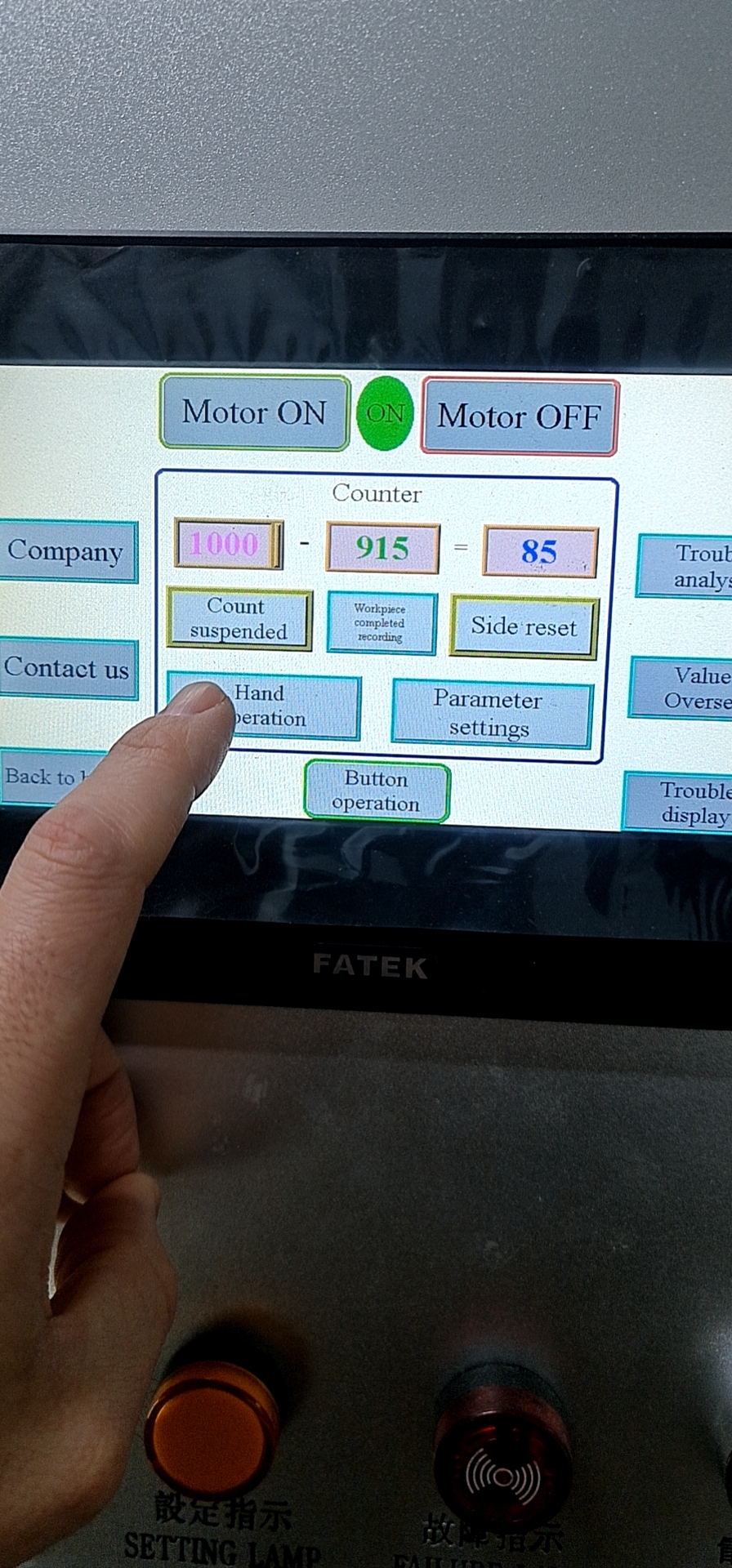

PLC control system
Feeding roller
Feeding longer table
Cutting force
40T, 50T, 60T
Cutting area
610x1600mm
Cutting Plate
610x1600mm
Model
HG-P40T, HG-P50T,HG-P60T
Motor
5kw, 6.5kw, 7.5kw
Stroke
50-200mm
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
Gross weight
Dimension
2400x2000x1300mm.2500x2000x1300mm
CBM
4.26cbm, 3.8cbm
Used for
die cutting shoes,
die cutting bags,
die cutting automotive interiors and toys etc.
