Precision Hydraulic Heating Creasing Cutting Machine

Model:HG-BS30T,HG-BS40T, HG-BS50T,HG-BS60T
Request Quote
This item has added to inquiry basket
Enter Inquiry Cart now.
This item was already in your inquiry basket
Please Check your Inquiry Cart .
Precision Hydraulic Heating Creasing Cutting Machine

FeaturesOptionsSpecificationsIndustries

Precision Hydraulic Heating Creasing Cutting Machine

application:
This hydraulic heating cutting machine is special used for creasing and cutting for gift,electric packaging plastic boxes,film.

Feature:

1
.Specially with heating board to make plastic film creasing to fold and die cutting.

2.Adopt high intensity lead frame and heavy building.

3.With long stroke for high cutting die and thick materials.

4.High safety performance with infrared rays avoids hurts when operators tired.

5.With function of slowing down when cutting head touching the cutting die confirms cutting precision.

6.Special four pillar stop structure prevents machine breaking the cutting die when out of control.

7.High efficiency of hydraulic system to low cost of electric power energy.

Specification:

Model Cutting force Dimension Cutting area  Motor Stroke  weight
HG-BS30T/48'' 30 Tons 1950*1370*1260mm 610*1220mm 2.2 kw 50-240mm 2000kg
HG-BS40T/48'' 40 Tons 1950*1370*1260mm 610*1220mm 4 kw 50-240mm 2500kg
HG-BS50T/48'' 50 Tons 1950*1370*1260mm 610*1220mm 4 kw 50-240mm 3500kg
HG-BS60T/48'' 60 Tons 1950*1370*1260mm 610*1220mm 5.5 kw 50-240mm 4000kg

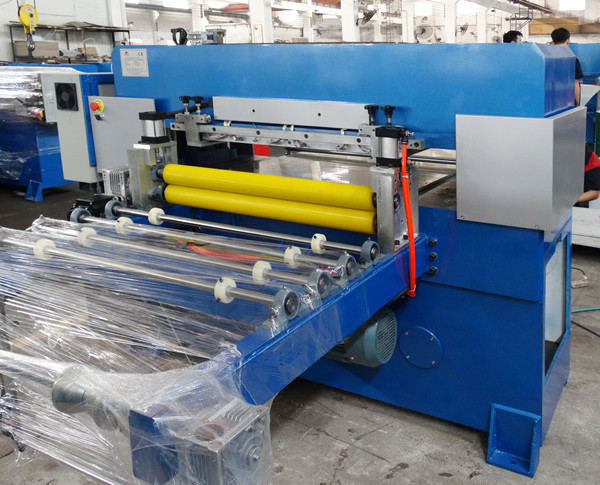

Precision hydraulic heating creasing cutting machine

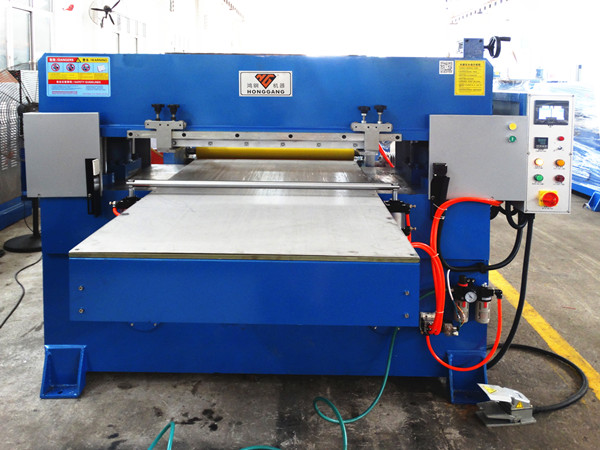

Precision hydraulic heating creasing cutting machine
