This is a rare usage but normal cutting application for the die cutting machine.
The video is showing cutting the PU rubber, 4mm disc, hard, fully automatic cutting from raw materials to crushing machine. For the same device, it can not only cut PU rubber disc, but also silicone rubber disc, nitrile rubber disc, solid seal gasket disc, rubber pads, can be cut at the same die cutting machine.
From the video, we can see that the whole device including:
1) Motor-feeding holder and roller to auto release the heavy PU rubber rolls
2) Full belt conveyor feeding.

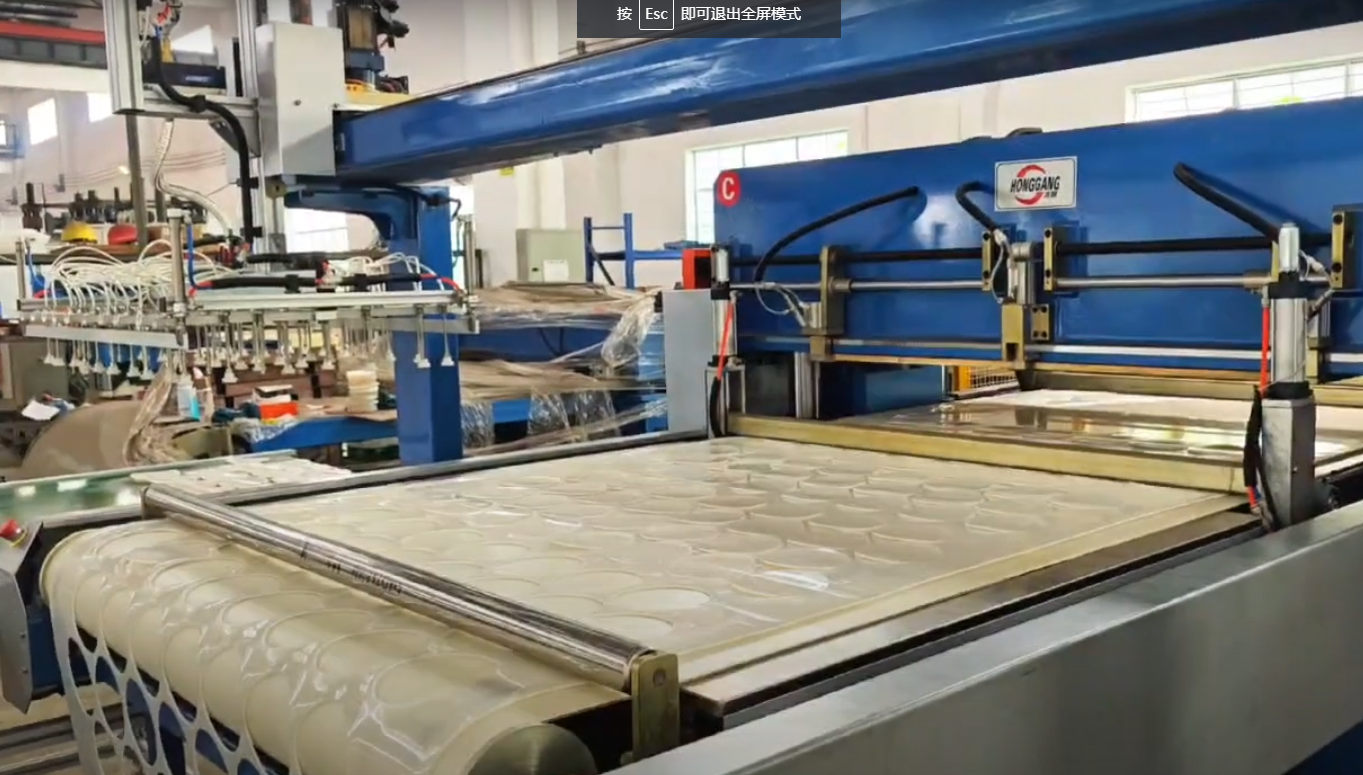

3) Cutting machine body, cutting area, the conveyor through the whole cutting area to convey in case to conveying out the cutting pieces.
4) Out-feeding part of conveyor

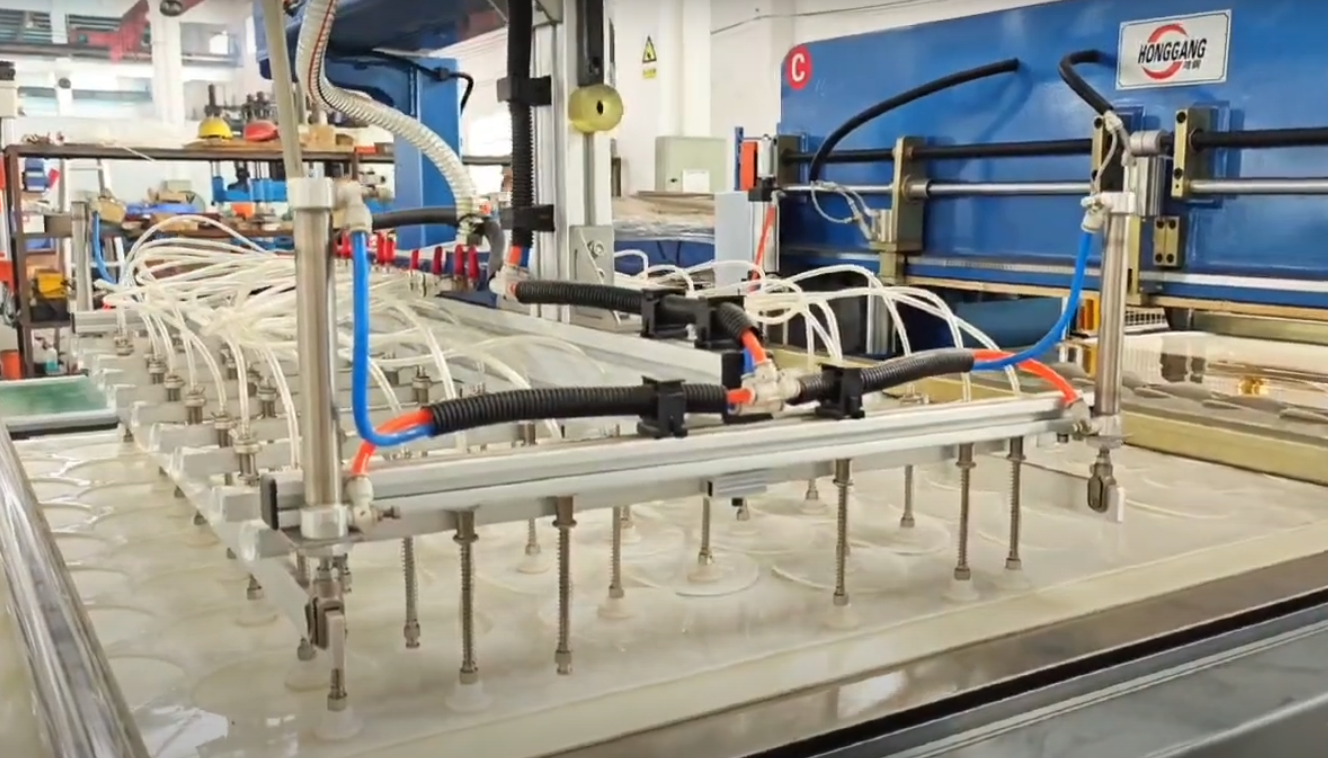

5) Robot arm to pickup, by robot arm to pickup the cutting pieces, is standard in our factory.

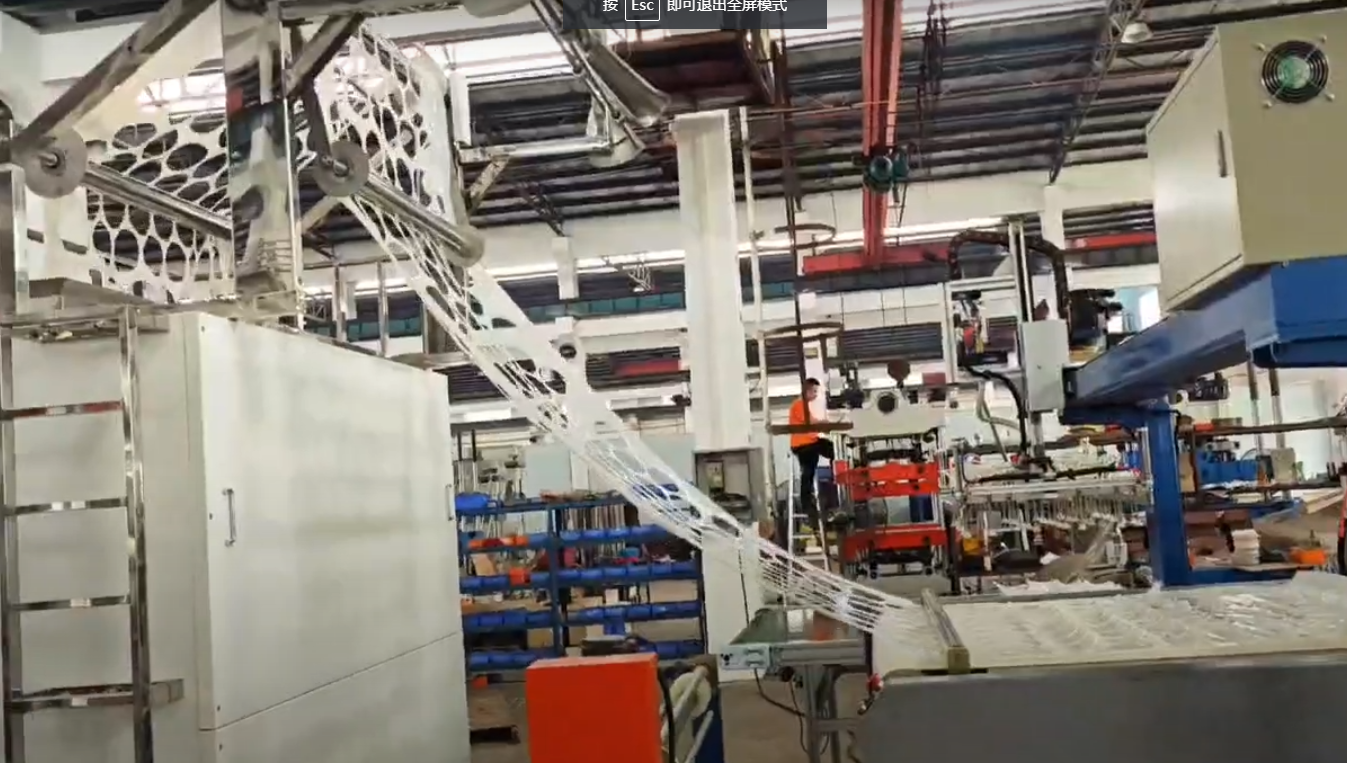

6) Wasting running
7) Crushing machine for the wastings.
Cutting Pressure
60T, 80T, 100T, 150T, 200T, 300T
Cutting Area
1400x810mm, 1400x910mm, 1600x810mm, 1600x1000mm
Automatic
Fully Automatic, no need human feeding
Control System
PLC
Feeding Type
Full Belt Through the Cutting area and cut on belt; double-table with clip feeding
Materials Type
Boards, Rolls; mainly for Rolls
Material Thickness
1mm or above
Layers
Multi-layer or Single
Cooling
Electric fan, water recycle
Machine structure
4-column, 2-cylinder, with cutting position limit funtion
Cutting Process
Cutting head with 2 stages of cutting speed
Die Setting
In Touch Screen, automatic
Cutting Head Height
Adjustment
Motor
5.5kw, 7.5kw, 11kw
