Cutting Machine

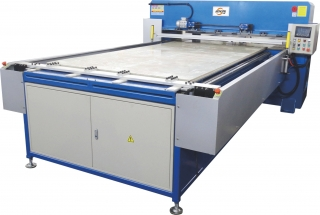

Manual Sliding Table Cutting Press with PLC

Model:HG-A/B

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Features Options Specifications Industries

Details in manual kind cutitng machine, please check this page.
Auto feeding table for reference

Compare to the normal manual type of cutting press machine, this type of manual sliding table, is still by hand to pull out and push the feeding table.
The difference is the feeding table.

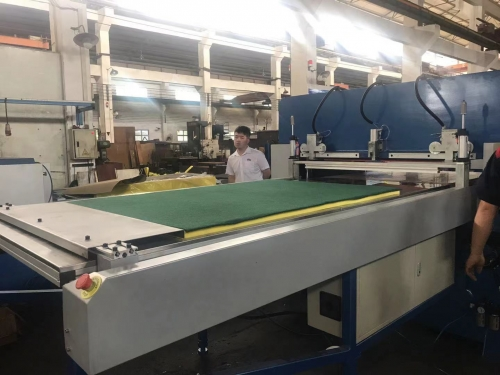

1) Feeding table.
Normal feeding table is made by plywood with wooden handle to push and pull. As well the wood table is not fixed on the holder under the table, but just put on the roller of the holder. It's simple and low cost, and enough for manual type working of most standard table size, such as standard working area 1220x610mm, 1600x610mm, even 1800x910mm...

The new type with metal table and metal holder with rubber roller. The table is fixed to the roller. Such changes have lots benefits, when the table won't move out too much from the cutting area. As well, when it's large table, it's much easier to handle, to push and to pull, also convinient for pick up the cutting pieces afte cutting.

2) PLC controlled.
PLC installed to the manual type die cutting machine is not neccesary but as optional, but it can help to make the more precise cutting.

When normal manual sliding machine by limit switch to control the cutting depth and die setting, also simple. But when with PLC, the setting die process and cutting depth all can be controlled by PLC, just to input the cutting depth, more refined to find out the suitable cutting pressure, and protect the cutting knife.

3) Keep pressing buttons to work.
Though there is light sensor for protection, two hands to press the buttons will the cutting head down and finish the cutting is also neccesary for safety.

A. Feeding Part.

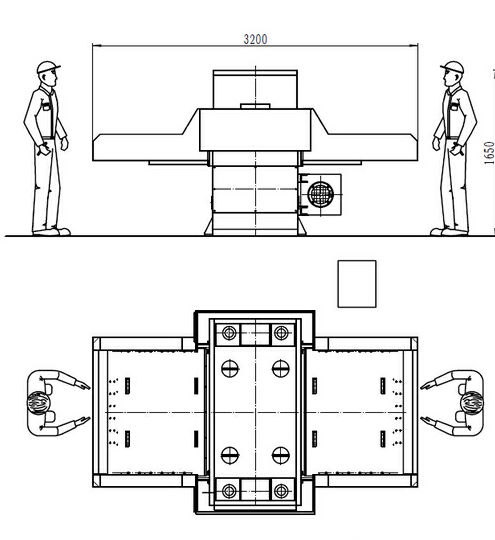

The feeding part of the cutting press, we have many solutions accordingly.

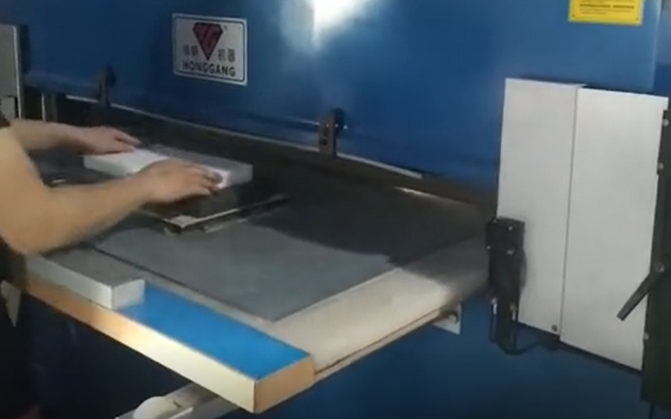

A.a. Manual feeding table. It means by hand to pull out and push in the wood table. And there is roller and holder at the bottom to make the movement easily.

A.b. Without the feeding table. The wood table can be removed and just by hand to put or pull the materials into the cutting area. It's not safe by this feeding method, but with the safety guards, and double hands working, it is also normal operation for some factories.

A.c. With semi-auto feeding table. By hand to press the button, the feeding table feeds into the cutting area, then cutting, then come out automaticly. It's one time cutting.

A.d. With auto section-feeding table. By hand to press the button, the long table holding the materials will be continous feeding and auto feeding. The feeding length and cutting times can be set. When finish the setting data, the table will be back to original position for pick up and the next time working.

A.e. With auto section feeding and pushing bar. The table to hold the materials is steady. What is moving, is the feeding bar. The bar will push the materials continously and cutting automaticly. Each time after finishing, the bar will push out the cutting pieces out of cutting area.

A. f. With belt-clip table feeding. Belt feeding as usual is with clip for rolls materials auto feeding together. Clip is to fix the rolled materials, and run togethe with the belt to feed the materials. As usual, there are two belts in both sides, which is easy for feeding in as well feeding out the cutting pieces.

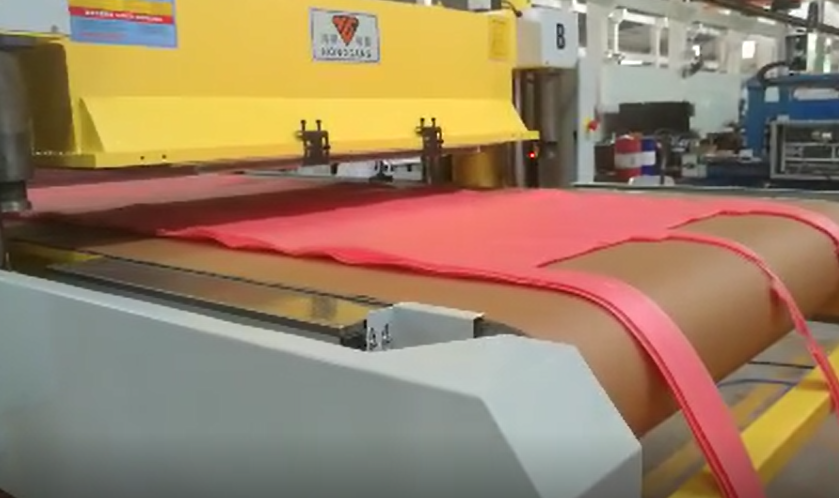

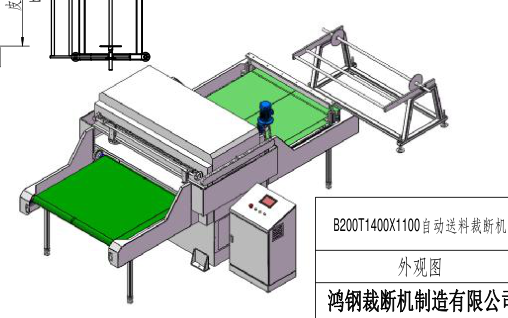

A. g. With full belt feeding. Full belt feeding is through the whole feeding parts and cutting area. It's cutting on belt. Such kind of cutting press is totally for thin materials, sheet materials, such as EPE foam rolls. With this kind of cut-on belt solution, the cutting machine always with position limit for cutting for protecting the belt.

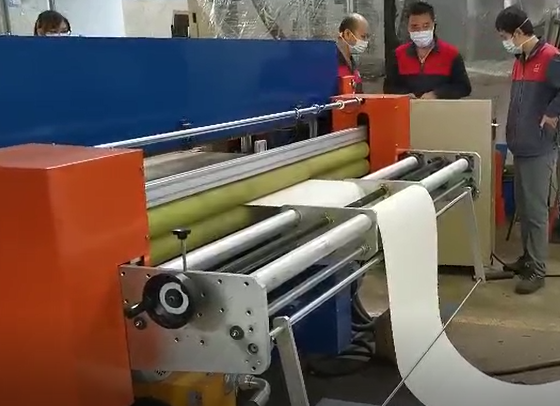

A.h. With roller feeding. Roller feeding as usual with belt-clip or belt feeding together for continous feeding thick materials. It adopts double roller top and bottom rolling the materials to realize the feeding.

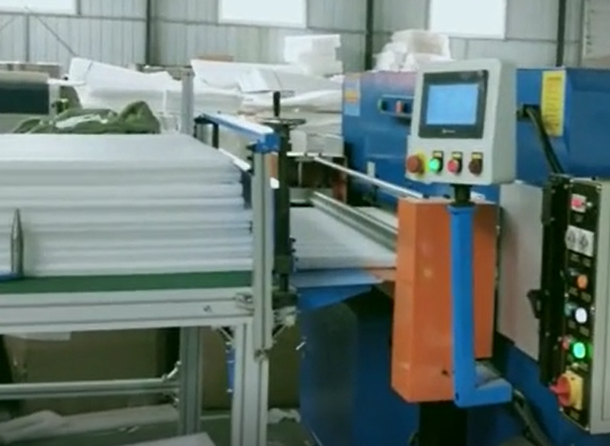

A. i. Staking Roller feeding with belt. When the roller feeding with the continous running belt, it comes out an excellent feeding solution of stacking and rolling feeding. Piles of EPE foam sheets stacking on a belt, with a stopper, then it becomes with stacking roller feeding system, saving labors in feeding.

Cutting force	30T,40T, 50T, 60 tons, 80 tons, 100 tons, 120 tons, 150 tons, 200 tons..
Cutting area	610x1220mm, 610x1600mm,etc as request.
Cutting Plate	610x1220mm, 610x1600mm,etc as request.
Model	HG-A30T,A40T,A50T, HG-B30T,B40T, B50T
Pressure Adjustment	Yes
Feeding type	By hand to drag or push the wood feeding table
Feeding materials	No limits
Cutting Thickness	0.1mm-90mm
Counting	Auto counting
Cooling	No
Motor	2.2kw,4kw
Stroke	50-240mm,50-160mm,50-230mm
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	1900kg-2800kg
Dimension	2330x1320x1260mm,1950x1320x1260mm
CBM	4.26cbm, 3.8cbm
