Application

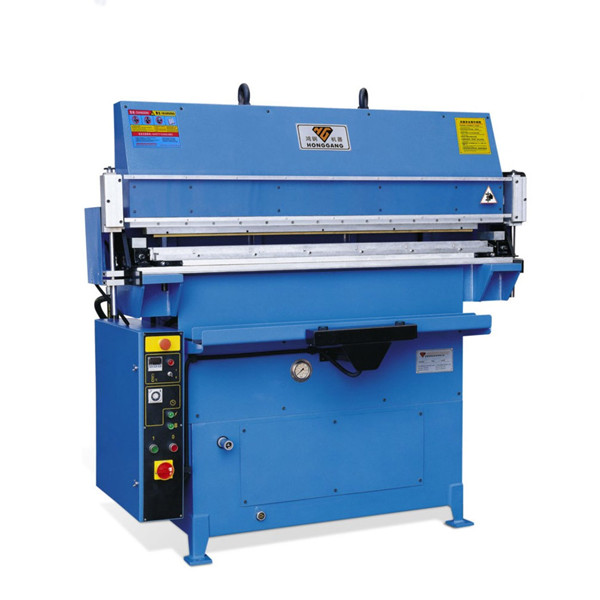

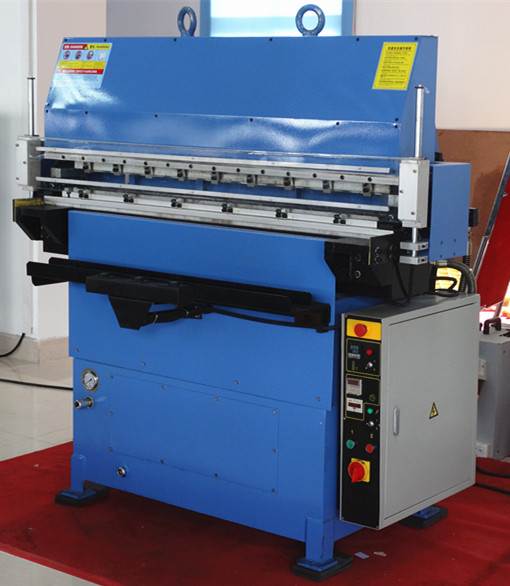

Hydraulic Belt Embossing Machine with plane working area, allows embossing different customized designed patterns by customized moulds.

Honggang belt embossing machine has two models, both are 120 tons, but different in working length of 1350mm and 1600mm. These two models are settled as standard type according to Honggang 20 years experience, as they can meet all belt embossing manufacture needs.

Application mateial: Leathe, EVA, PU, PVC,etc belt products.
Specification:
1) Hydraulic pressing+Heating Embossing, both function work together; and you can select only function when working.
2) Both pressure and temperature can be adjust according to production needs.
3)Pressing and heating time can be kept for 0.1 second to a few minutes.
4) Heating temperature can be controlled.
5) Double hand working,

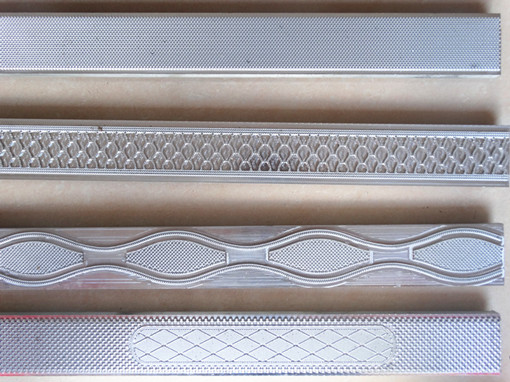

6) Allowing to emboss different patterns to one belt by a customized mould.
Data:

Model	HG-E120T/A
Max Pressure	120T
Motor	4KW
Heater	2.1kw
Working length	1350mm
Woking Width	80mm
Dimension	1660x940x1810mm
Weight	1610kg
Stroke	135mm
Temperature	0-130℃

Machine Video:https://www.youtube.com/watch?v=yQqCQRoRMvU&list=PLZTnvjIksKDiIeTfMcj7vUV3HAeoDPvXV
Honggang factory is the biggest factory to manufacture this kind of hydraulic embossing machine, including leather sheet embossing machine, leather belt embossing machine.

Please feel free to send us inquiry or advice to tina@hgcuttingsystems.com for more info.

Car Steering Cover Embossing Machine

Pressure	120tons
Motor	4kw
Length	1350mm
Width	40mm
Heater	2.1kw
Net weight	1610kg
Dimension	1660x940x1810mm

Application

HG-E120TA Leather Car Steering Cover Embossing Machine
