Application

Video:

Hydraulic die cutting press to cut foam sponge for kitchen cleaning, honggang factory has developed kinds of to meet the demands from different customers from different countries.

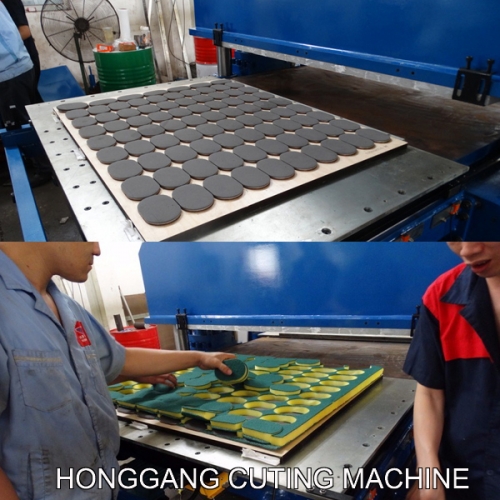

In picture, by automatic type cutting machine, to cut 1000x1000 mm of sponge sheet into 87 pieces of small products, which is round. This kind shape of sponge will not come out automaticly after cutting, then we cut a stretch cotton into cutting die and keep them. Then the products comes out easily.

Anyway, we can offer other kinds of sponge cutting press:
1) manual feeding type, from 30 tons to 120 tons, 610x1220mm to 1300x1100mm of working area
2) semi-automatic type from 50 tons to 200 tons. double side working tables.
3) Full automatic type with belt-feeding system(under developing)

At last to introduce our cutting system: hydraulic four-column precision cutting system
It is equiped with 4 columns, and double-cylinder with connect ing rod. which will keep steady when working.

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	1400x810mm, 1400x710mm, 1600x810mm as request.
Motor	4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting

Application

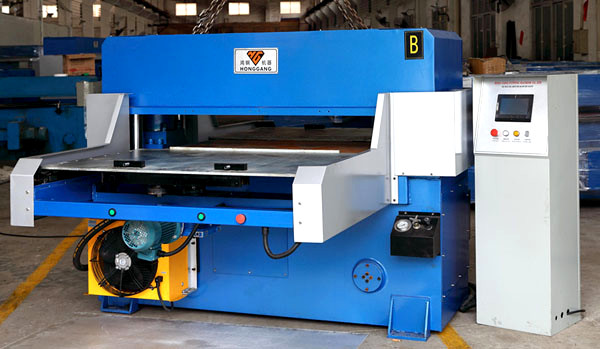

HG-B100T Single-Table Kitchen Sponge Die Cutting Press

FeaturesOptionsSpecificationsIndustries

Kitchen Sponge Die Cutting Press (semi-automatic type)

Features Options Specifications Industries
