Honggang F50T Fully Automatic Roll-Fed PP Film Die Cutting Machine

Model:Full Auto Rolls Feeding Cutting and Collecting Machine for PP film

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Features Options Specifications Industries

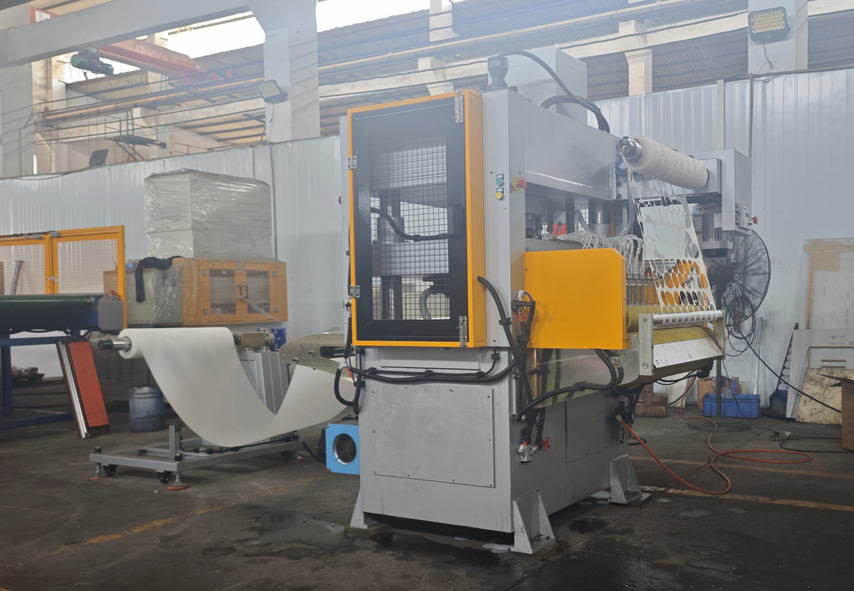

The Honggang F50T is a fully automatic die cutting machine engineered for high-efficiency processing of PP (polypropylene) film. It integrates automatic roll feeding, high-precision die cutting, automatic product stripping, and automatic scrap winding into a single, streamlined system, enabling continuous, unattended operation.

Key Specifications

Model	F50T
Cutting Area	800 x 800 mm
Material Handling	Automatic roll-to-roll feeding & winding
Operation	Fully automatic, no manual intervention required
Control System	PLC with touch screen interface for precise setting and adjustment of pressure, cutting depth, and feeding speed

Key Features & Advantages

Fully Integrated Automation: The F50T combines automatic material feeding, cutting, and product stripping into a seamless production line. This design eliminates the need for manual labor, significantly increasing production efficiency and reducing operational costs.
Automatic Product Ejection: Equipped with a suction nozzle system, the machine automatically pushes finished parts downward from the cutting station, ensuring a smooth and efficient material flow.
Precision Hydraulic System: Powered by a precise hydraulic drive and guided by a four-column structure, the machine delivers consistent, even cutting pressure across the entire 800x800mm area, ensuring clean and accurate cuts -5.
Programmable Logic Controller (PLC): The user-friendly PLC control with a touch screen allows operators to easily set and micro-adjust key parameters, guaranteeing high repeatability and quality for PP film processing -10.
Robust Construction: Designed for industrial environments, the machine provides a stable and durable platform for demanding production schedules.

Application

This machine is specifically designed for the high-volume, automated die cutting of PP film and similar non-metallic sheet materials, making it an ideal solution for the packaging, labeling, and flexible materials processing industries.

Cutting force	F80T
Cutting area	800x800mm
Motor	7.5kw
Stroke	max 180mm
Feeding type	Full auto feeding in rolls, single layer
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	4000KG
Feeding materials	Rolls
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan
Cutting Head Height	Adjustment
Color	White Blue standard, or as request
Counting	Auto counting

Industry Application Overview for PP Film Die Cutting

1. Background of PP Film Die Cutting Processing

Polypropylene (PP) film is widely used in packaging, electronics, new energy, and industrial applications due to its excellent physical and chemical properties. Its high transparency, strength, moisture resistance, chemical corrosion resistance, and good electrical insulation make it an ideal material for die cutting processing. However, the toughness and elongation of PP film present challenges for die cutting—requiring smooth, burr-free cuts while maintaining material strength.

2. Key Technical Considerations for PP Film Die Cutting

Material Suitability: PP film thickness typically ranges from 40 to 100μm. Films in the 60–80μm range achieve optimal die cutting performance, offering superior rigidity compared to 100μm PE film, with material consumption reduced by 20–30% per unit area.
Tool and Die Selection: For PP film die cutting, it is recommended to use specialized blades with a 70° cutting angle (e.g., SuperCut 70 series). This angle is specifically designed for films such as PP, PE, and PET to minimize burrs and uneven edges.
Advantages of Automated Die Cutting: Modern automated die cutting equipment, combined with high-precision vision positioning systems, enables continuous, high-speed cutting of PP film with positioning accuracy of up to ±0.02mm, significantly improving production efficiency and product consistency.

3. Major Application Fields for PP Film Die Cutting

Application Field	Specific Uses	Technical Requirements
Consumer Electronics	Mobile phone components, battery insulation sheets, LCD display flame-retardant interlayers	High precision, UL94 V-0 flame retardancy, halogen-free, environmentally friendly
New Energy Vehicles	Battery pack insulation, charging equipment insulation components	CTI ≥ 600, high hydrolysis resistance, VTM-0 flame retardancy
Home Appliances & 3C	Cable harness through-hole insulation, EMI shielding	Good mechanical properties, heat resistance
Packaging & Printing	Labels, food packaging, cosmetic box lamination	Smooth cuts, no paper dust or film rupture
Medical & Laboratory	Medical device insulation components, sample preparation filtration membranes	High cleanliness, low extractables, hydrophilic or hydrophobic treatment

4. Advantages of Honggang F50T in PP Film Die Cutting

The Honggang F50T fully automatic roll-fed die cutting machine, with its 800×800mm large cutting area, hydraulic precision four-column guide structure, and PLC intelligent control system, meets the stringent requirements of PP film die cutting for pressure uniformity and repeatable precision.

Equipped with automatic suction ejection and automatic scrap winding functions, the machine is suitable for:

Electronic Component Die Cutting: High-volume production of insulation and shielding sheets for mobile phones, laptops, and other electronic devices.
New Energy Component Processing: Continuous processing of battery insulation layers and flame-retardant PP film components for power batteries.
Packaging Material Processing: Automated cutting of labels, laminated boxes, and other PP film packaging products.

5. Material Selection Recommendations

For PP film die cutting, it is advisable to prioritize easy-die-cutting grade PP films—these films incorporate modifying additives such as acrylate polymers to maintain mechanical strength while reducing elongation at break, resulting in smoother, burr-free cuts. Additionally, attention should be paid to key indicators such as flame retardancy rating (e.g., UL94 VTM-0), environmental compliance (RoHS, halogen-free), and thickness tolerance.
