High precision conveyor belt hydraulic cutting machine

FeaturesOptionsSpecificationsIndustries

Product Description

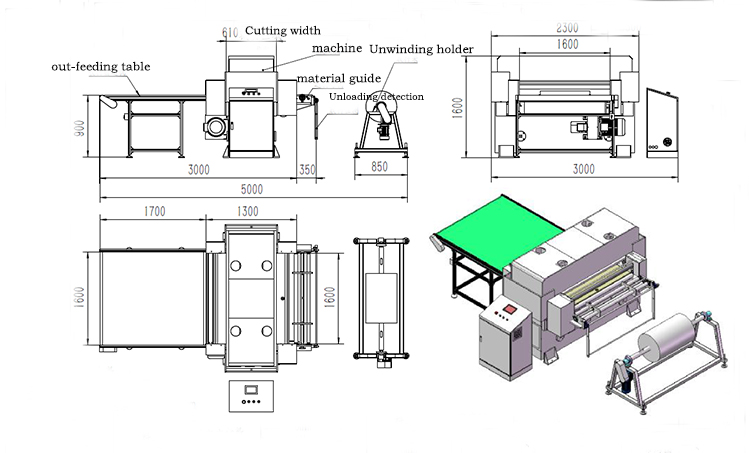

High precision conveyor belt hydraulic cutting machine is suitable for cutting conveyor belts, epe foam, eva foam and other coiled materials. The machine adopts the front and rear roller feeding method, the maximum feeding width is 1600mm, has a precision feeding system, and the error is within ±1mm. The cutting area is 1700*610mm. The specifications of the receiving conveyor are 1700*610mm, and the length can be customized according to the customers.

Parameter

Model

HG-B30T

Color

Blue or customized

Suitable for material

foam roll

Columns

Four-column

warranty period

1 year

place of origin

Guangdong,China

Machine type

Hydraulic cutting machine

Brand

Honggang

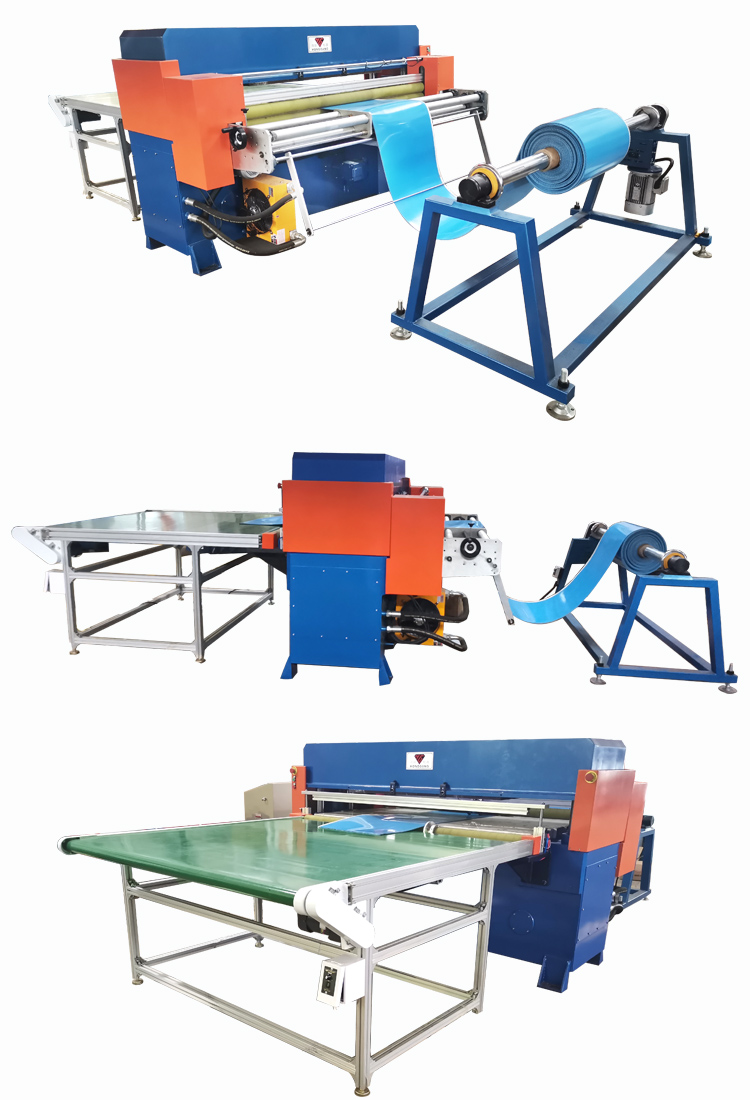

Machine Detail




Feature & advantage

1.Front and rear roller feeding, allows all cutting process without any labor.

2.Controlled by PLC(Programmable logic controller),with touching screen, to adjust working pressure,stroke,feeding speed easier,faster and more precise.

3.With a precision feeding system, and the error is within ±1mm, more precise.
