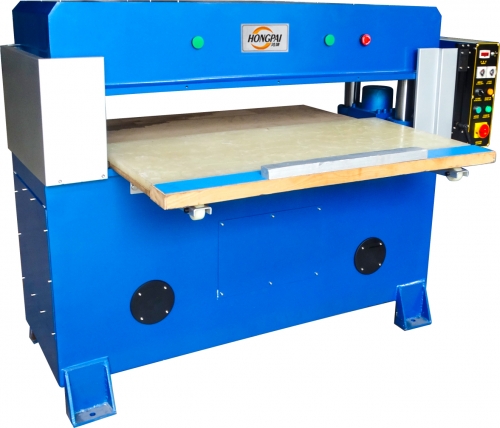

Hg-B25T hydraulic precision die cutting machine

application:

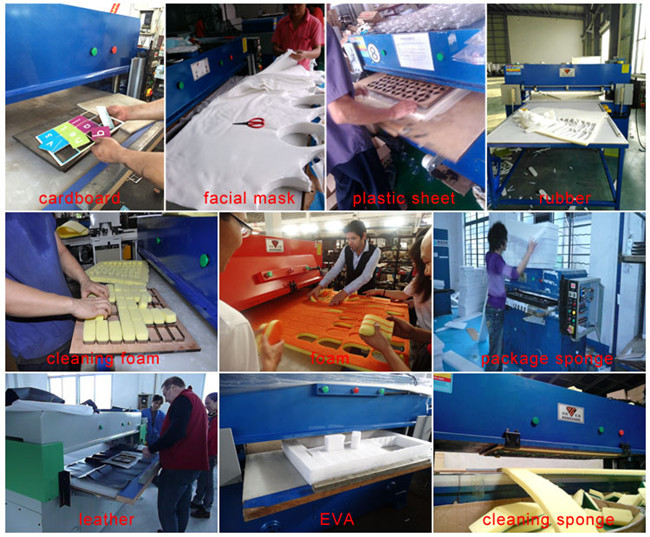

This 25tons die cutting machine usually used for die cutting non-metal materials,such as plastic film,foam,rubber,cases,purse,gloves,blister card and so on.

feature:

1.Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal cutting pressure in any working area.

2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.

3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.

4.Central automatic lubrication system, increases machine durability, prolong the working time.

5.Suitable for single-layer or multi-layer sheet or roll materials.

specification:

Model	Cutting force	Dimension	Cutting area	Motor	Stroke	weight
HG-BS30T/48''	30 Tons	195013701260mm	610*1220mm	2.2 kw	50-240mm	2000kg
HG-BS40T/48''	40 Tons	195013701260mm	610*1220mm	4 kw	50-240mm	2500kg
HG-BS50T/48''	50 Tons	195013701260mm	610*1220mm	4 kw	50-240mm	3500kg
HG-BS60T/48''	60 Tons	195013701260mm	610*1220mm	5.5 kw	50-240mm	4000kg

Hg-B25T Hydraulic Precision Die Cutting Machine

Cutting force	25T
Cutting area	558x1220mm or 558x1600m
Cutting Plate	558x1220mm or 558x1600m
Motor	2.2kw
Stroke	50-240mm
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	1500kg
Gross weight	1550kh
Dimension	1950x1320x1260mm
