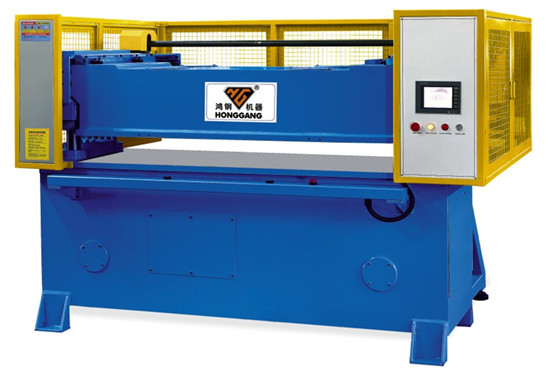

120 Tons Receding Hydraulic Head Press

Honggang receding hydraulic head press ranges from 40 tons to 120 tons as heavy duty machine, representing the newest technology for the receding beam press in the world.

This hydraulic head press is widely used in shoes cutting, leather bag cutting, fabirc cutting and so on.

Main benefits fro receding head press:

Easy to operate.
Labor power saving by pressing to move the cutting head.
precision cutting without moving materials
heavry duty, ranges to choose
Special rack and pinion head-speed control system allows quick head receding speed and adjustable receding distance to produce cycle times ranging from 3 to 4 seconds per die cut.

Product parameters:

Product Type	Receding Hydraulic Head Press
Model	HG-P120T
Cutting area	610x1600mm or customization
Motor power	5kw
Cutting Force	40 Tons to 120Tons
Machine Dimension	2260x1550x1650 mm
Stroke	50-200mm
Cutting speed	0-30000mm/min
Oil cylinder	Hydraulic
power	220V/380V/415V,50-60HZ

Cutting force	120T
Cutting area	610x1220mm
Cutting Plate	610x1220mm
Model	HG-P120T
Motor	7.5kw
Stroke	50-240mm
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	6000kg
Gross weight
Dimension	2260x1550x1650mm,1950x1320x1260mm
CBM	4.26cbm, 3.8cbm
