Application

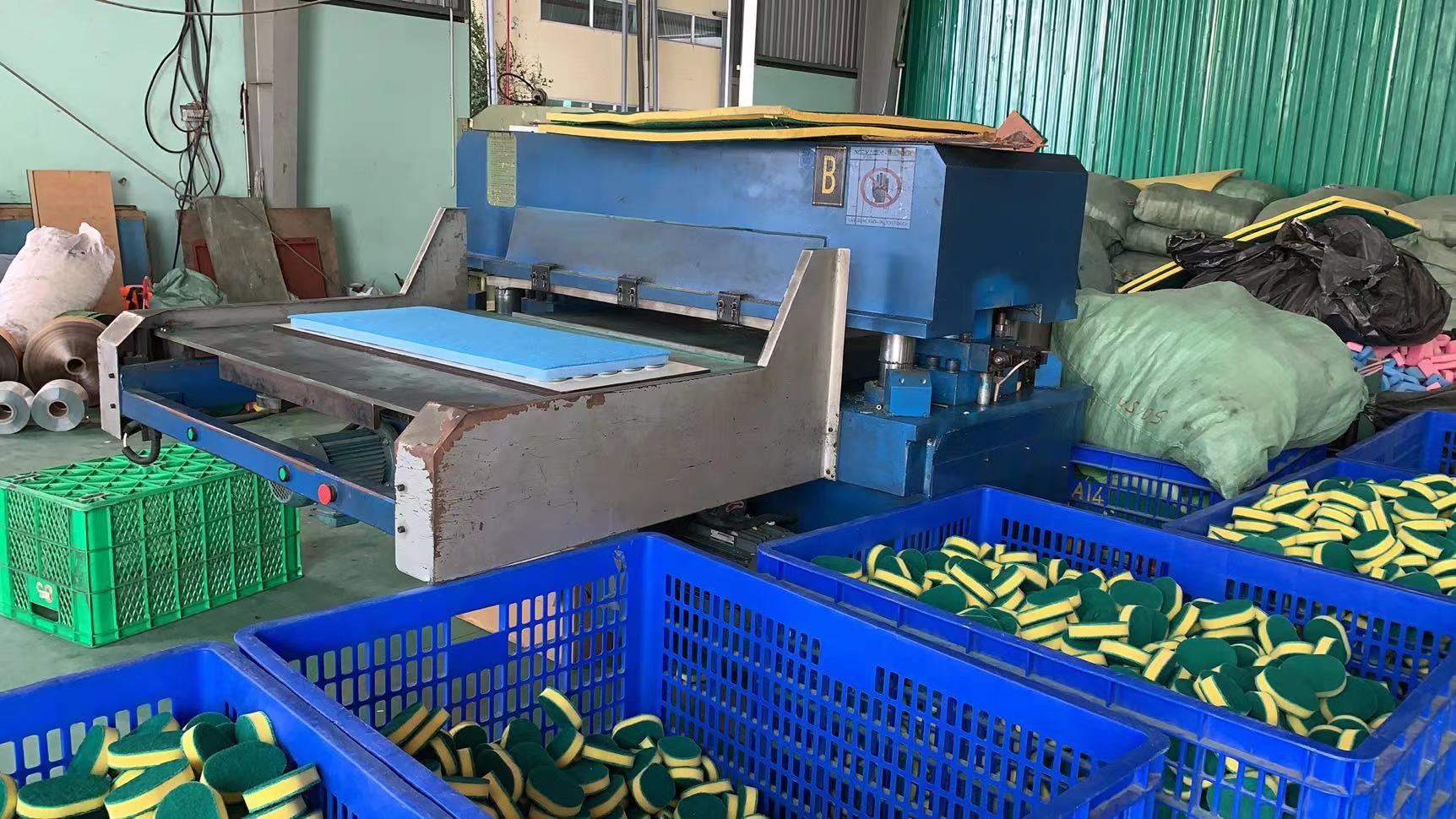

HG-B100T double-table scouring sponge cutting machine (Click to reach the same model working video) is normal standard model of hydraulic cutting machine used in scouring sponge die cutting.

100 tons cutting pressure, with standard 1400x810mm cutting area, to cut 1200x700mm sponge sheets. Double tables or singles table are optional, just double tables work like two machines together.

Of course, 60 tons, 80 tons, 120 tons, 150 tons, 200 tons, 250 tons pressure, 1300x910mm, 1600x810mm, 1600x1100mm cutting area can be selected.

The cutting dies can be fixed at the bottom of the feeding table, or fixed to the top by the tools.

The cutting die can be set automatic in the touch screen, controlled by PLC.

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	1400x810mm, 1400x710mm, 1600x810mm as request.
Motor	4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting

Application

HG-B100T double-table scouring sponge cutting machine
