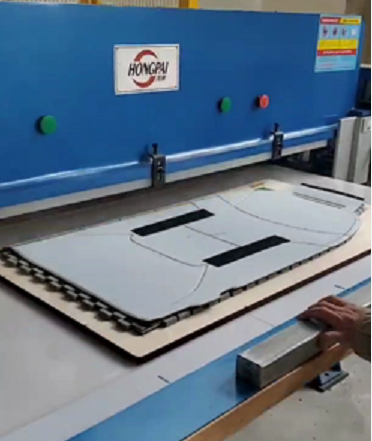

Seat Cover die cutting machine HG-A50T

Model:HG-A50T 1600x810mm

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Features Options Specifications Industries

Seat cover as usual made by leather and fabric or foam combine together. As usual it is used for car seat cover, air plane seat cover, or bus seat cover. The cover designs concludes head, seat body, seat chair cover. And the shapes are different to each other. So the Hydraulic Die Cutting Machine is neccesary for such leather, fabric, foam die cutting. We have 30 tons, 40 tons, 50 tons popular for leather goods die cutting. However, for seat cover, most choice, and the best solution should be by 50 tons, 1600x610mm or 1600x810mm cutting area, full head cutting, while 30 tons and 40 tons are small for leather bags, leather shoes, belts, purse, phone case making...

Cutting force	50T
Cutting area	1600x610mm, 1600x810mm
Cutting Plate	1600x610mm, 1600x810mm
Model	HG-A50T
Pressure Adjustment	Yes
Feeding type	By hand to drag or push the wood feeding table
Feeding materials	No limits
Cutting Thickness	0.1mm-90mm
Counting	Auto counting
Cooling	No
Motor	2.2kw,4kw
Stroke	50-160mm,50-230mm
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	1900kg-2800kg
Dimension	2330x1320x1260mm,1950x1320x1260mm
CBM	4.26cbm, 3.8cbm
