Industrial Introduction – For Customers

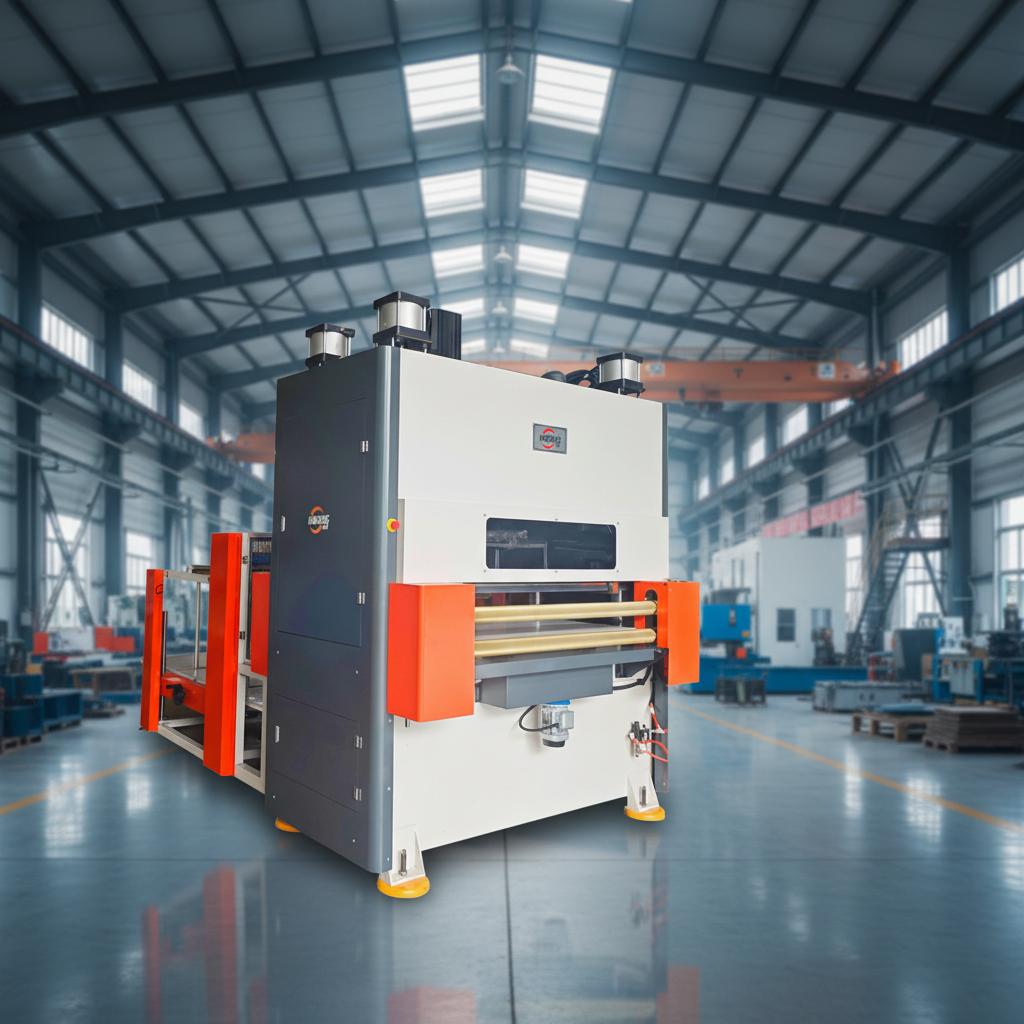

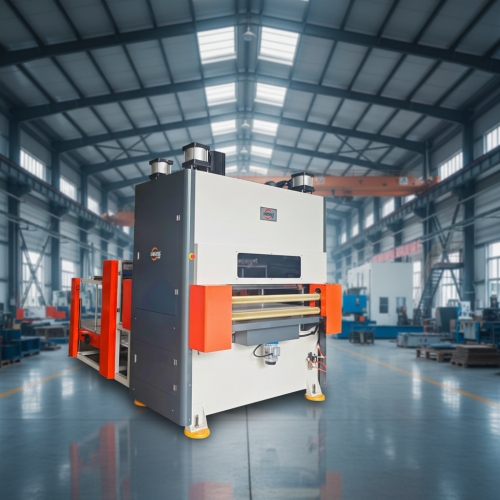

Honggang HG-G150T Full Electric Servo Cutting Machine
Solving Real Production Problems for Foam Converters
As a production manager or business owner, you face constant pressure: reduce costs, increase output, maintain quality, and keep your workplace safe and clean. Hydraulic cutting machines have served the industry for decades, but they also bring oil leaks, slow cycles, high energy use, and frequent maintenance. The Honggang HG-G150T was developed specifically to address these customer pain points.
Your Top 5 Problems – Solved
1. Oil Leakage and Contamination
Hydraulic hoses and seals fail over time. Oil drips onto your floor, your products, and sometimes into finished goods. This risks customer rejection and safety violations. The HG-G150T has no hydraulic oil. No leaks. No stains. No cleanup. Perfect for medical, food, and cleanroom applications.
2. Slow Cutting Cycles
Every second your machine waits for pressurization costs you money. Traditional hydraulics need 3-5 seconds per cut. The HG-G150T cuts in under 2 seconds, delivering up to 1000 cycles per hour. That means more parts per shift without adding extra shifts.
3. High Electricity Bills
A 150-ton hydraulic press often runs a 30-40 kW motor continuously, even when idle. The HG-G150T’s servo drive draws full power only during the cut. Standby consumption is negligible. Customers report 60% lower electricity costs – often saving thousands of dollars annually.
4. Frequent Die and Pad Changes
Inconsistent cutting depth from hydraulic systems wears out steel rule dies faster and forces you to use thick, expensive cutting pads (12mm or more). With ±0.01 mm repeatability, the HG-G150T extends die life and allows 6mm PP pads – reducing your consumable costs by 30-40%.
5. Manual Feeding Labor
Loading foam sheets one by one is slow and ties up an operator. The HG-G150T includes a self-elevating stacking-sucker that accepts a 700mm high stack. Steel rollers automatically feed each sheet, cut, and discharge finished pieces. One operator can supervise two or three machines. Labor cost per part drops dramatically.

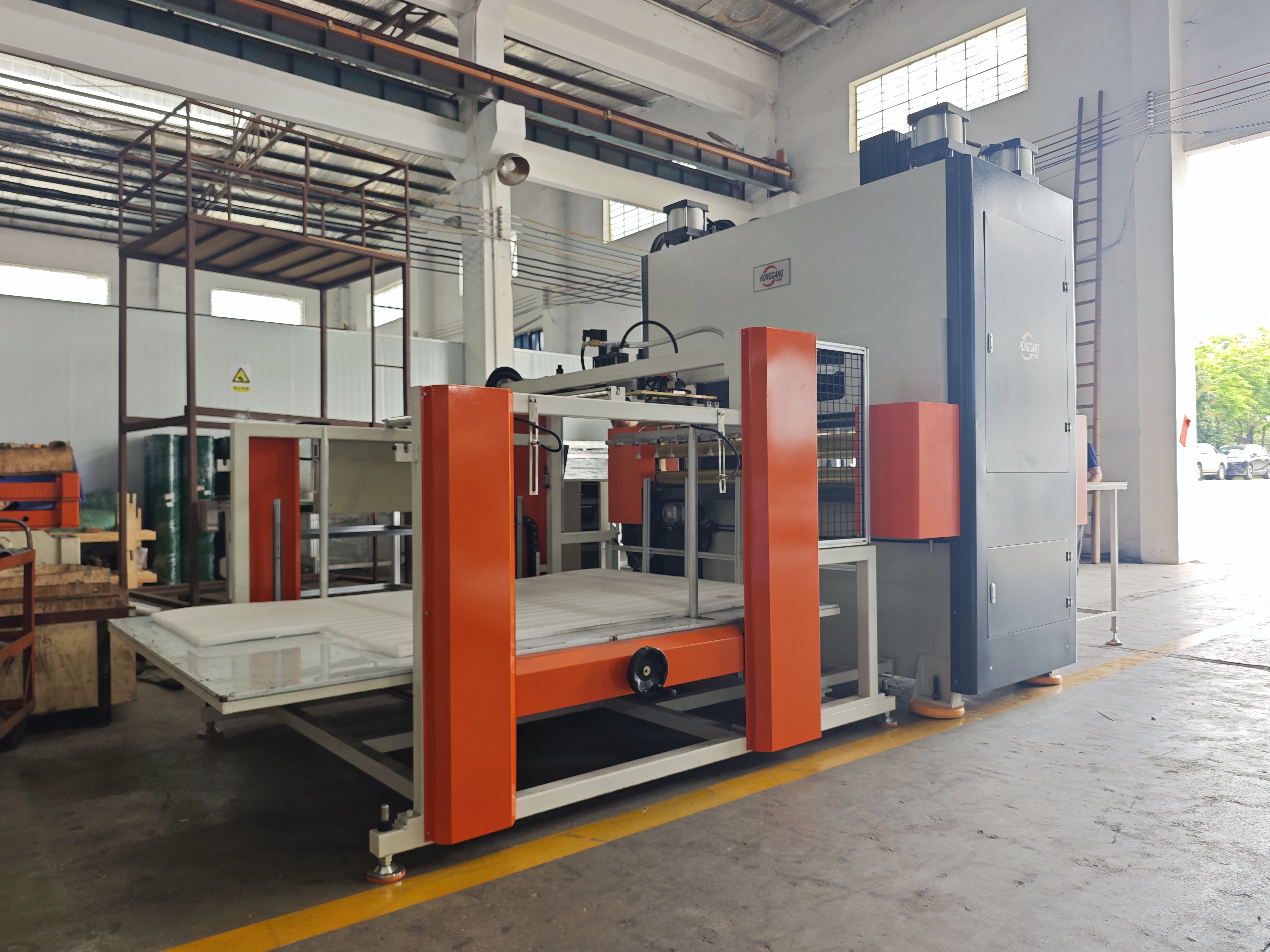

Feeding System – Designed for Your Convenience
- Stacking-sucker platform: load entire pallet of foam (up to 700mm height) or connect a roll. Platform rises automatically.
- Steel roller feeding: positive grip, no slipping. Synchronized with cutting stroke.
- Rubber plate micro-adjustment: after each cut, the pad shifts slightly. No more cutting in the same groove. Pad life triples.
-
Technical Summary (Customer-Focused)
Model: HG-G150T
Cutting force: 150 tons – enough for thick EPE, EVA, sponge
Cutting speed: 1000 cycles/hour (<2 sec/cut)
Precision: ±0.01 mm – consistent, high-quality parts
Power: 25 kW total, but 60% less energy than hydraulic
Feeding: automatic stacking-sucker + steel rollers
No oil – zero leakage, zero contamination
Optional Hydraulic Version – HG-B150T
We understand that some customers prefer a lower upfront investment or have existing hydraulic tooling. The HG-B150T offers the same automatic feeding system (stacking-sucker + roller feeding) with a traditional hydraulic power unit. Cutting speed is 600-800 cycles/hour, precision is ±0.1-0.2 mm, and energy consumption is higher. Our sales engineers can help you compare total cost of ownership and choose the right model for your budget and production targets.
Get a Customer-Specific Analysis
Every factory is different. Contact us with your current machine type, monthly output, electricity rate, and labor cost. We will provide a custom ROI calculation – including payback period, annual savings, and productivity gain.
Switch to Honggang. Cut faster, spend less, and stop cleaning up oil.
