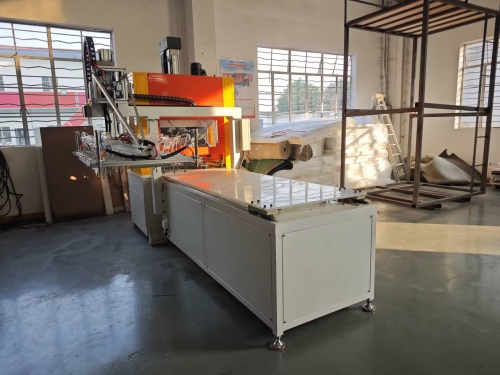

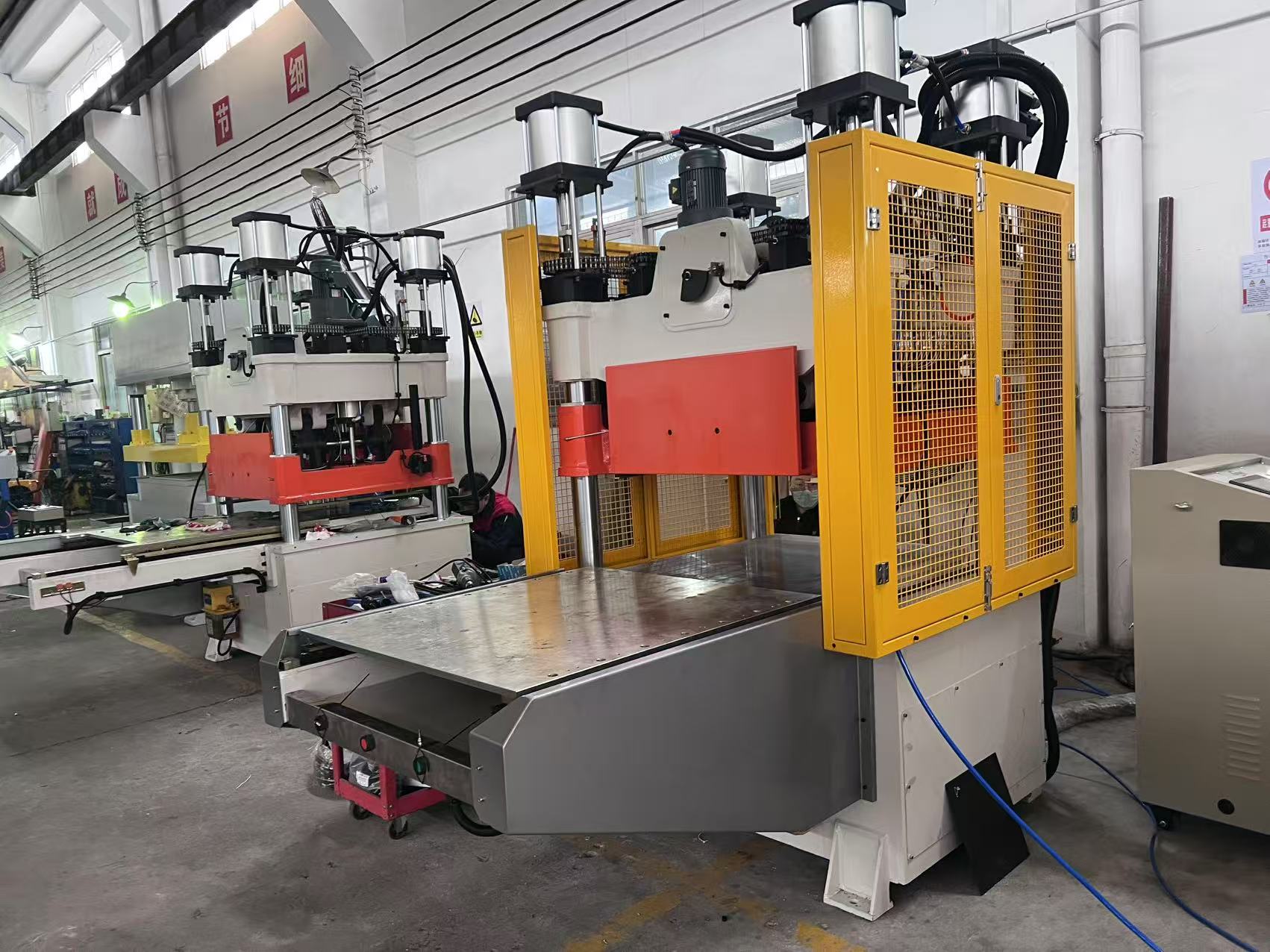

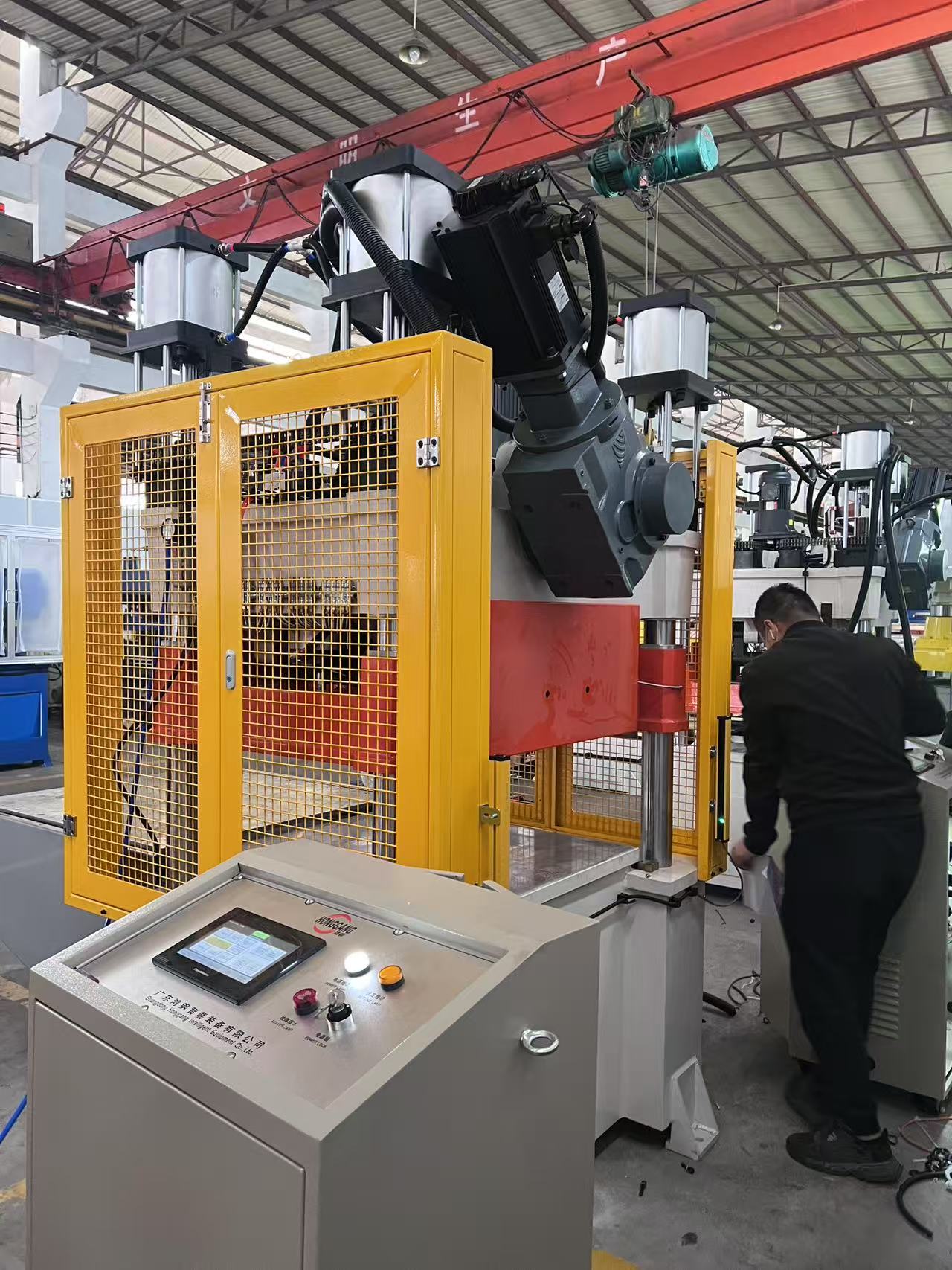

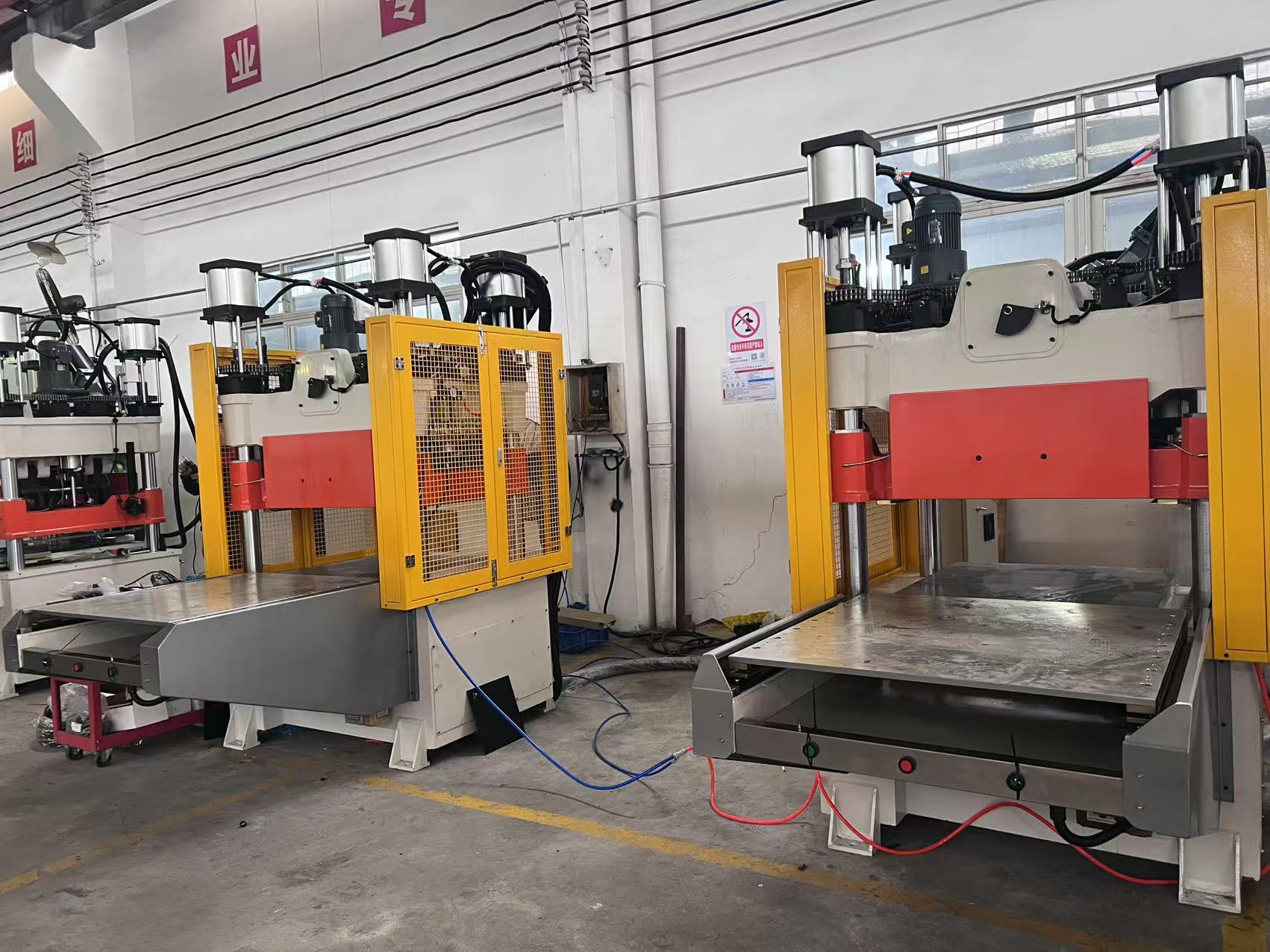

Based on the experience of manufacturing hydraulic cutting machine, and full servo cutting station for auto 3-station thermoforming machine, we take out the servo cutting as a single cutting machine from the thermforming machine, to the meet the cutting requirement.
This full servo cutting machine without hydraulic is so very suitable for cleanroom requirements, such as for medical blister package, or some high requirement in clean for food package die cutting, with robot arm, which can install with the robot arm. Please see the options page.
Features Details:
1.The main machine adopts a full servo mechanical connecting rod structure, which has a fast punching speed and a lower equipment failure rate, eliminating the complicated maintenance of hydraulic machinery to replace hydraulic oil and oil seals.
2.The cutting machine body adopts a cast body and is stress-relieved. The body has undergone rigorous strength verification to ensure that the structure of the body does not deform excessively under long-term high-intensity work.
3.Precision mechanical connecting rod structure, repeated punching position accuracy reaches ±0.02mm, the mechanical structure eliminates the problem of unstable punching pressure, and makes the die more durable.
4.Fully servo motor drive, more energy-saving and environmentally friendly, the same cutting force saves more than 50% energy than traditional hydraulic machinery.
5.Mature bilateral servo automatic feeding system, the feeding plate has high repeated positioning walking accuracy, and bilateral use improves the utilization efficiency of the equipment.
6.The product is equipped with a digital self-lubricating system, and each moving part adopts an automatic lubrication system, which does not require personnel maintenance.
7.Programmable logic control and touch screen display, setting cutting depth and feeding speed, simpler, more accurate and faster operation.
8.The cutting die fixed automatic die clamping system can quickly complete the die replacement and improve the safety of die clamping.
