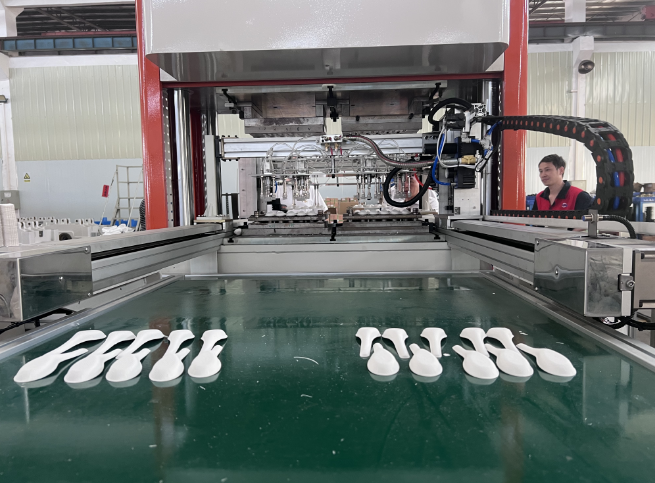

The Sugarcane Disposable Spoons cutting machine is a mechatronic product that integrates multi-disciplinary and multi-category precision manufacturing technologies such as electrical, automatic control, hydraulic control and modern mechanical design, which is carefully designed by the company based on long-term production experience and the actual needs of users, using advanced design methods and manufacturing technologies, and implementing industry standards. The equipment has applicable structural performance, high dynamic and static stiffness, long service life, high processing efficiency, and safe and reliable functions.
2. Equipment use:
This product is suitable for die-cutting operations of paper-plastic products by forming die-cutting dies, such as paper-plastic lunch boxes, packaging boxes, etc.
3.Equipment technical features
3.1Product features
A. The main machine adopts three-beam four-column precision guidance and servo connecting rod cutting method, with stable overall pressure, high cutting accuracy and reliable performance;
B.Adopts servo electro-hydraulic system, precise pressure setting and small error;
C.Dual manipulators work in linkage and have high working efficiency;
D.Transmission logic control adopts programmable controller. It has the advantages of stability, reliability and long service life.
E. It can realize automatic feeding, punching and material collection with high processing efficiency;
F. Full Auto pick&place cutting system for Sugarcane Disposable Spoons adopts full protection, beautiful and pleasant appearance, safety and environmental protection.
3.2.Structural features

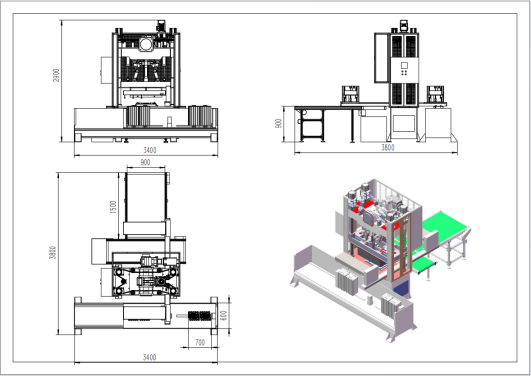

Full Auto pick&place cutting system for Sugarcane Disposable Spoons consists of a cutting machine host, a manipulator system, a side material collection conveyor, a finished product collection device, an electrical system and a whole machine protection;

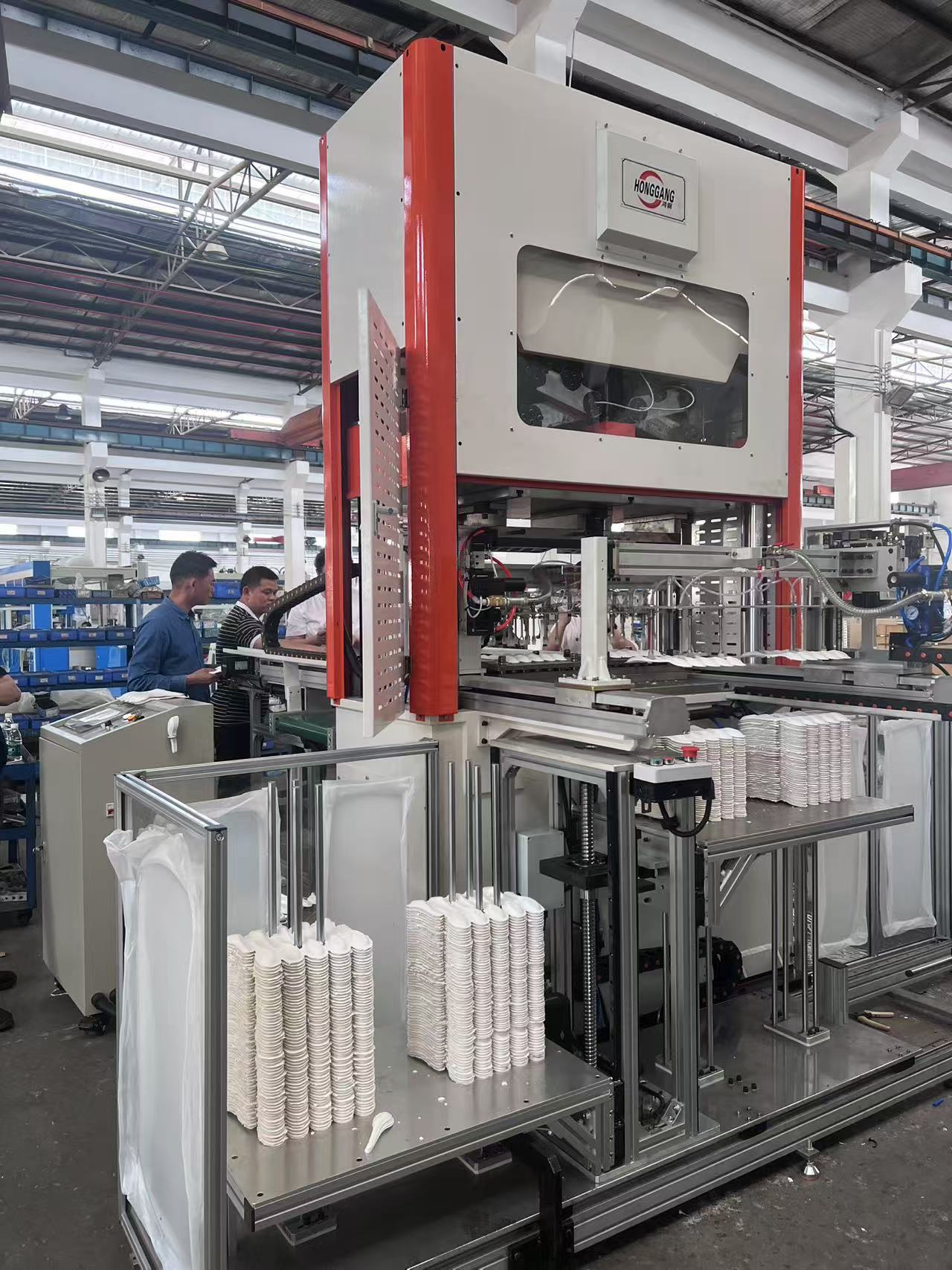

Cutting machine host, The working output of the cutting machine host is 60T, and the inner size of the column is 1200mmX600mm. It is mainly composed of a lower workbench, an upper pressure plate, a moving plate and a column.

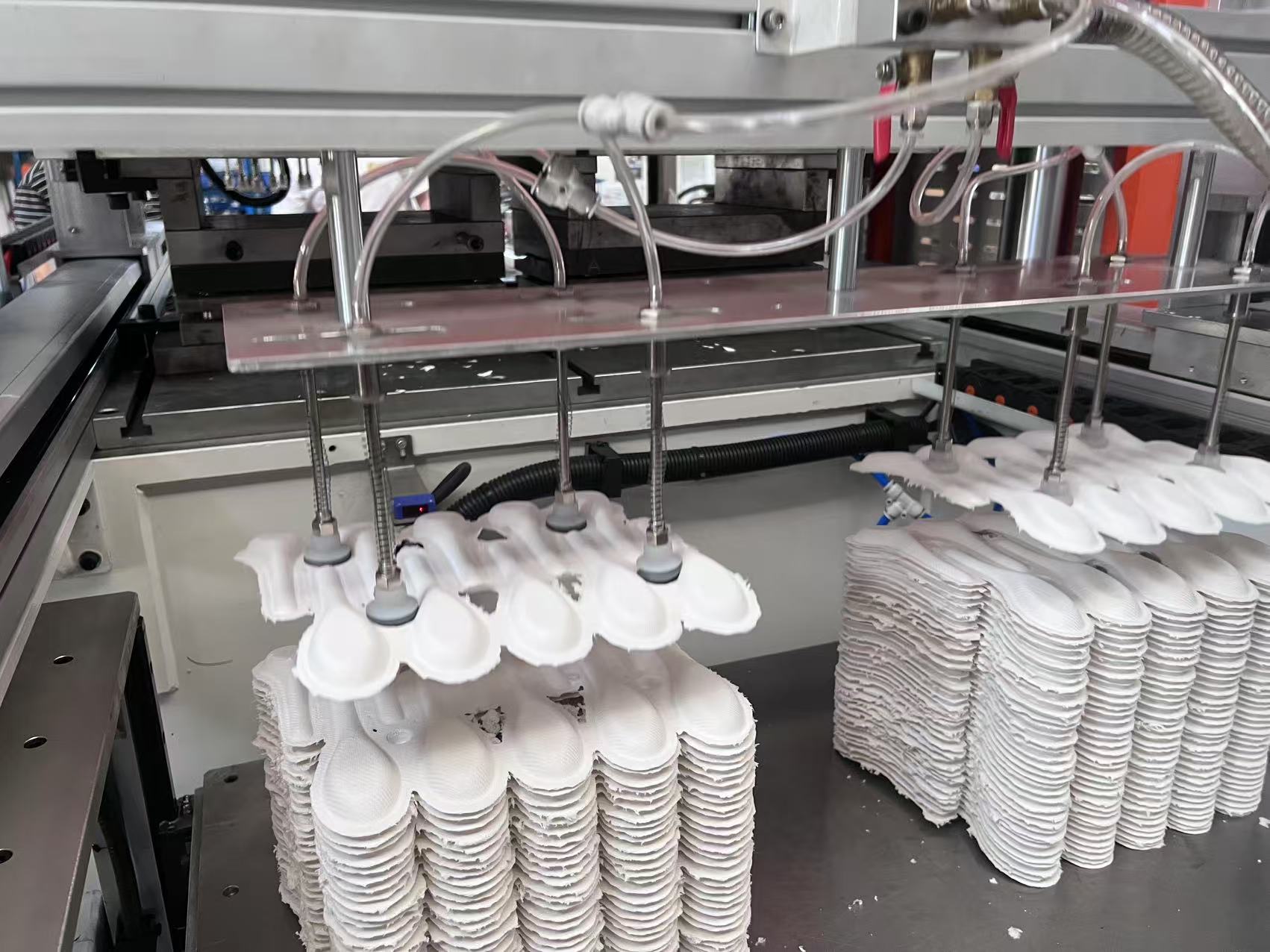

Manipulator system,The manipulator axis is controlled by linkage, and the horizontal screw guide module is driven, with a maximum stroke of 2500mm, and the vertical servo screw drive is driven, with a maximum stroke of 200mm.
Servo connecting rod system, using servo + reduction connecting drive system, constant pressure, precise platen blanking.
Electrical system, the electrical system effectively integrates electromechanical through strong and weak current control, and conveniently realizes the control and operation of the equipment.
The system adopts PLC control. The component layout and wiring are reasonable, neat, beautiful, and easy to maintain.
The whole machine is protected by sheet metal, which is beautiful, safe and environmentally friendly.
Cutting force
60 tons
Cutting area
1200x600mm
Motor
Full Servo Motor
Stroke
240,,
Feeding type
Robot arm pick and place, pick and drop
Open
Control system
Fatek PLC controlled
Table feeding speed
Adjustment
Working tables
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
3000-100000kgs
Feeding materials
Sheets, with limit in feeding length
Cutting Thickness
0.1mm-90mm
Die Setting
In touch screen, auto setting
Cooling
Fan, water recycle
Cutting Head Height
Adjustment
Color
Blue standard, or as request
Counting
Auto counting
