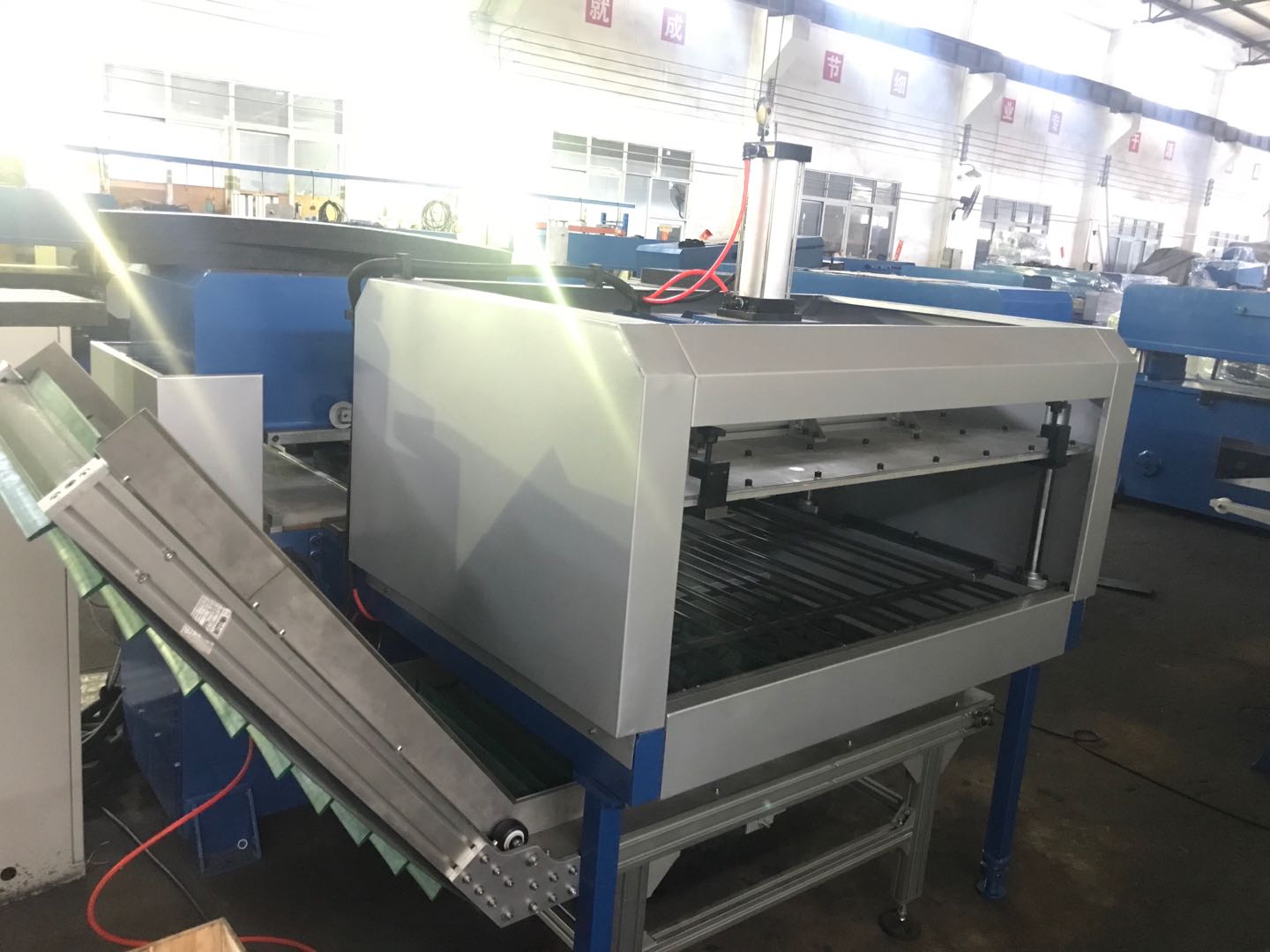

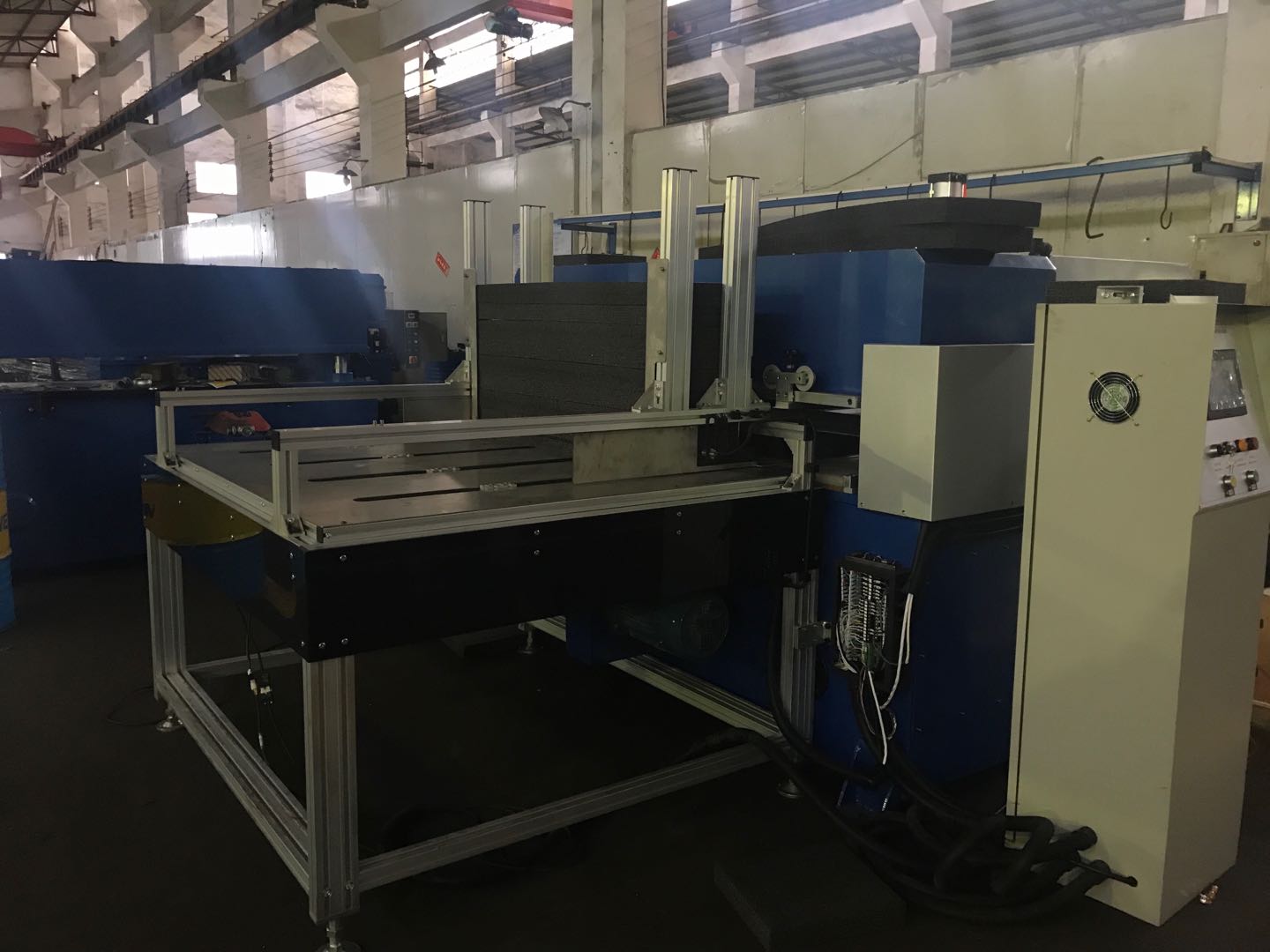

Cutting Machine

Fully automatic cutting machine with depatching tools: Feeding, Cutting, Depatching.

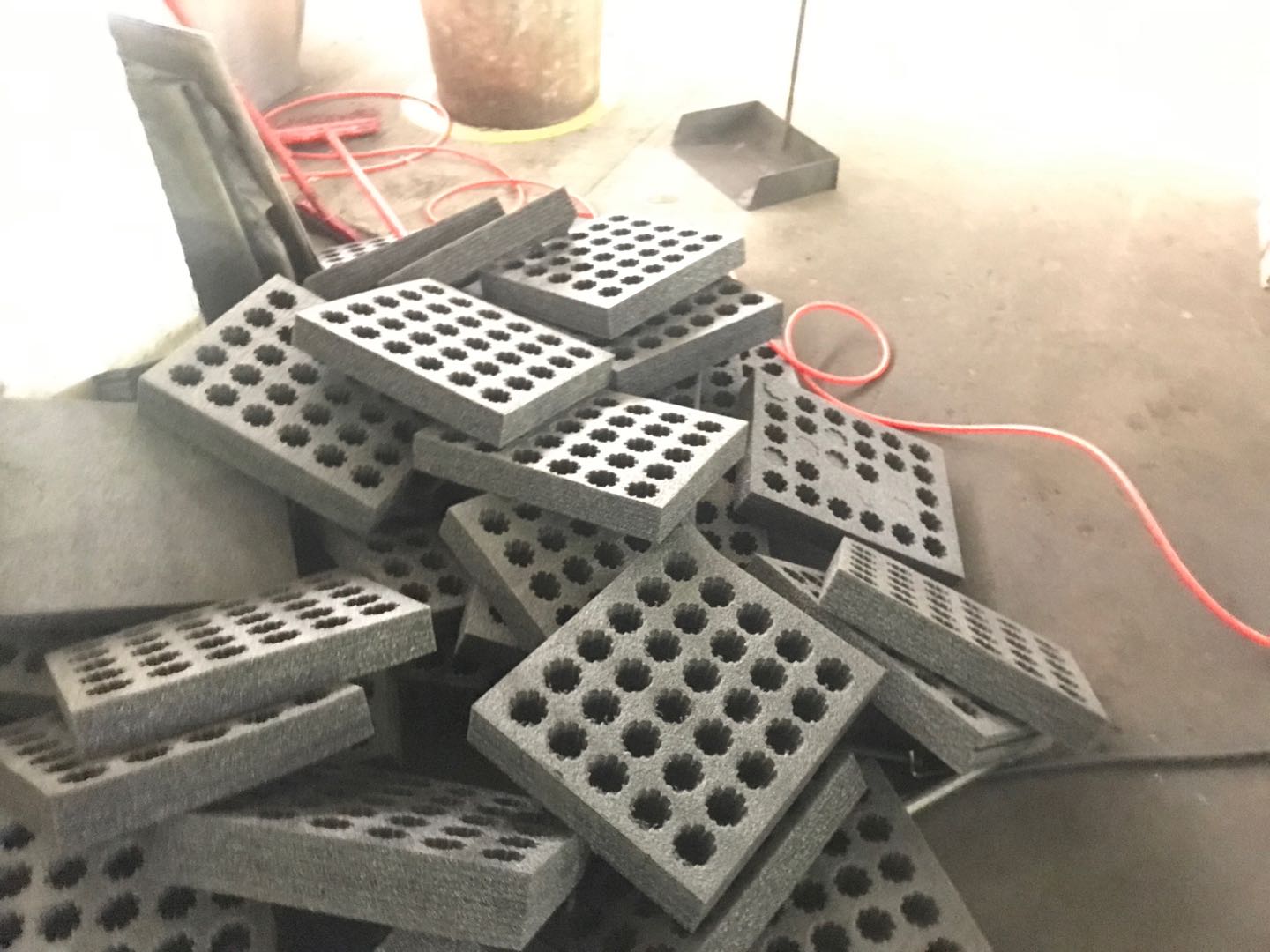

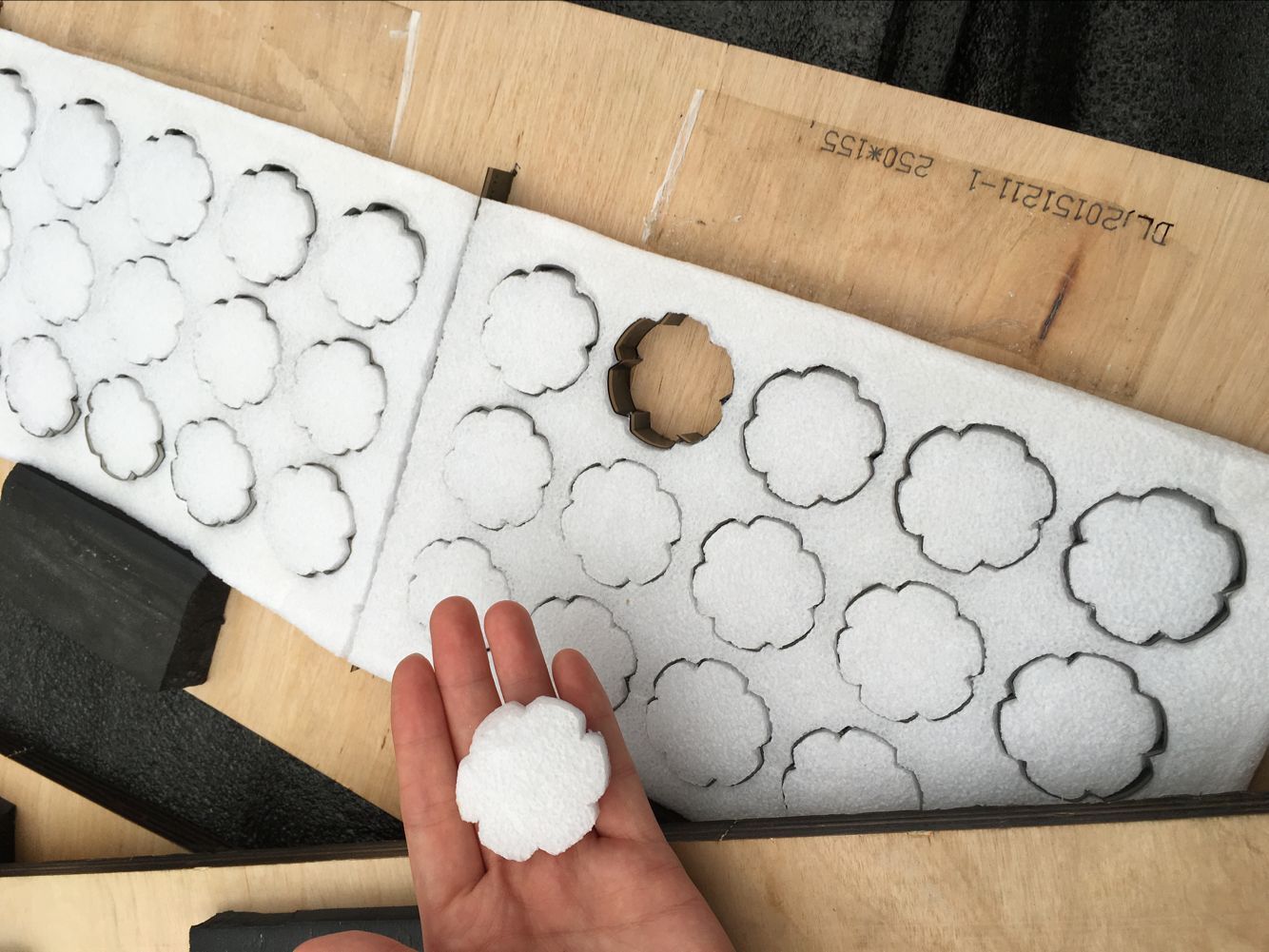

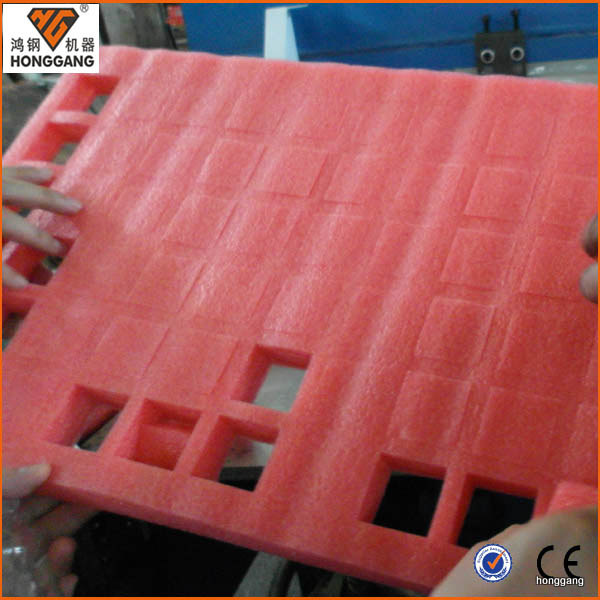

This kind of hydraulic foam die cutting machine is mainly developed for foam/EVA/Sponge cutting which cutting into many small regular pieces, such as for foam egg tray, cleaning sponge, kinds of packing foam.

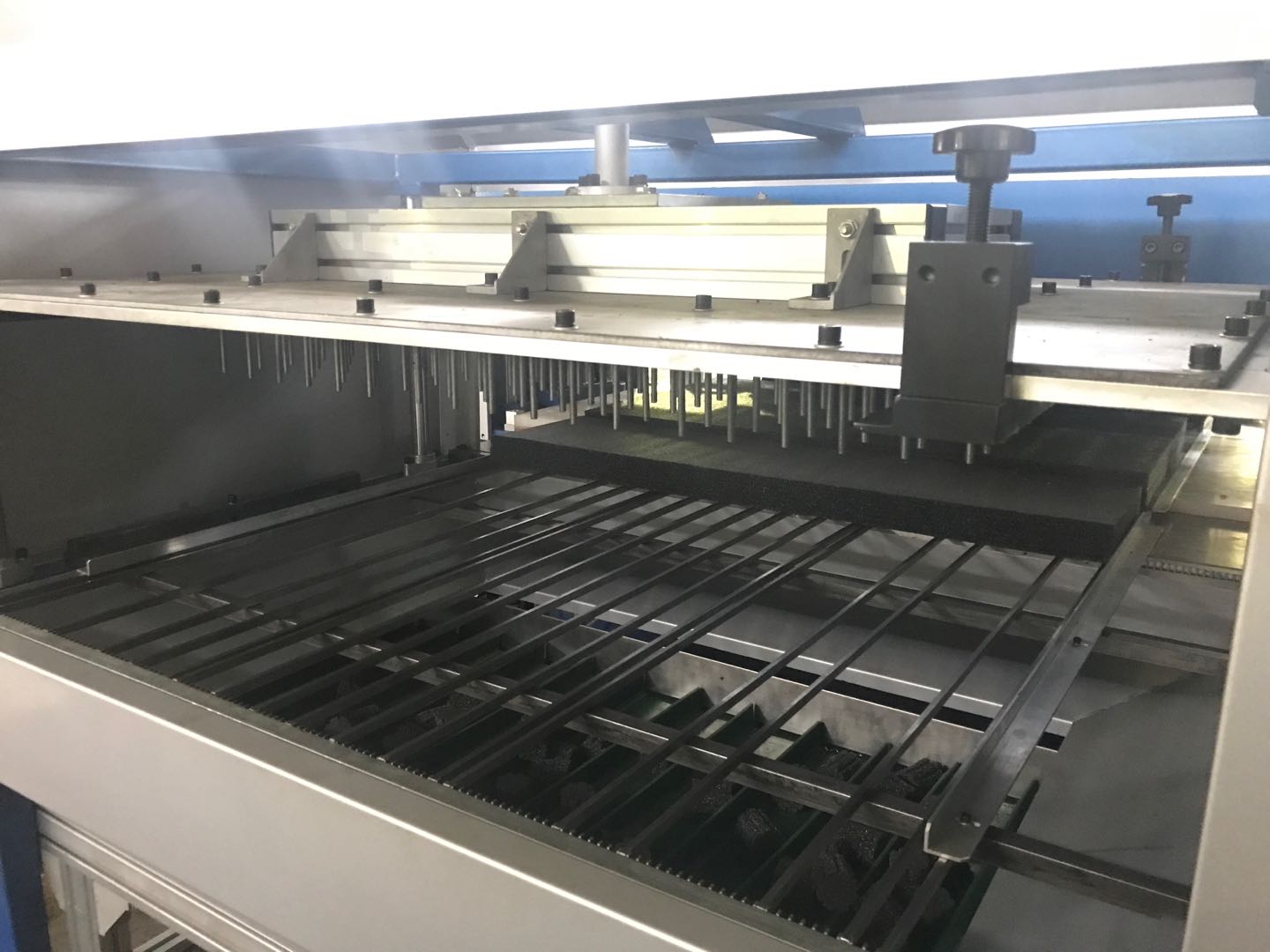

The foam die cutting machine is used for cutting regular foam sheets automaticly. After workers putting foam sheets on the feeding table, it will run the foam to the cutting part edge and feed into the cutting area. After cutting, the sheet will be push into the depatching area to depatch by tools automaticly.

So it will help to save times and raise the production effective, no need to put the materials or foam sheet everytime and also no need to pick up the cutting pieces from the sheet.

This kind of machine pressure can be from 60 tons, 80 tons, 100 tons, to 300 tons, area can be customized as request.

If you are seeking for thin foam of 1mm in rolled automatic cutting, please check this page.
Or thickner foam in rolled, please check this page,

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	610x1220mm, 710x1220mm,610x1400mm, 810x1400mm, 610x1600mm, 810x1600mm, 910x1800mm,etc as request.
Working tables	single table
Feeding table type
Motor	4kw,5.5kw,7.5kw,9.5kw,11.5kw,13.5kw
Stroke	50-160mm, 50-240mm
Voltage	3 phase 220/380/415/440V 50/60HZ
Dimension
Net weight

Cutting Machine

Foam sheets auto feeding and cutting
