EVA Slipper Sole Die Cutting Machine Hg-B150T

Model:HG-B150T/200T, 1400x1000mm

Request Quote

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Features Options Specifications Industries

(Please contact us for machine working video, while it's not allowed public)
Double sides with large pressure 150/200 tons to cut 1400x1000mm full sheet at one time. It's suits for cutting flip flop, eva slipper sole, chanipa soles, scandals soles, loafers soles, with high speed output by one time cutting.It can cut 24 pairs for large sheets, much faster for small size of 30 tons with auto feeding table continuous working by one pair cutting, you can see optional choice video.

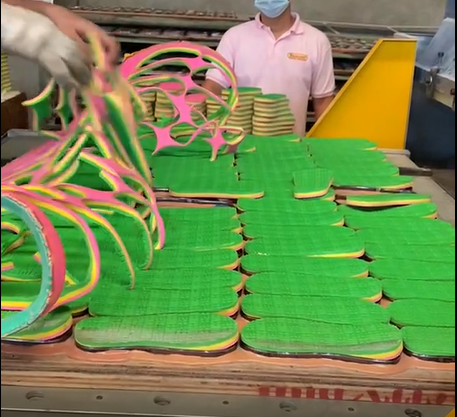

The eva foam sole cutting machine with auto sliding table inside cutting and then come out automatic. It's easy to pick up after cutting as it is foam insert inside the dies so it's pushing out after die cutting.

And foam sole cutting for the scandals/flip flop as usual by large EVA sheets, the 150 tons or 200 tons can hold and die cut full sheet without any problem.

With large enough pressure 150 tons or 200 tons, and cuting area 1400x810mm/1400x1000mm, the foam eva slipper cutting machine can also die cut for tatami, floor mat, other kinds of slippers, hotel slipper, nail/salon slipper etc. Widely usage is the main specicifation of the hydraulic die cutting machine.

The eva sole for slipper die cutting machine is with structure of 4 - column type auto balance connecting rod which can keep cutting pressure steady and powerful, also good for long term working.

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	1400x810mm, 1400x710mm, 1600x810mm as request.
Motor	4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting

Application
