| Model | HG-B100T, HG-B150T |
| Color | Blue or customized |
| Suitable for material | foam sheets, auto feeding thickness 5-80mm |
| warranty period | Guangdong,China |
| Machine type | Hydraulic cutting machine |
Feature & advantage
1. machine is controlled by PLC(Programmable Logic Controller), with touching the screen, to set and micro-adjust working pressure, cutting depth, feeding speed easier, faster, and more precise.
2. It can stack multiple sheets at the same time, without repeated feeding, which saves labor and time.
3. Powered by hydraulic system, more accurate and error-free.

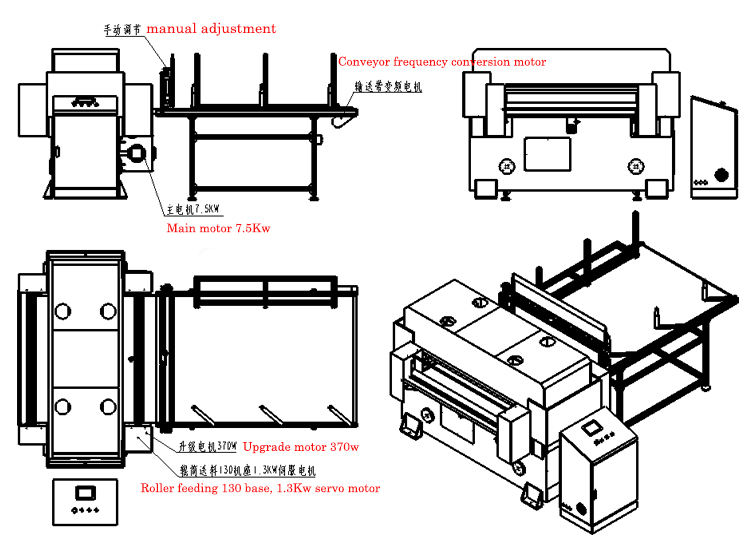

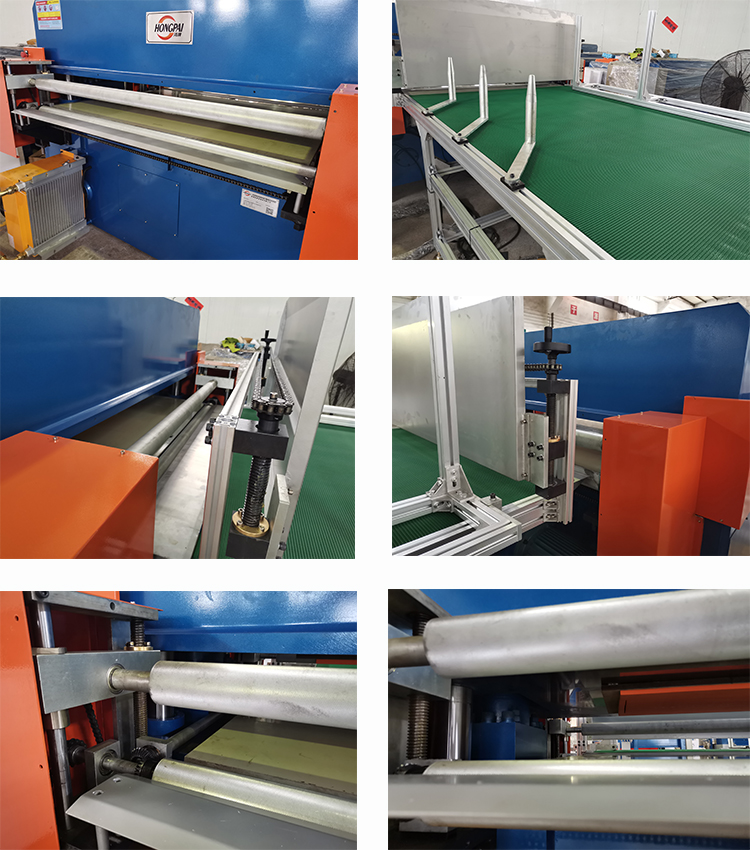

Working show
| Main Mechanical Parameters | Marks | |||||||||
| Working pressure | 100 tons, 150 tons. | |||||||||
| Stroke | 180mm, max open 230mm, min open 50mm. | |||||||||
| Motor | 7.5 kw | |||||||||
| Cutting area | 1400x810mm | |||||||||
| Fast speed down and up | 100mm/s | |||||||||
| Slow speed down | 35mm/s | |||||||||
| Slow speed to cutting point | 10mm/s | |||||||||
| Main machine structure | precision four-column automatic balance link mechanism to ensure that the cutting area within the depth of the cut. | |||||||||
| Cutting method | two-stage cut, from the cutting distance 10mm before the automatic slow, to ensure that multi-layer material. | |||||||||
| Cutting area dynamic punching Repeat accuracy | ± 0.05mm | |||||||||
| cutting balance accuracy | ± 0.1mm | |||||||||
| Machine body | Steel plate welding structure, precision machining | |||||||||
| Machine size (length X width X height): | L4000xW2350xH1700 (including discharge rack and electrical box, to prevail) | 16CBM | ||||||||
| Cutting die fixed tool**please see belowing video link of NO. 12 | One set of automatic clamping device, four clamping cylinders SC40, four adjustment drive motors | |||||||||
| Column diameter | ¢ 90mm quenched and tempered high-frequency hardened, chrome-plated surface | |||||||||
| Feeding System | ||||||||||
| Feeding Method | Front and Backward double roller feeding; Accuracy: ± 0.5mm Feeding Speed: 0-600mm / s | |||||||||
| Feeding Servo motors | 1.3KW Quantity: 1 Brand:AIWEITU | |||||||||
| Speed Reducer | RV063 | |||||||||
| Stacking feeding table type | belt feeding with stoper; feeding guide in both sides;Front adjustment gear | |||||||||
| Feeding table size | 2000x1400mm | |||||||||
| Table height | 1000mm | |||||||||
| Shield Guard | Safety guard around feeding table | |||||||||
| Electrical parameters | ||||||||||
| Electric box | customization Honggang standard | |||||||||
| PLC | FBs-24MCT Quantity: 1 set Brand: Taiwan FATEK | |||||||||
| Touch Screen | Model: 7 inch color screen number: 1 set Brand: Taiwan Yonghong product counting function, can save 200 equipment abnormal record information | English operation panel | ||||||||
| Servo drive (wiring 5 meters): | Quantity: 1 sets Brand: AIWEITU | |||||||||
| Control transformer | BK-300 | |||||||||
| Voltage | 380V 50HZ 3PHASE | |||||||||
| Power supply | 7.5 kw + 1.3 kw | |||||||||
| Alarm | Equipped with circuit breaker and sound and light alarm device | |||||||||
| Operation method | Manual; Automatic; each movement has its own operation switch. | |||||||||
| Hydraulic System | ||||||||||
| Main motor | 7.5KW B5 1460R/M 1 set Brand: Jiangcheng | |||||||||
| Pump | Brand: Yongling | |||||||||
| Main hydraulic parts | Logic valve , Brand: TAIWAN Jeougang | |||||||||
| Other Parts | ||||||||||
| Inverter | Oil pump contactor | Schneider | Power supply | Schneider France | ||||||
| Encoder | Oil pump thermal overload relay | Schneider | Buttons | Japan FUJI | ||||||
|
Relay |
|
IDEC Japan | Photoelectric Switch | Omron | |||||
| Transation Terms | ||||||||||
| 1.Warranty: 12 months. During warranty, parts free to change. Engineer available to serve machines overseas. | ||||||||||
| 2.Voltage: 380V 3phase 50HZ, if not same, please advise. | ||||||||||
| 3.PAYMENT TERM:T/T 30% down payment ,T/T 70% before delivery. | ||||||||||
| 4.LEAD TIME : 30-40 days. | ||||||||||
| 5.SHIPMENT: FOB Guangzhou. | ||||||||||
| 6.PACKING : Plastic film, 1xStandard 20' container. | ||||||||||
| 7.BRAND: HONGGANG | ||||||||||
| 8.CERTIFICATE: CE | ||||||||||
| 9.ORIGIN: CHINA | ||||||||||
| 10. Free Accessories: | ||||||||||
| 1) Necessary easy broken electric parts. | ||||||||||
| 2)A set of tools /set | ||||||||||
| 3)An Instructution Manual and one catalouge/set | ||||||||||
