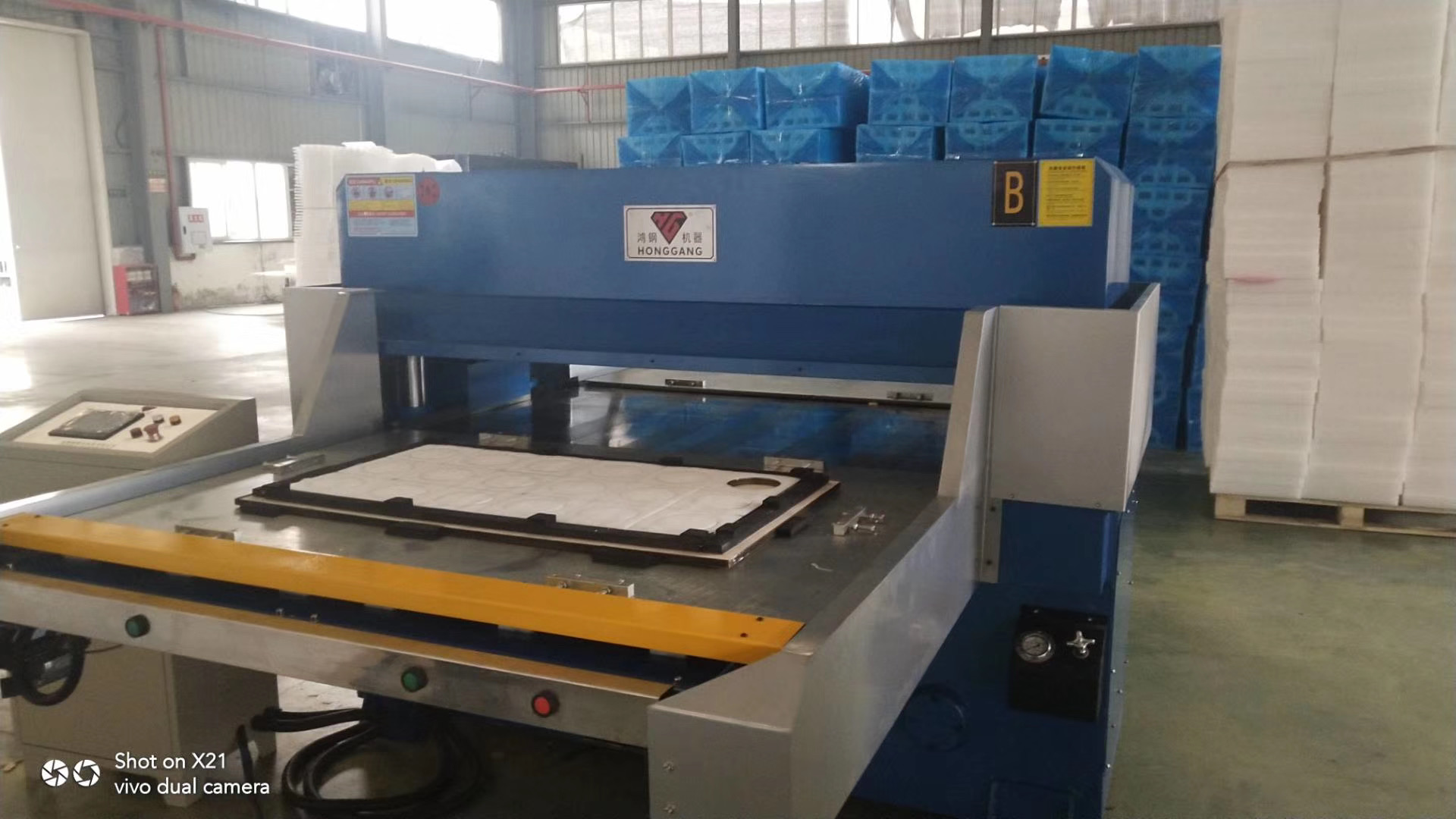

EPE Foam cutting machine for packaging

Model:HG-B100T

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Features Options Specifications Industries

Double-side working tables cutting machine which is popular in Plastic cutting in many countries, and also popular in packing foam cutting industry. However, as I know, it's less known and less used by packing foam factories in other countries, except China.

It's reas

onally thinking that for foam cutting, there are many other cutting machines, such as vertical band cutting machine for thick thick foam sheets, slitting machine cutting into regular shapes, travel head die cutting press with small dies cutting, full belt cutting press for thin foam rolls, double sides cutting press by belt feeding for foam rolls and long long sheets, manual sliding table cutting press machine with low cost for vary foam and small quantity production, stacking cutting for 2-3 meters sheets.

What can double sides of feeding table cutting press do? It's no doubt that the double side cutting press for foam cutting has its limit in feeding length. However, when you have tons of small or midium size of foam packing pattern ready to cut, the two sides of working positions, like two machines working together, will help a lot! Fast to put the sheet, fast to run into the cutting area, fast cutting, and fast pick up one sheet by one sheet, and 100% safety working, never imagine any other types of cutting press can meet this demand! (if you need more automatic type, please contact us: tina@hgcuttingsystems.com)

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	1400x810mm, 1400x710mm, 1600x810mm as request.
Motor	4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting
