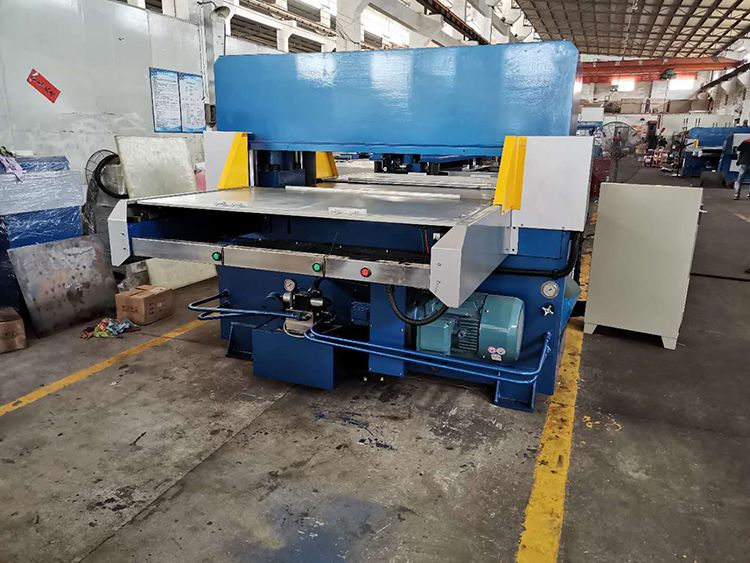

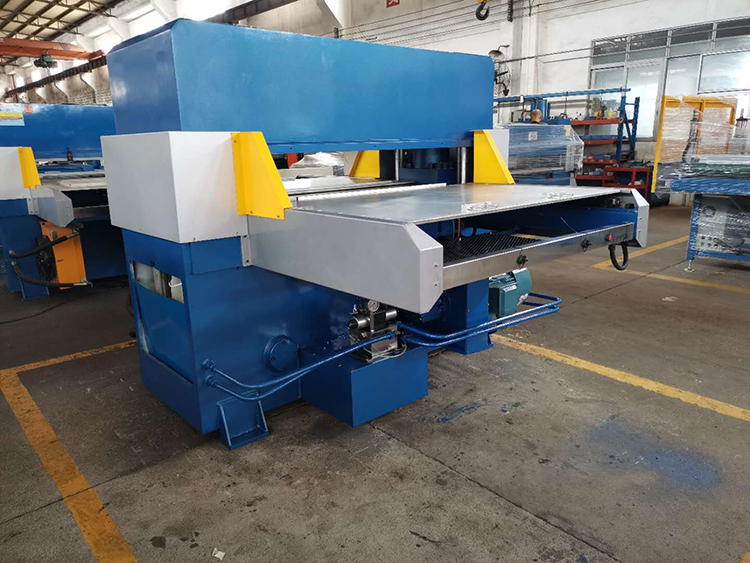

This customiztation of install the hydraulic valve unit outside of the machine, but still connect to the machien body is mostly for full beam cutting press -B model, for easy maintenaince. The oil is still to put into the bottom oil tank.

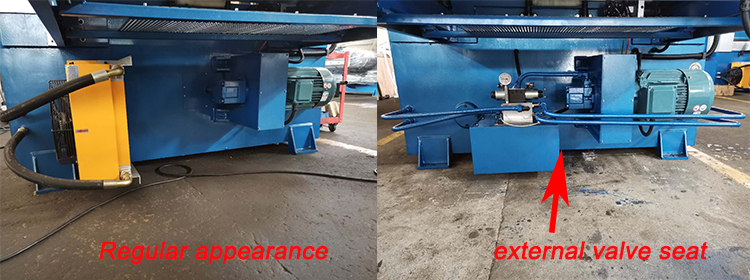

The machine is customized according to customer requirements. The valve seat is placed outside the machine to facilitate the maintenance of the machine.
Cutting force
50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area
610x1220mm, 710x1220mm,610x1400mm, 810x1400mm, 610x1600mm, 810x1600mm, 910x1800mm,etc as request.
Working tables
double table
Feeding table type
Chain feeding
Motor
4kw,5.5kw,7.5kw,9.5kw,11.5kw,13.5kw
Stroke
50-240mm
Voltage
3 phase 220/380/415/440V 50/60HZ
Dimension
3000*2300*1570mm
Net weight
5000kg
