DM80 Fully Automatic Plastic Thermoforming Machine

Model:DM80
Request Quote
This item has added to inquiry basket
Enter Inquiry Cart now.
This item was already in your inquiry basket
Please Check your Inquiry Cart .
DM80  Fully Automatic Plastic Thermoforming Machine

FeaturesOptionsSpecificationsIndustries

1. 3/4  Stations Positive and negative pressure thermoforming machine
1/ Three stations: positive and negative pressure forming, cutting, stacking
2/Forming upper mold core servo control
3/ Outer eight models of front loading mold
5/ Automatic mold clamping device
6/ Chain track eight-character function (applicable to PP, full degradation Material with high material sag)
7/ German Beckhoff controller, servo drive system is Swiss ABB (motion control absolute value mode)
8/Zhuanggu temperature control (computer digital temperature control, one-to-one precise temperature control temperature difference positive and negative 0.5 degrees, intelligent temperature control and 20% energy saving)
9/Chain rail electronic ruler adjustment

2.   Delivery timedelivery after 60 working days from the date of receiving the deposit;

3.   Payment Terms30% deposit, after the completion of the machine, Party A will go to our factory to test and accept, and 70% will be paid before delivery.

4.   Machine Specification:

This machine is desined for producing all size packaging containers, in open-type with thin wall, by using rol-sheet, under high-speed vacum suction foming pocessingg The produts made by this machine can be used for the package of foods, tourist-good, textile, medical,toy, cosmetic, electrical elements and daily used hard ware, etc.



Suitable Sheet

PP, PS, PET, PVC, OPS, degradable materials, PLA. etc.

Structure Features

Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC.Touch screen makes the operation convenient and easy.

Forming type: vacuum and /or pressure forming.

Servo motor feeding, feeding length can be step-less adjusted, High speed and accurate.

Up heater with 4 sections heating, down heater with 3 sections heating. With sheet edge preheating.

u  Heater with itellctual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage

u  Forming and cutting funtion in the same station, controlled by servo motor, high cutting precision.

Stacking type: downward stacking/ manipulator stacking.

u  With quick changing mould system, produts details and running data memorization function,more efficient.

u  Feeding width can be synchronously or independently adjusted in electrical way.

u  Heater automatically push-out when the sheet is over heated.

Auto roll sheet loading, reduce the working load.





DataModelD&M-60

No.

Term name description

Technical Parameters

1

Applicable raw materials

PP, PS, PET, PVC, OPS, degradable materials, PLA. etc.

2

Forming method

Positive and negative pressure forming

3

Maximum forming mold area

Width 780×length 600mm

4

Minimum molding die area

420×300mm

5

Maximum sheet width

810mm

6

Applicable sheet thickness

0.15-2.0mm

7

Maximum punching area

780×600mm

8

Cutting knife line

8M knife line

9

Maximum opening and closing stroke of forming mold

150mm

10

Molded product height

130mm

11

Stacking mechanism

Hanging point stacking

12

Rated power of whole machine

120kw

13

Power consumption

25-50kw

14

Power access

380V/50HZ (three-phase five-wire)

15

Total Weight

16,000kg

16

physical dimension

L13 m×W2.4m×H2.6m

17

Maximum sheet material roll diameter

1100mm (within 500KG)

18

Work efficiency

40 molds/minute (depending on material thickness)

19

cooling method

The mold is cooled by circulating water

ain configuration instructions

No.

Name

Brand

   Control System





Control System

Beckhoff System

Programmable Controller (PLC)

Beckhoff System

Touch display

15 inch color touch monitor

  Pull tab servo system











Pull tab servo system

Switzerland ABB

Pull tab gearbox

High precision planetary reducer

Chain guide

Aerospace aluminum alloy surface hard oxygen treatment

Pull tab chain

Taiwan KMC (double-row guide chain)

Rail (beam) cooling system

The whole beam is cooled by water (circulating water)

Rail adjustment

The guide rail is electrically adjusted and can be adjusted in one direction

  Drive System









Cycles

40 times/minute

Forming Servo System

Switzerland ABB  5.5kw

Punching and cutting servo system

Switzerland ABB 5.5+7.5kw

Stack Servo System

Switzerland ABB

Station structure

Cam structure

  Heating system





Intelligent temperature control system

Zhuanggu (hero) one control one computer digital temperature control

Far infrared ceramic heater

Japan Yamatake temperature measurement module

  Hot stove (stainless steel hot stove)

Ceramic heating brick (Sweden KANTHAL imported heating wire)

cooling system



cooling system

The length of the heating furnace is 3 times of the forming length, the upper and lower furnaces are heated, and the lower furnace has a protective steel mesh. High temperature resistant wire, with current overload protection.

cooling method

8HP air-cooled chiller

  Forming station

Forming station

The mold is cooled by circulating water (6 water inlets and outlets)

Positive air pressure valve

The height of the upper mold table can be adjusted by 50mm

Bottom wind

Japan SMC ultra-high-speed response fluid valve

Install the device

Bottom air adopts atmospheric volume valve

Vacuum pump

German Weili 100M3/H (with large flow vacuum valve)

Cutting station Cutting part

 Cutting part

Servo direct blanking; the height of the forming upper die table can be adjusted by 50mm

Install the device

Equipped with safety hooks for easy operation

Stacking system

Automatic points, automatic stacking function

Winding system

Frequency conversion automatic winding function, adjustable torque function

Security system

1.   1. Equipped with safety grating devices on the left and right sides

Lubrication system

2. Part of the machine is equipped with an emergency stop device

Feeding system

3. Leakage, overload safety switch

Electrical appliances

The guide rail is equipped with a needle valve type oil cup lubrication system

Double material bar automatic mechanical feeding roll device, roll diameter 1100mm, can bear 500KG

AC contactor Japan Fuji

Proximity switch Japan Omron

Switching power supply MEAN WELL

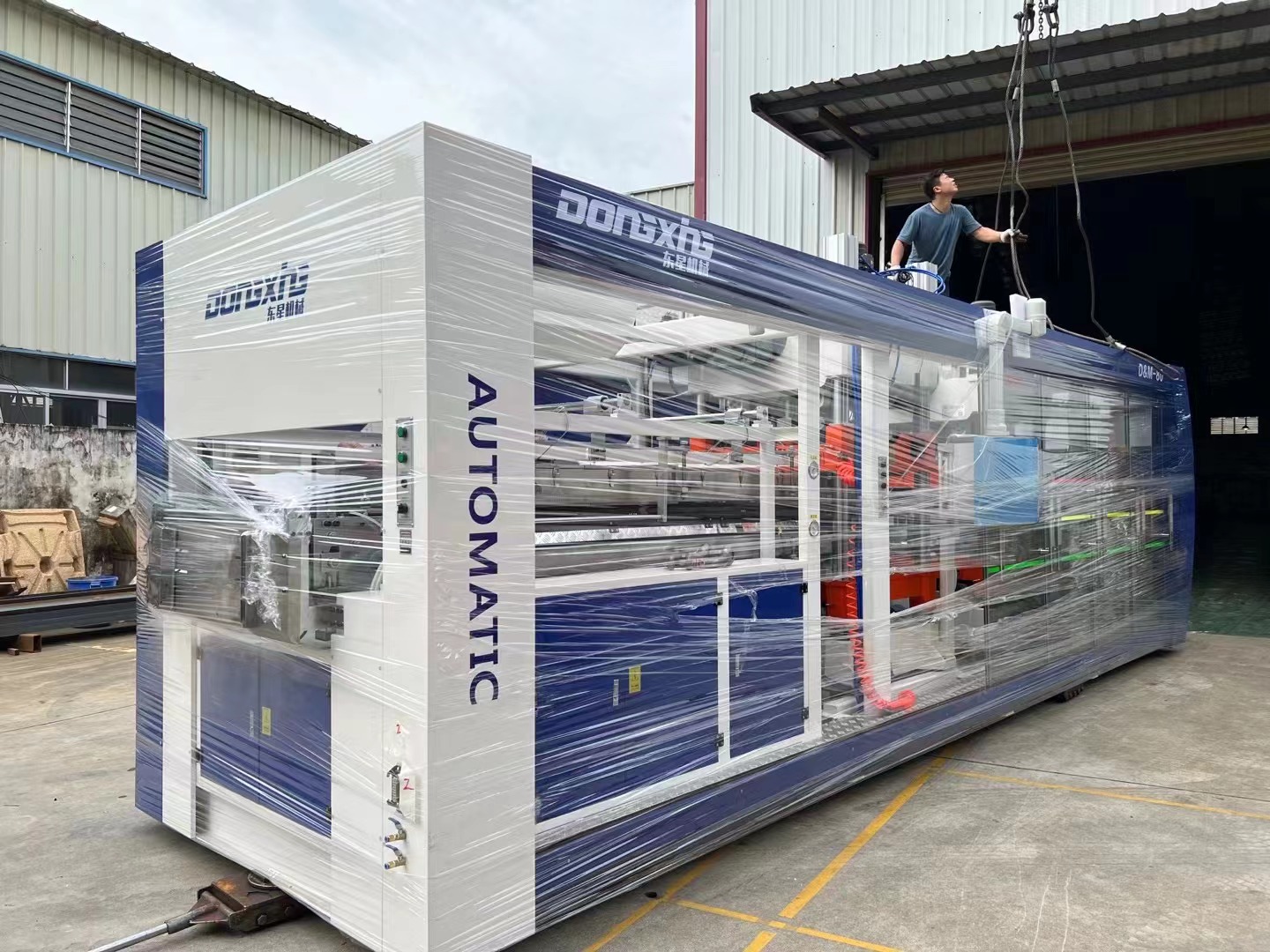

fully automatic plastic thermoforming punching machine


fully automatic plastic thermoforming punching machine
Automatic cups/boxes/plates/containers Plastic Thermoforming machine

fully automatic plastic thermoforming punching machine

5.Product sample


fully automatic plastic thermoforming punching machine
