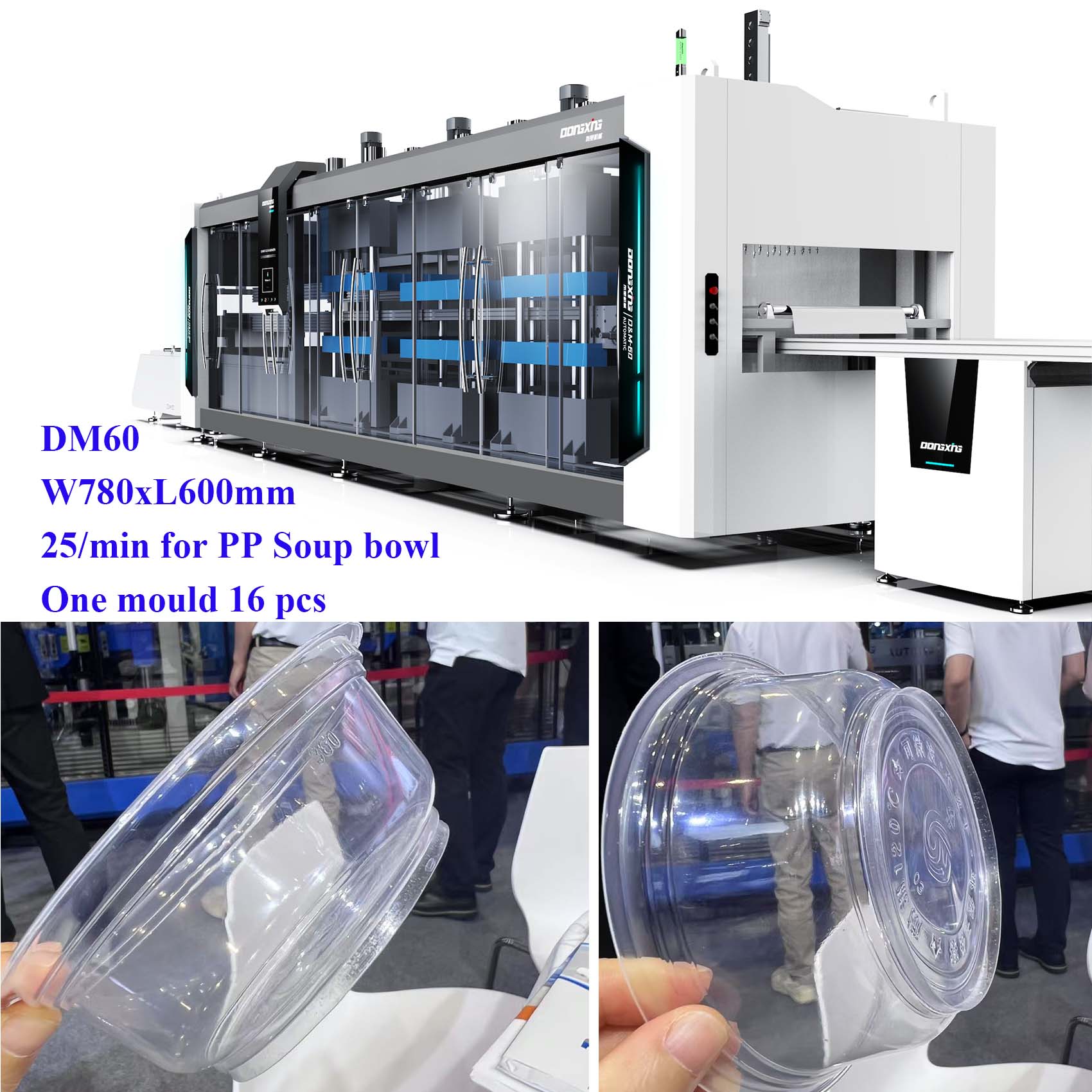

Machine model: DM60, W780xW600mm, 3 station.
Item Name:Pinch-foot bowl, compare to other disposable bowl, this PP bowl has the feet to stand up, not easy to be knocked over.
Application: breakfast bowl, wedding, gathering, picnic, hot soup, Supermarket Delicatessen, noodle bowl Benefits: Microwave at 120 degrees, not hot, recyclabl
Size: Pinch-foot bowl, bowl diameter 12cm, height 6cm, 16 molds, Material production rate: 1 mould 16 pcs, 60%-70%, Speed: 25 molds per minute, Output: 16x25x60 = 24,000 pcs/per hour
DM60 quick advatages:
1. Three stations: positive and negative pressure molding, cutting, stacking
2. Servo control of the upper mold core
3. External eight-type front side mold loading
4. Automatic mold locking device
5. German Beckhoff controller
6. Japanese Yamatake temperature control (Zhuanggu computer digital temperature control, one-to-one precise temperature control temperature difference of plus or minus 0.5 degrees, intelligent temperature control energy saving 20%)
8. All electronic rulers are adjusted at the front, middle and rear of the beam
9. Ductile iron casting at the molding and cutting stations
More about machine details/Quotation please contact: what'sapp/wechat: +8615918086545.
***As urgent to show on Chinaplas 2025, the mold is not molded, the sample is not transparent enough.
Hydraulic die cutting machine:
Machine name
3-station thermoforming machine
Model
DM60(7860)
Suitable Materials
PP, PS, PET, PPET, CPET, PVC, OPS, PLA
Cycle Period
25/min
Formed Area
W780xL600mm
Air Pressure
7BAR
Sheet Width
450-810mm
Min. Formed Area
420x300mm
Travel Depth(From bottom to top)
150mm
Formed Depth
130mm
Heating Power
20-55KW
Rated Power
100KW (Consumption power: 60KW)
Total Weight
14T
Dimension
L11mxW2.8mX3m
