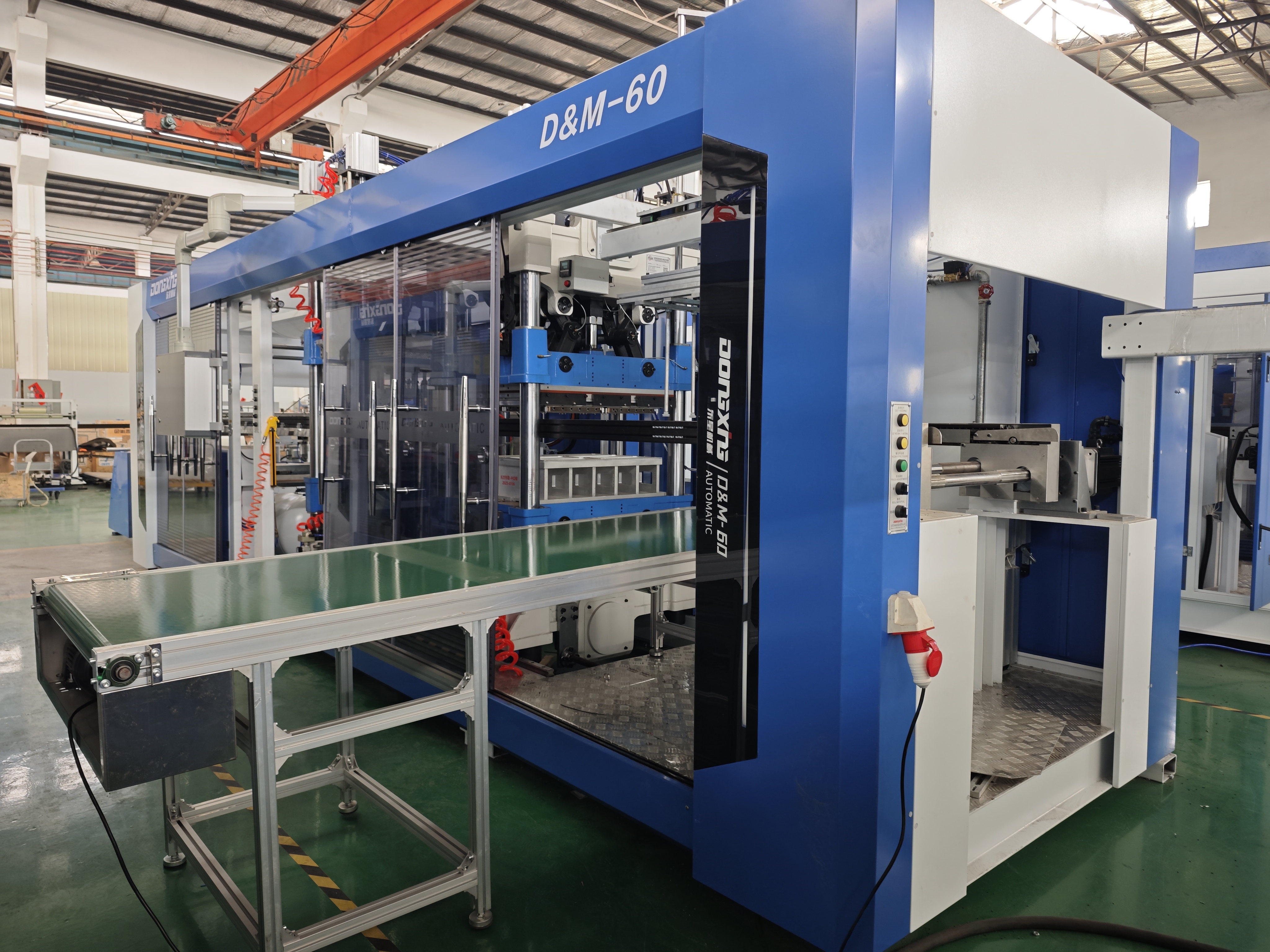

DM60 Fully automatic plastic thermoforming machine/ 3 station

Model:DM60
Request Quote
This item has added to inquiry basket
Enter Inquiry Cart now.
This item was already in your inquiry basket
Please Check your Inquiry Cart .
DM60 Fully automatic plastic thermoforming machine/ 3 station

FeaturesOptionsSpecificationsIndustries



Fast to understand the DM60, if you want to know the answers, please write to tina@hgcuttingsystems.com for the full answers.
  1. What kind of machine of DM60?
  2. Can our products be made by DM60?
  3. How is the speed cycle for per minute?
  4. How fast can we change the mould for DM60?
  5. How to install and lock the mould? Is it automatic?
  6. Which machines stucture similar to? Systems similar to?
  7. Can we test the machine first then purchase?
  8. How many stations available?
  9. How is the max forming area
  10. How is the min forming area?
  11. How is the cutting area?
  12. How is the stacking station?
  13. How big crusher can be working with DM60?
  14. How big compressor can work with DM60?
  15. Which brand crusher and compressor you suggested?
  16. If the DM60 machine with the chiller
  17. Is there a free mould with the DM60?
  18. What price for a whole set of mould?
  19. What brand of Ceramic heater?
  20. Guanggu is durable of your standard heating systems?
  21. What other choice can we have for heating system for DM60?
  22.  Can we changes the parts and what is optional?
  23. What brand for Vaccum pump?
  24. What brand of PLC control systems?
  25. What brand for Servo motor?
  26. How many servos in the whole machine DM60?
  27. How is the rated power for each part? And the whole machine power?
  28. What is brand of solid relay and contactor?
  29. What's the control valve brand?
  30. How is the station made
  31. From which factory the station made?
  32. What NO. is the lubricate oil
  33. What is size of the whole machine Dm60?
  34. And what is weight?
  35. Your what'sapp/email? tina@hgcuttingsystems.com; +8615918086545
  36. How to load the machine DM by sea shipment?
  37. What spare parts with the DM60?
  38. What is the DM series compare to other supplier same machine?
  39. Do you make traditional forming machine and cutting machine?
  40. Who can help to set up the DM60?
  41. Who will do the maintenance?
  42. If the operation difficult? Who can help?
  43. Can it support our language? How many language support by DM60?
  44. Can you please show me your touch screen of DM60?
  45. For more details for DM series, where to see more info
  46. How many years have you manufactured the auto thermoforming machine?
  47. Can you please show me your factory?
  48. Where is the factory Dongxing location?
  49. Are you working for Dongxing and Honggang? Yes, the two factories share same boss.
  50. What price of the DM60 3 station with standard configuaration?
  51. What price of the DM60 3 station with upgrading parts and quality?
  52. Except DM60, what other models can we choose?
  53. Do I really need the ful-auto thermoforming machine?
  54. Except DM series, What other machine series can we choose?
  55. It's beyond my budget, Can we get lower price?




1. 3/4
 Stations Positive and negative pressure thermoforming machine
1/ Three stations: positive and negative pressure forming, cutting, stacking
2/Forming upper mold core servo control
3/ Outer eight models of front loading mold
5/ Automatic mold clamping device
6/ Chain track eight-character function (applicable to PP, full degradation Material with high material sag)
7/ German Beckhoff controller, servo drive system is Swiss ABB (motion control absolute value mode)
8/Zhuanggu temperature control (computer digital temperature control, one-to-one precise temperature control temperature difference positive and negative 0.5 degrees, intelligent temperature control and 20% energy saving)
9/Chain rail electronic ruler adjustment



Machine Specification:

This machine is desined for producing all size packaging containers, in open-type with thin wall, by using rol-sheet, under high-speed vacum suction foming pocessingg The produts made by this machine can be used for the package of foods, tourist-good, textile, medical,toy, cosmetic, electrical elements and daily used hard ware, etc.

Application:

PP, PS, PET, PVC, OPS, degradable materials, PLA. etc.

Structure Features:

  1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC.Touch screen makes the operation convenient and easy.
  2. Forming type: vacuum and /or pressure forming.
  3. Servo motor feeding, feeding length can be step-less adjusted, High speed and accurate.
  4. Up heater with 4 sections heating, down heater with 3 sections heating. With sheet edge preheating.
  5.   Heater with itellctual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage
  6. Forming and cutting funtion in the same station, controlled by servo motor, high cutting precision.
  7. Stacking type: downward stacking/ manipulator stacking.
  8.  With quick changing mould system, produts details and running data memorization function,more efficient.
  9. Feeding width can be synchronously or independently adjusted in electrical way.
  10. Heater automatically push-out when the sheet is over heated.
  11. Auto roll sheet loading, reduce the working load.
Parameters:

No.

Term name description

Technical Parameters

1

Applicable raw materials

PP, PS, PET, PVC, OPS, degradable materials, PLA. etc.

2

Forming method

Positive and negative pressure forming

3

Maximum forming mold area

Width 780×length 600mm

4

Minimum molding die area

420×300mm

5

Maximum sheet width

810mm

6

Applicable sheet thickness

0.15-2.0mm

7

Maximum punching area

780×600mm

8

Cutting knife line

8M knife line

9

Maximum opening and closing stroke of forming mold

150mm

10

Molded product height

130mm

11

Stacking mechanism

Hanging point stacking

12

Rated power of whole machine

120kw

13

Power consumption

25-50kw

14

Power access

380V/50HZ (three-phase five-wire)

15

Total Weight

16,000kg

16

physical dimension

L13 m×W2.4m×H2.6m

17

Maximum sheet material roll diameter

1100mm (within 500KG)

18

Work efficiency

40 molds/minute (depending on material thickness)

19

cooling method

The mold is cooled by circulating water

Picture details
