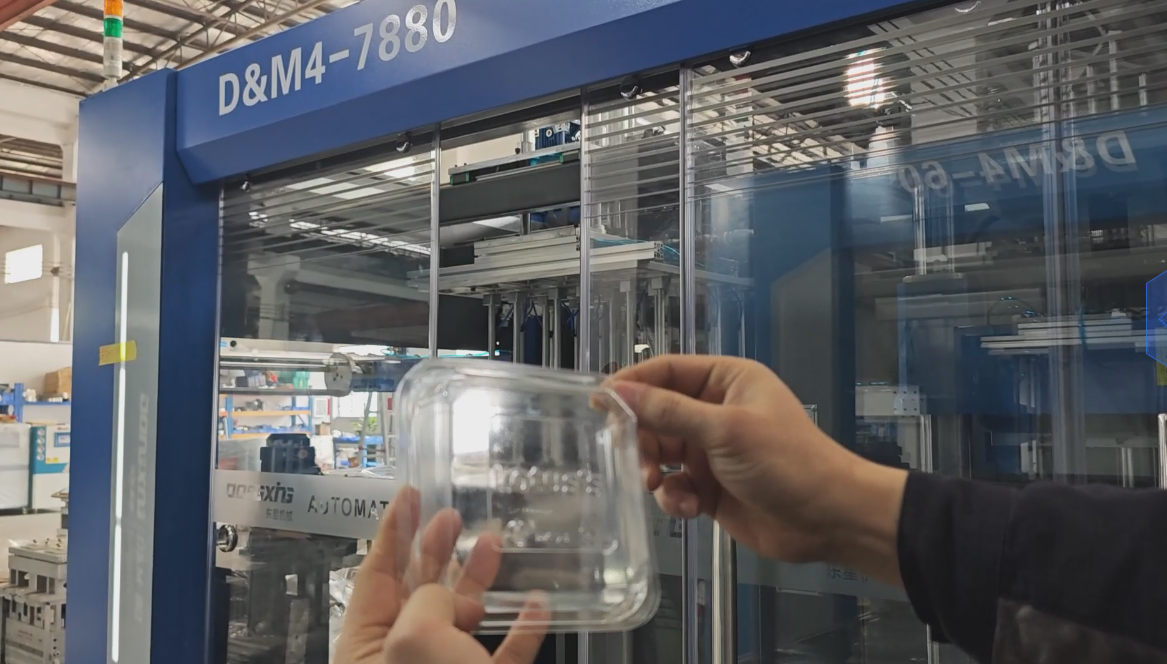

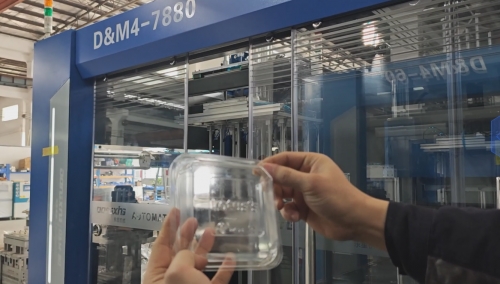

Industry Applications for DM4-7880 4-Station Thermoforming Machine

The DM4-7880 is a four‑station pressure & vacuum forming machine that integrates heating, forming, cutting, and stacking – with an optional punching station at station 3. This configuration serves industries that require high throughput, clean edges, and optional hole punching or labeling. Below are the primary sectors where the DM4-7880 delivers proven results.

Food Packaging – Fruit Trays, PP Lunch Boxes, Clamshells

Fresh produce and ready‑to‑eat meals demand trays with consistent wall thickness, smooth sealing flanges, and ventilation holes. The DM4‑7880 with optional horizontal punching (station 3) produces burr‑free vent holes directly after cutting, eliminating secondary punching and manual handling. In‑mould trimming ensures clean edges that do not compromise heat sealing. Automatic stacking reduces contamination risk. The machine runs PET, RPET, PP, PLA, and other food‑contact approved materials at up to 30 cycles per minute. Quick mold change (15‑20 minutes) allows seasonal product switching without long downtime.

Electronic Component Trays & ESD Packaging

Anti‑static trays for ICs, connectors, and SMT components require tight tolerances (typically ±0.1mm) and dust‑free cut edges. The DM4‑7880’s servo‑driven cutting station achieves precise trimming without particle generation. The rigid QT500 ductile iron mold table ensures stable cutting force across the full 780x800mm forming area. Optional anti‑static material handling and cleanroom‑ready design are available. Four stations allow integration of in‑mold labeling for part numbers or lot codes without slowing production.

Medical Blister Packs & Sterile Packaging

Medical device and pharmaceutical blister packs require repeatability, cleanliness, and full traceability. The DM4‑7880 features oil‑free bearing stations and a sealed cutting area to minimize contamination risk. The Beckhoff PLC provides complete production data logging (cycle counts, alarms, temperature profiles). In‑mould trimming eliminates secondary handling that could introduce particles. Automatic stacking reduces human touch. Optional laser punching (replacing mechanical punch) enables ultra‑clean holes for advanced blister designs. The machine is compatible with medical‑grade PVC, PETG, and cyclic olefin copolymers.

Industrial & Hardware Blisters

Heavy‑duty trays for tools, automotive parts, and power tools need thicker sheets (up to 2.0mm) and high impact resistance. The DM4‑7880’s pressure & vacuum forming combination ensures deep draw without thinning. The wide forming area (780x800mm) accommodates large parts or multiple cavities per cycle. Optional four‑times heater provides extra heating capacity for thick or filled materials. In‑line crushing of edge trim and punch waste reduces scrap volume and supports in‑house recycling.

Consumer Goods & Cosmetics Inserts

Elegant inserts for perfume, jewelry, or electronics require smooth surfaces and precise cutouts. The DM4‑7880 with servo‑driven forming and cutting achieves cosmetic‑grade finishes. Optional in‑line labeling or hot foil stamping can be integrated at station 3 or 4. The machine’s quick changeover makes it suitable for high‑mix production of small to medium batches.

Why the 4-Station Design Matters for Your Industry

Compared to a standard 3‑station line, the DM4‑7880 adds a dedicated station (station 3) that can be configured as punching, labeling, or laser cutting. This keeps the primary cutting and stacking stations uninterrupted, resulting in higher overall output when extra processes are required. For fruit packagers, this means vent holes without slowing the forming cycle. For electronics manufacturers, it means in‑mold labeling without adding a secondary machine. The fourth station makes the DM4‑7880 a true “one machine, one operator” solution for complex packaging lines.

Need industry‑specific validation? We have supplied DM series machines to fruit packers in Spain, medical blister converters in Germany, and electronics tray producers in Japan. Contact us to request sample testing with your material and design.
