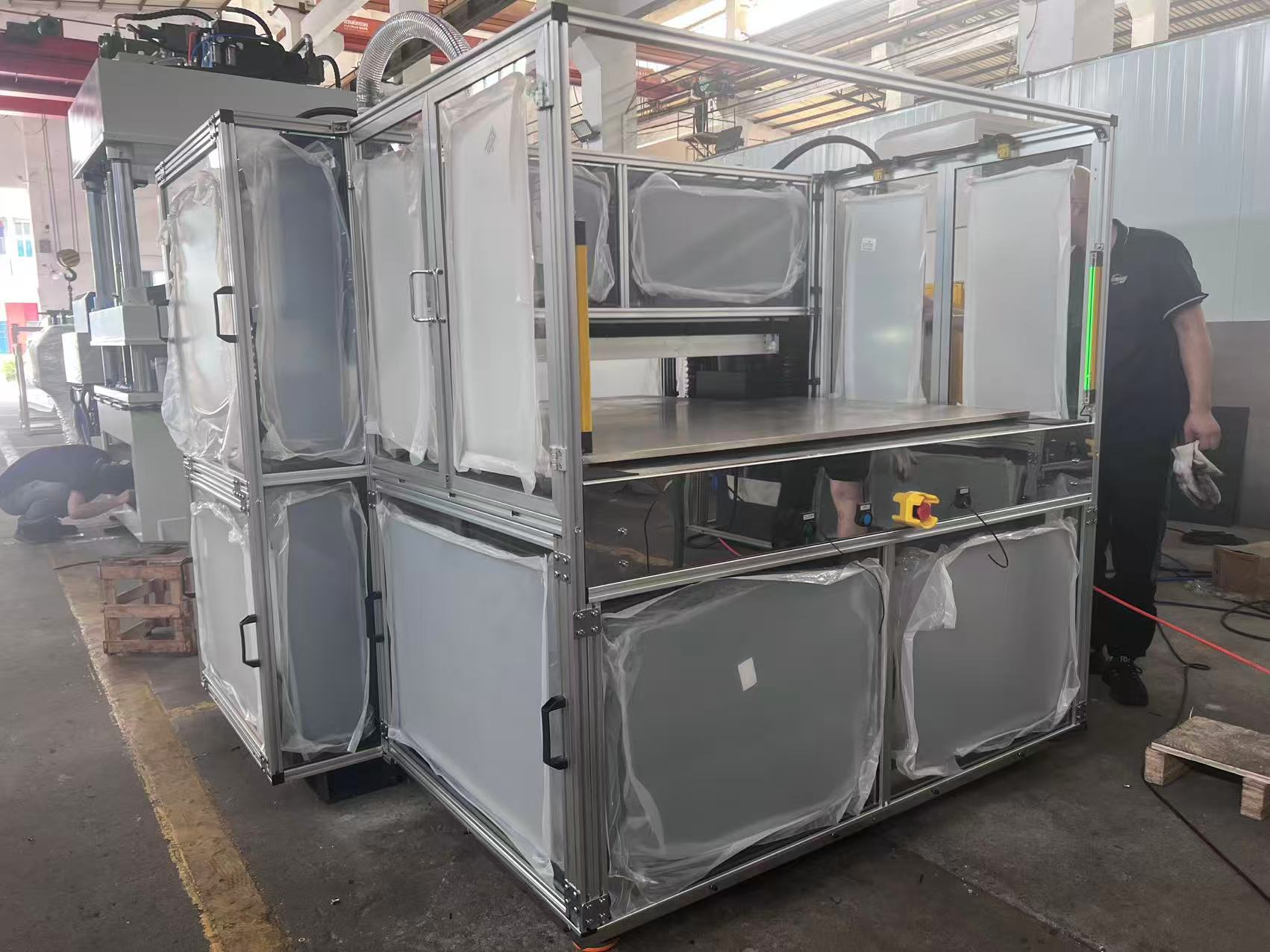

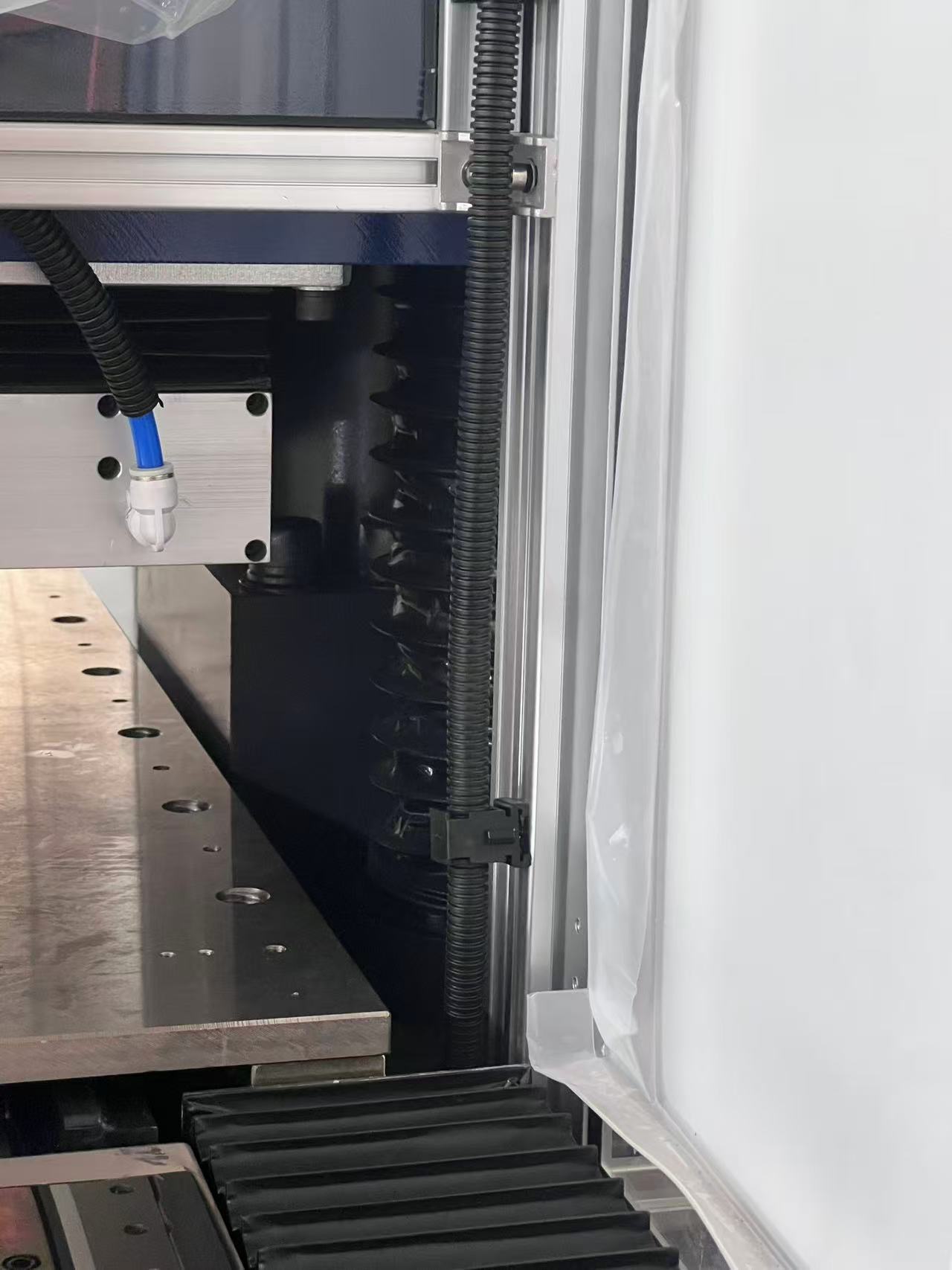

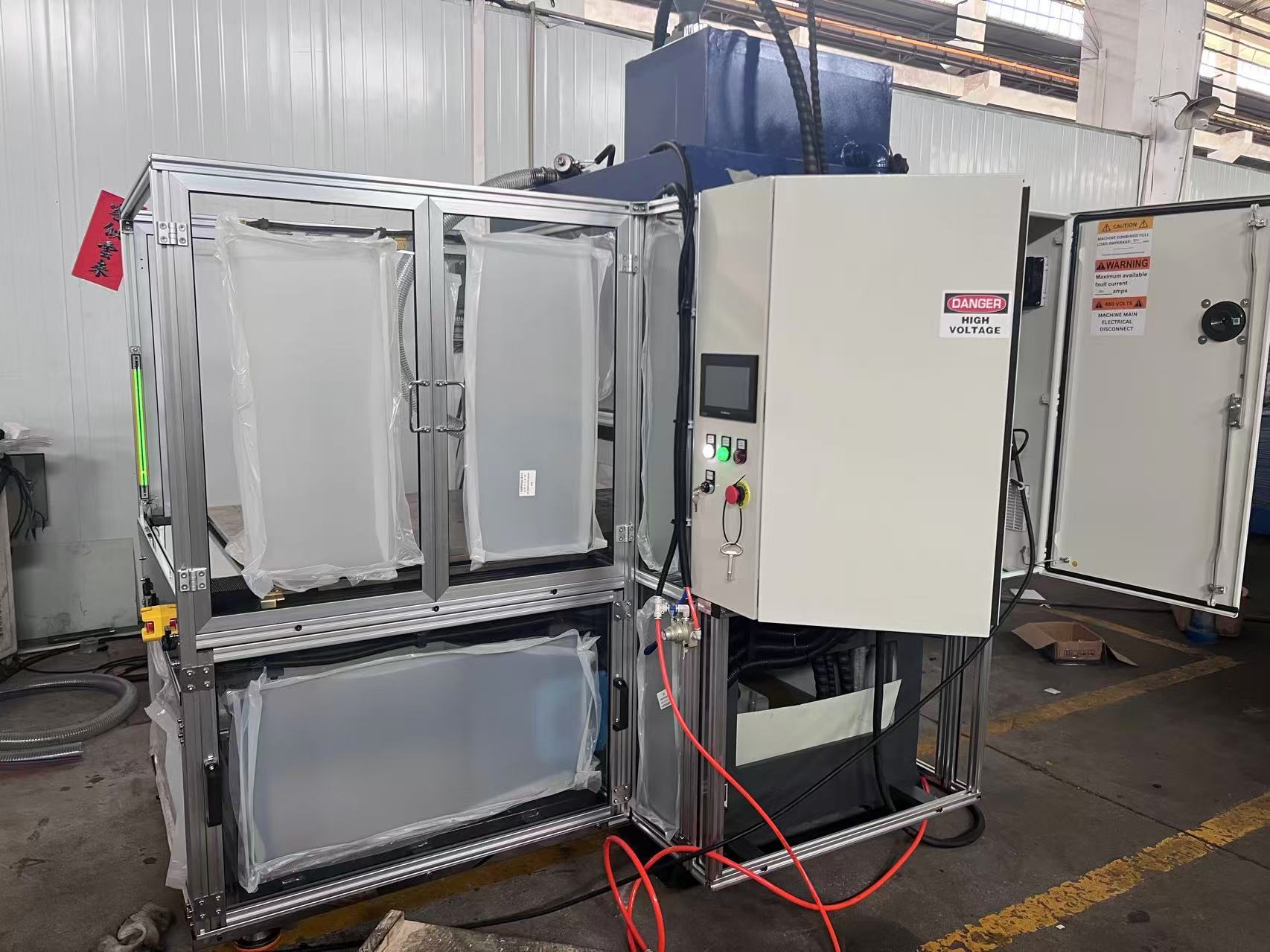

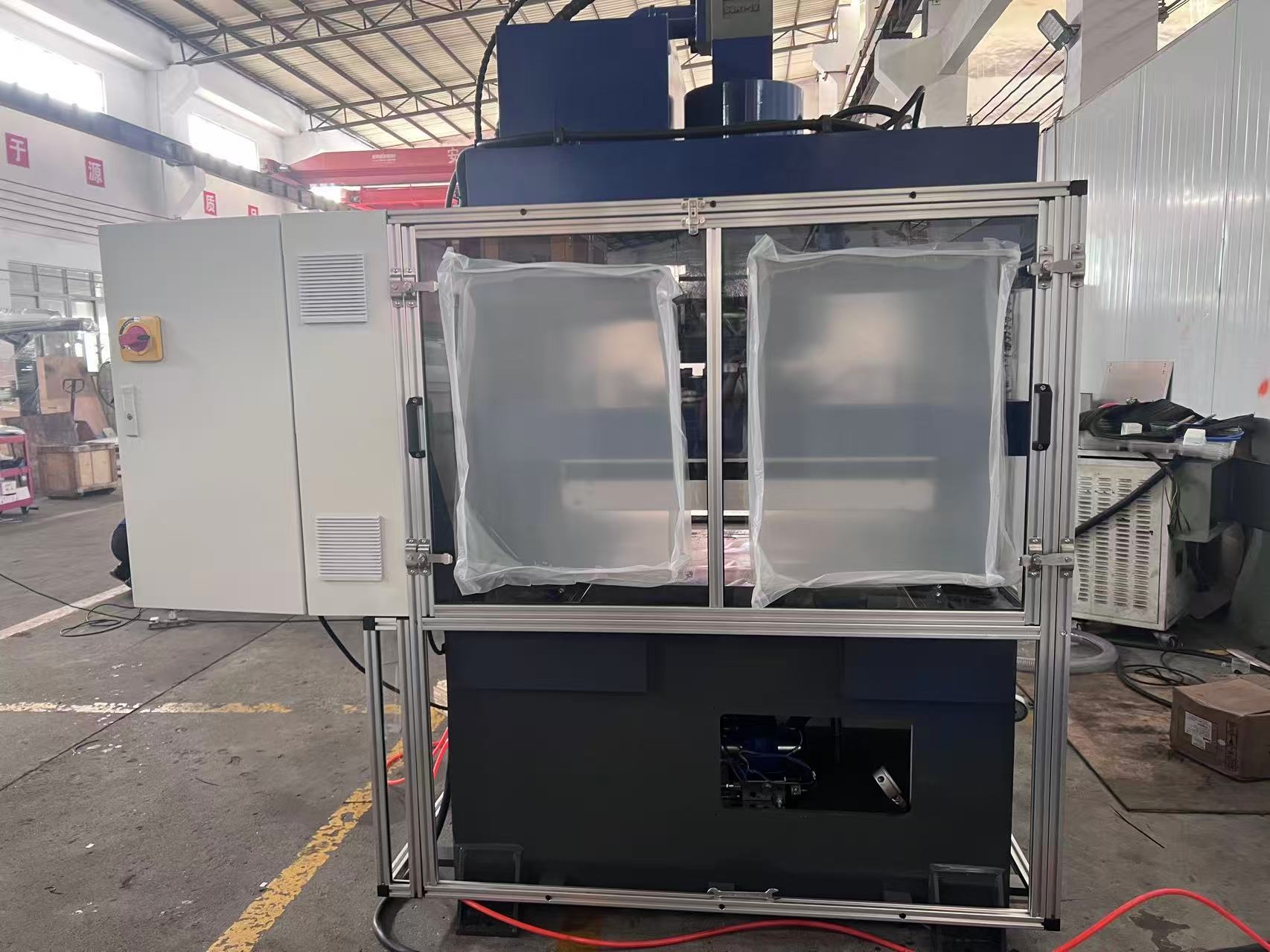

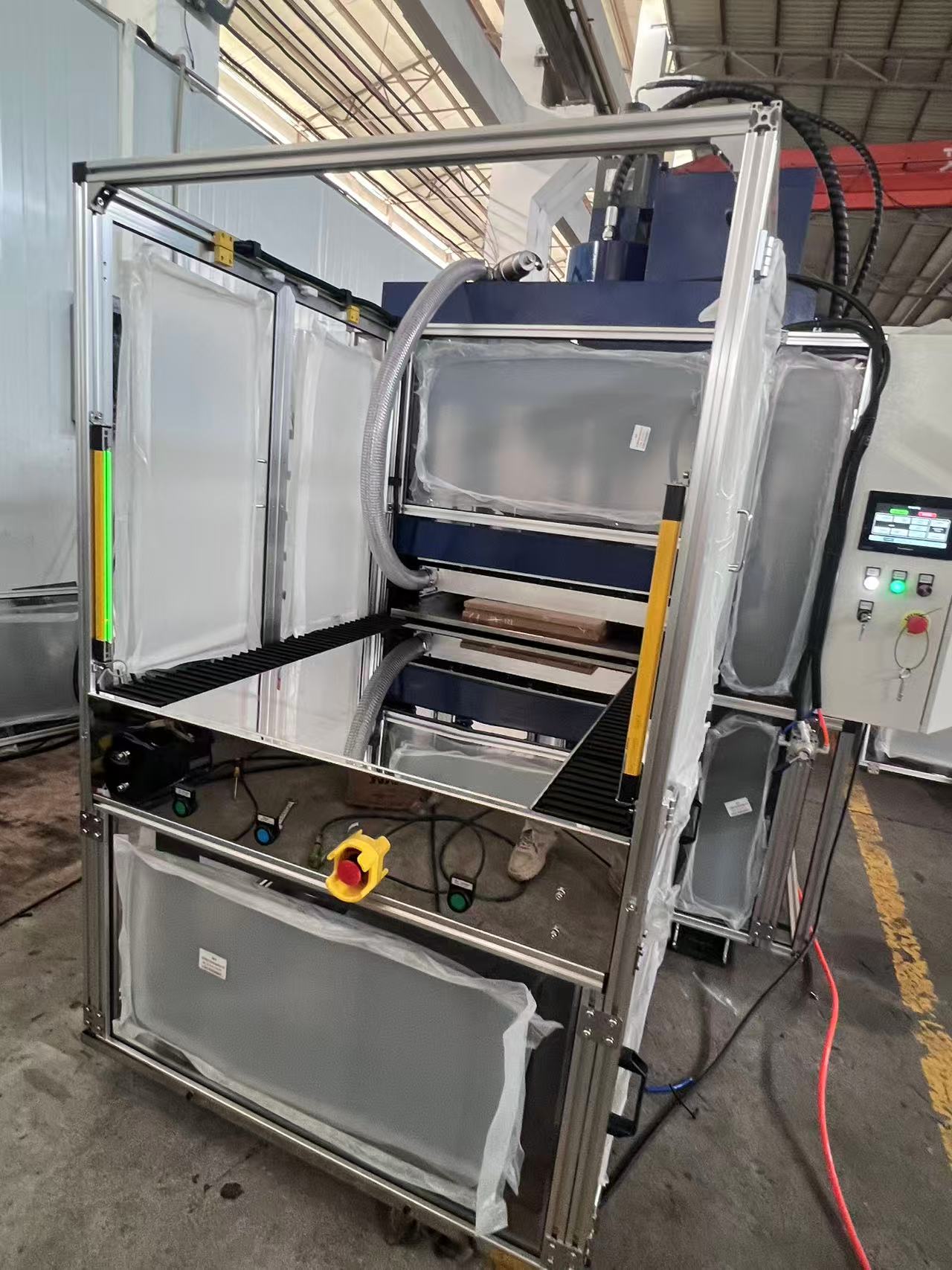

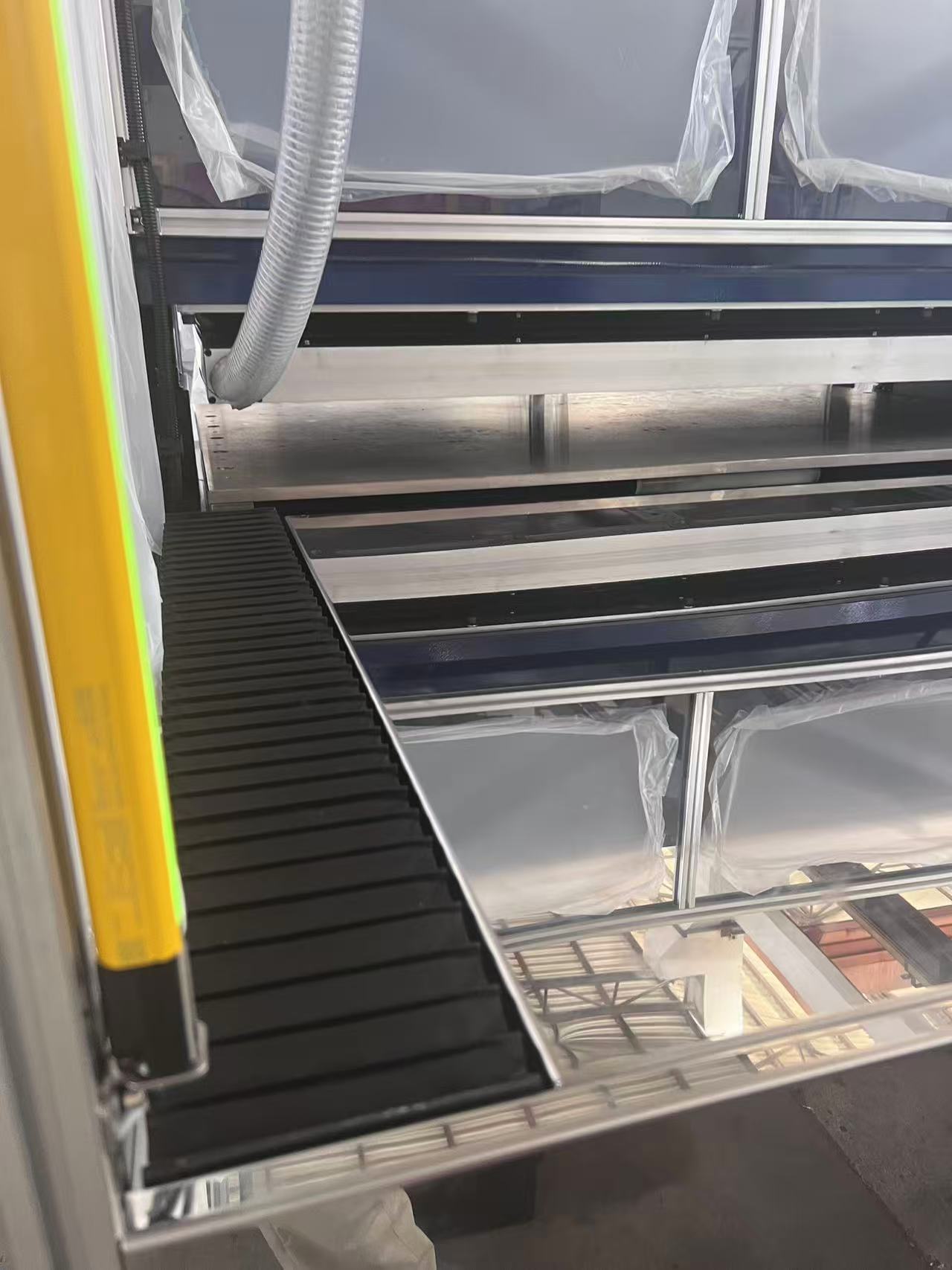

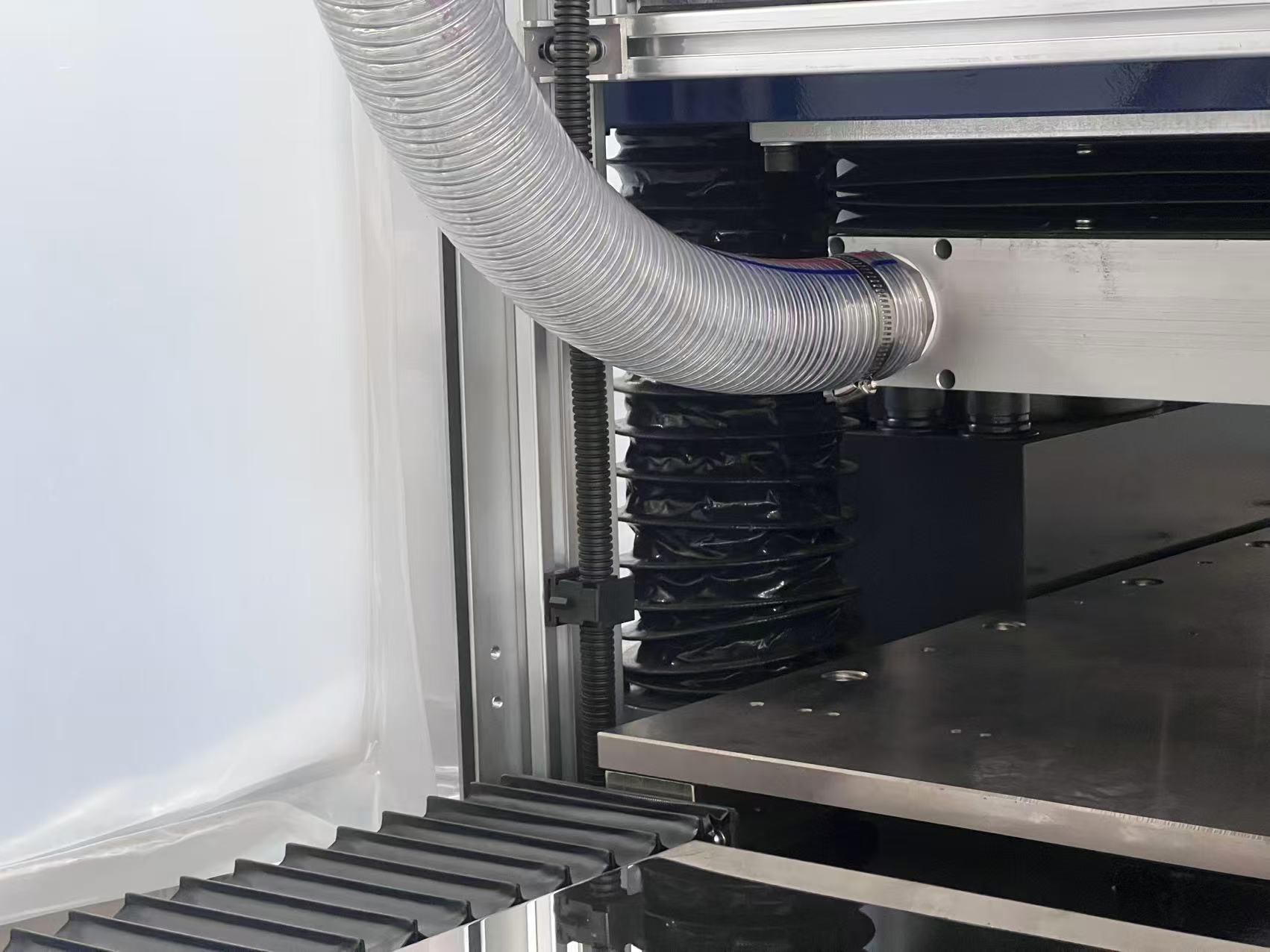

Full servo die cutting machine is also suitable for cleanroom requirements, when without oil. Please click below picture to reach the introduction page for the servo motor cutting machine.
Cutting force
50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area
1400x810mm, 1400x710mm, 1600x810mm as request.
Motor
4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke
max 180mm
Feeding type
Semi-auto feeding, by pressing the buttons to feed the feeding table
Open
50-230mm
Control system
Fatek PLC controlled
Table feeding speed
Adjustment
Working tables
single table, double tables
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
3000-100000kgs
Feeding materials
Sheets, with limit in feeding length
Cutting Thickness
0.1mm-90mm
Die Setting
In touch screen, auto setting
Cooling
Fan, water recycle
Cutting Head Height
Adjustment
Color
Blue standard, or as request
Counting
Auto counting
Welcome to visit our factory.
