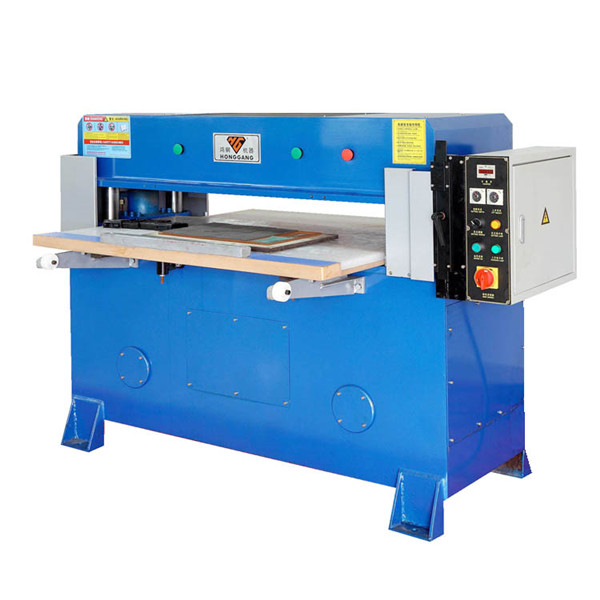

China EVA Foam Press

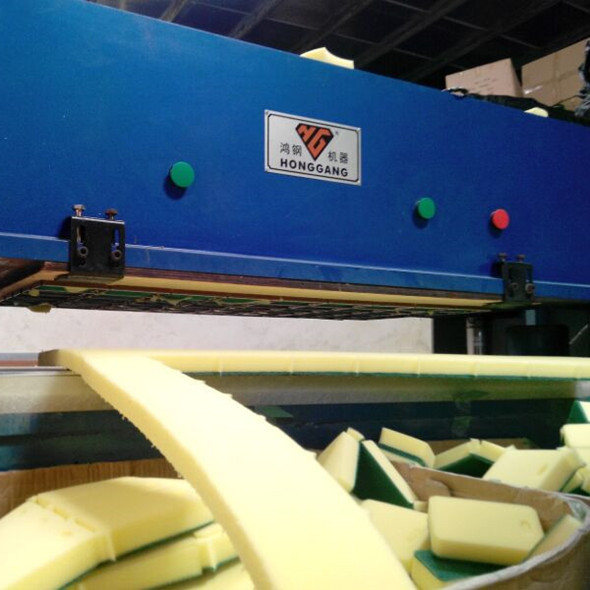

used for die cutting foam,eva foam,cleaning sponge,EPE,scouring pad material and so on.
Youtube：
https://www.youtube.com/playlist?list=PLZTnvjIksKDhZ1rfG3xETiTz_bsMx1ezr
The cutting part is indispensable procedure in the production line,this machine is in charge of cutting.
eva foam cutting machine is very popular in our country and it widely used in many country.
feature:
1.Auto-balance structure of double-cylinder,four-column and selfbalance connecting rod,makes sure equal pressure in any working area.
2.Slow down when the cutting die touches material,to confirm the precision between upper and bottom for thick materials.
3.Stroke adjustment device,makes stroke simple and correct to adjust with cutting die, cutting board and materials.
4.Central automatic lubrication system,increases machine durability,prolong the working time.
5.Suitable for single-layer or multi-layer sheet or roll materials.
Please tell your doubts,we will serve you wholeheartedly.
contact us.
We have 20 years of experience.
We have perfect after-sale technical and support overseas.
We can custom fit your machine for you.
| Cutting force |
30T,40T, 50T, 60T, 80T, 100T |
| Cutting area |
610x1220mm, 610x1600mm,etc as request. |
| Cutting Plate |
610x1220mm, 610x1600mm,etc as request. |
| Model |
HG-A/B 30T,40T,50T,60T,100T |
| Motor |
2.2kw-4kw |
| Stroke |
50-240mm,50-160mm |
| Voltage |
3 phase 220/380/415/440V 50/60HZ |
| Net weight |
1900kg-2800kg |
| Dimension |
2330x1320x1260mm,1950x1320x1260mm |
| CBM |
4.26cbm, 3.8cbm |
Remark: We can make the machine according to your specifically order, for example the color, the motor information ,the working table etc.
