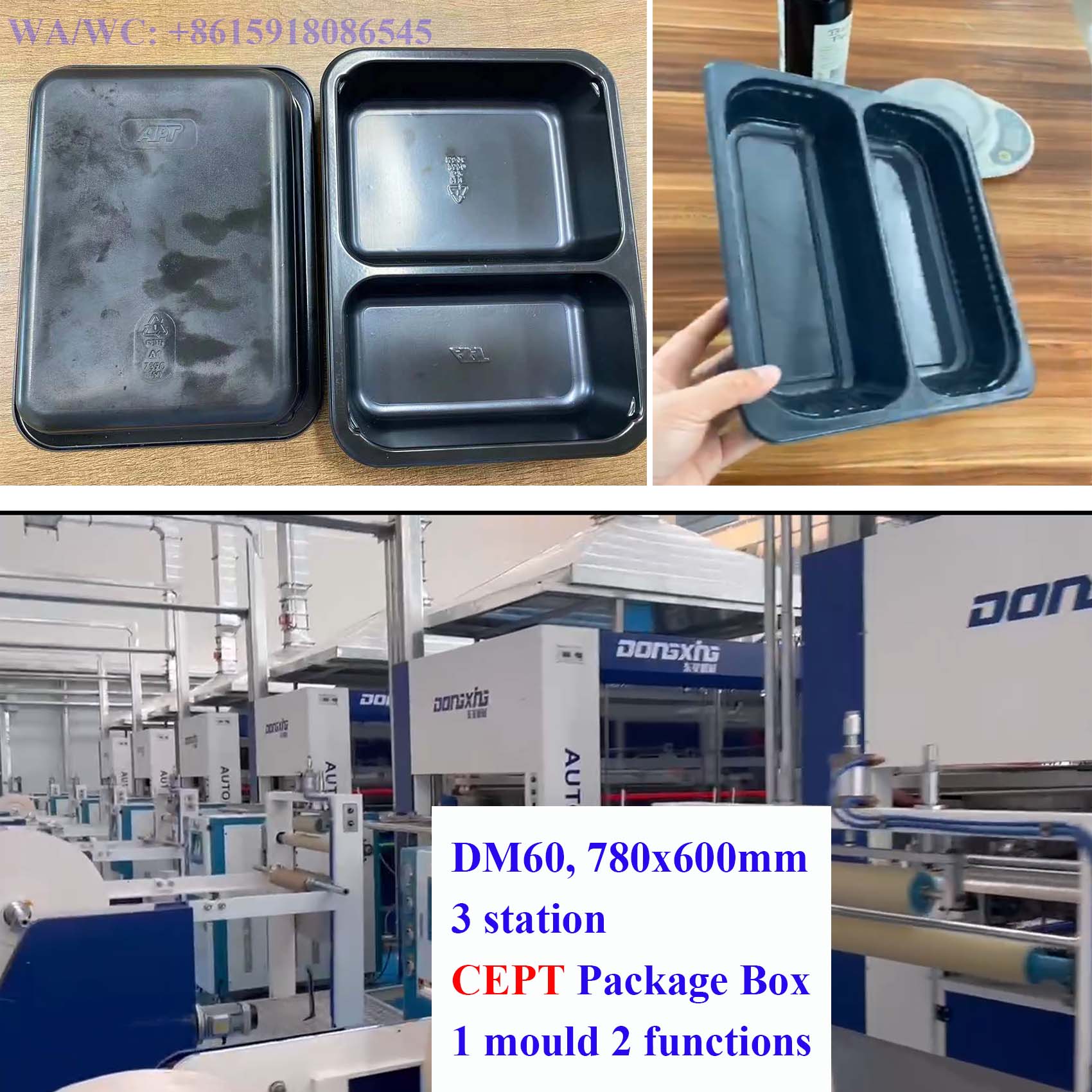

CPET Box Making By DM60

A: Max speed 40 cycle/min,

PP 0.7/0.5mm 25 cycle/min

CPET 10-12 cycles/min

2. Quick mold change

1) DM60 with quick lock device, 30 minutes to change full set molds of thermoforming and Die cutting.

2) Equipped with auxiliary mold loading tools, front mold loading, with pulley push, safe.

3) The mold has automatic positioning function after pushing, and has a set positioning key slot, which is convenient.

4) Equipped with automatic mold locking function, reducing the time of manual fixation, fast

5) The mold can be shared with existing machines.

3. All servo

A. Yes full servo, 7-9 servos one machine, pulling feeding 1, forming 3, cutting 2, stacking 1/2/3,

4.Auto Chain rail adjustment

A: Yes. The guide rail is electrically adjusted,  can be adjusted in one direction

5.Quick heating

A: Yes. 2 times heating length. Ceramic heating brick (Sweden KANTHAL imported heating wire) .

6.And all other standard features, yes please see the quotation details.

7. Training.

A: 1 week free trainning in our factory.

8. Station made in same factory, Expert in Cutting station at the same time. Cutting mold table is iron-cast(Ductile iron process), then fabricated by CNC in 1 pass. Even the frame (for putting Forming and Cutting station on) is milled by CNC after welding.

9. Monitor actual temperature of each brick-heater. Using Sweden brick, Japanese temperature probe, German control software

a. Save more than 20% of electricity compared with traditional ones

b. The temperature control accuracy of the plastic sheet absorbing heat is plus or minus 0.3

c. Extremely fast temperature compensation. During the alternating process of sheet forming and pulling, we can achieve the maximum output of heater radiation for the sheet.

d. The system has alarm functions for thermocouple disconnection, reverse connection, and overtravel

e. The system has a load circuit heartbeat detection function. And real-time online communication detection function

f. We have the most advanced real-time heater open circuit, fuse open circuit, thyristor status alarm and monitoring

g. All control points are single-point temperature control, one control one

h. The heating temperature zone is long, especially for PP products, the efficiency is significantly improved, and the working efficiency can reach up to 30 times per minute.

10. Two stacking structures are available, upper and lower stacking and robot mold grabbing, which improves the safety and hygiene of food containers and facilitates manual packaging operations

11. Upper and lower multi-link structure, stable and energy-saving
