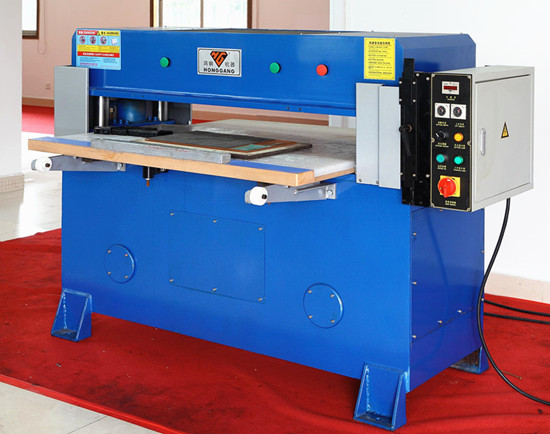

Beam Shoe Leather Clicker Press is used for cutting materials into shapes using in shoes: leather materials such as tanning leather or synthetic leather, fabric lining, fabric shoe upper, shoe insole for shoes making. As a basic shoe-making equipemnt, clicker press is neccesary to every shoe making factory.
HG as a hydraulic leather clicker press manufacturer in China, focuses on beam clicker press, which is designed with full fixed head, or receding head, and auto-balance structure of four columns, double cylinders. When working, the structure with self-balance rod will keep the steady and precision of cutting.
Not like swing arm leather clicker press and travel head clicker press, beam clicker press is suitable for large hide leather sheet, or rolled materials with roller, as well for a few cutting die nesting together to cut one time to save materials and time.
Features:
1) Auto counting function
2) Large cutting area to 558x1600mm, 610x1600mm
3) Large cutting force to 25 tons, 30 tons, 40 tons
4) Cutting depth, cutting forces easy to adjust.

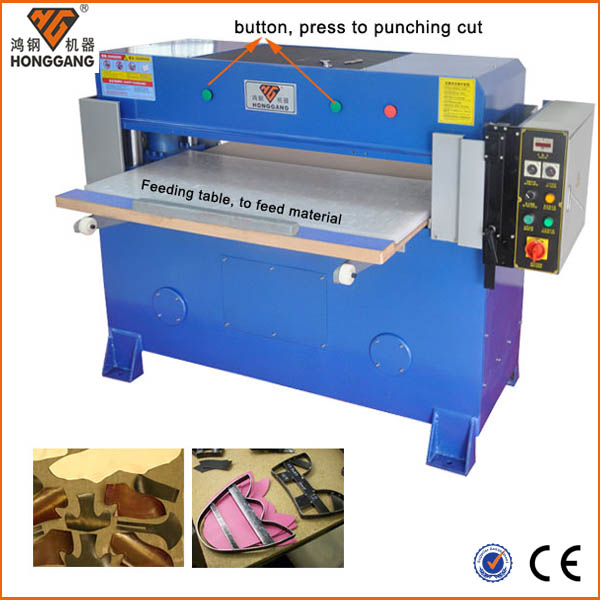

5) Press buttons to cut, double-hand working for safety
6) Easy to set the cutting stroke 50-160mm
7) Multi-layer material cutting is available
The cutting force and area for the model can be optional.
PLC control can be optional to operate more convennient.
Roller to feed is optional.
PP board is optional, and one piece is free with machine.
Cutting force
25T
Cutting area
558x1600mm
Cutting Plate
558x1600mm
Model
HG-A25T
Motor
2.2kw
Stroke
50-160mm
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
1600kg
Gross weight
1650kg
Dimension
2330x1320x1260mm,1950x1320x1260mm
CBM
4.26cbm
Used for Leather shoes, shoes lining, shoes upper, shoes insole, shoes compoments, shoes accesaries.
Cutting materials of leather, PU, PVC, fabric, rubber, nonwoven textile, insole, board...
Other usages: Leather goods
