Rigid PET is of course hard for die cutting, as usual at least 100 tons to cut such rigid thick PET.
But for this project, it's harder. You can see the PET try is very hard, and thickness upto 2mm.
What is more, the cutting pattern is so complicated!
There are 64 square holes need to cut off precisely, also it requires positioning!

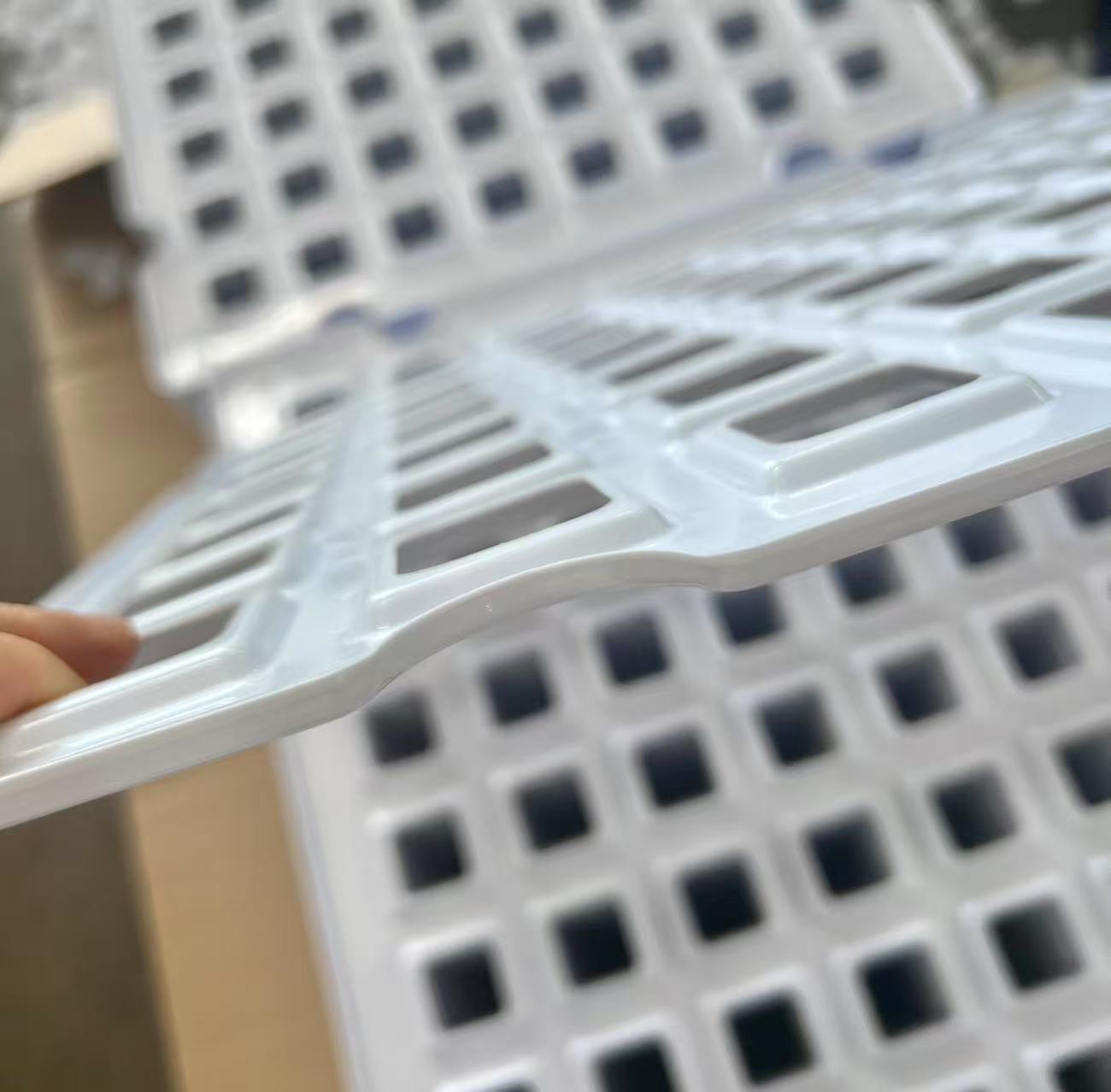

The 64 square holes is thermoformed a little bit raised on the tray, so it's like printing cutting.

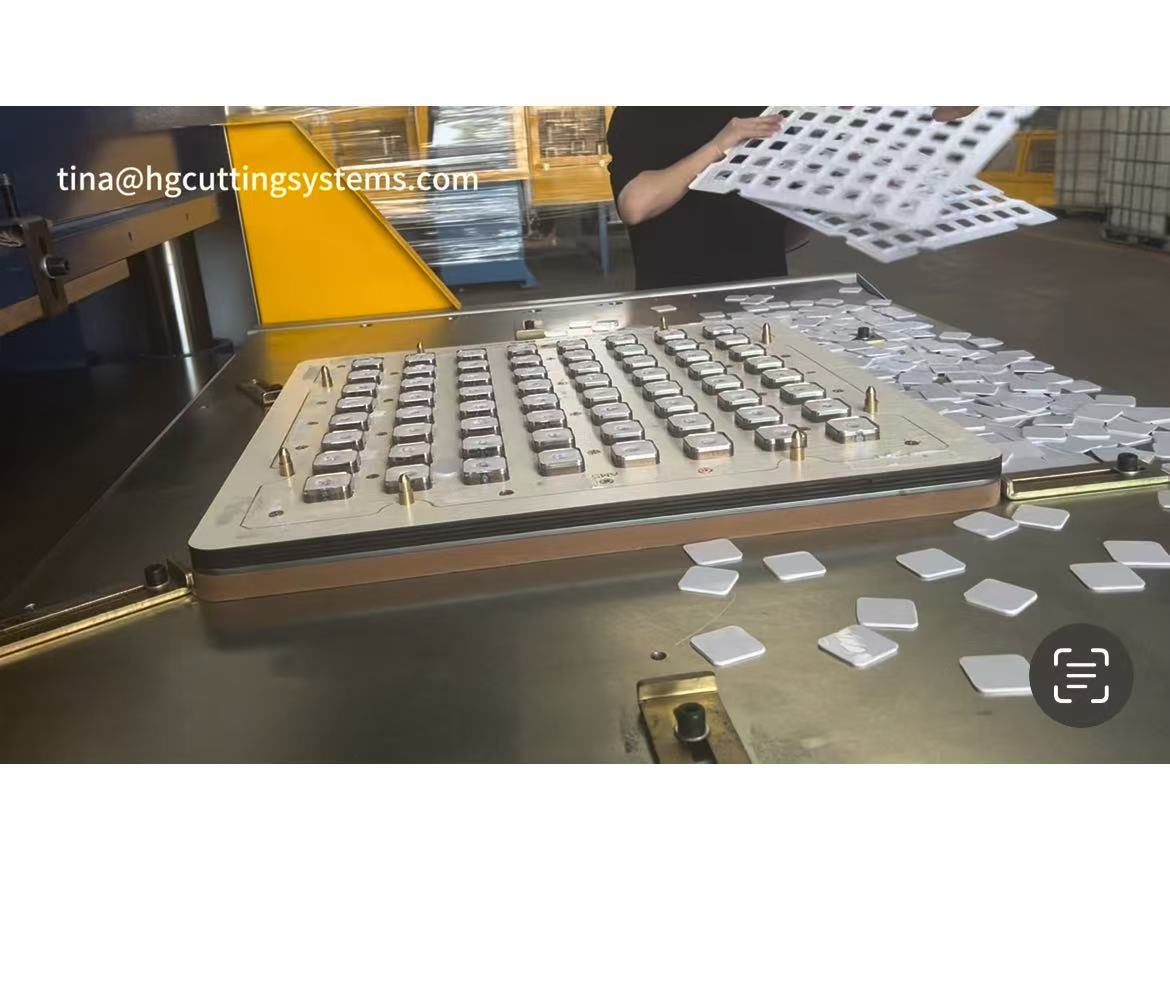

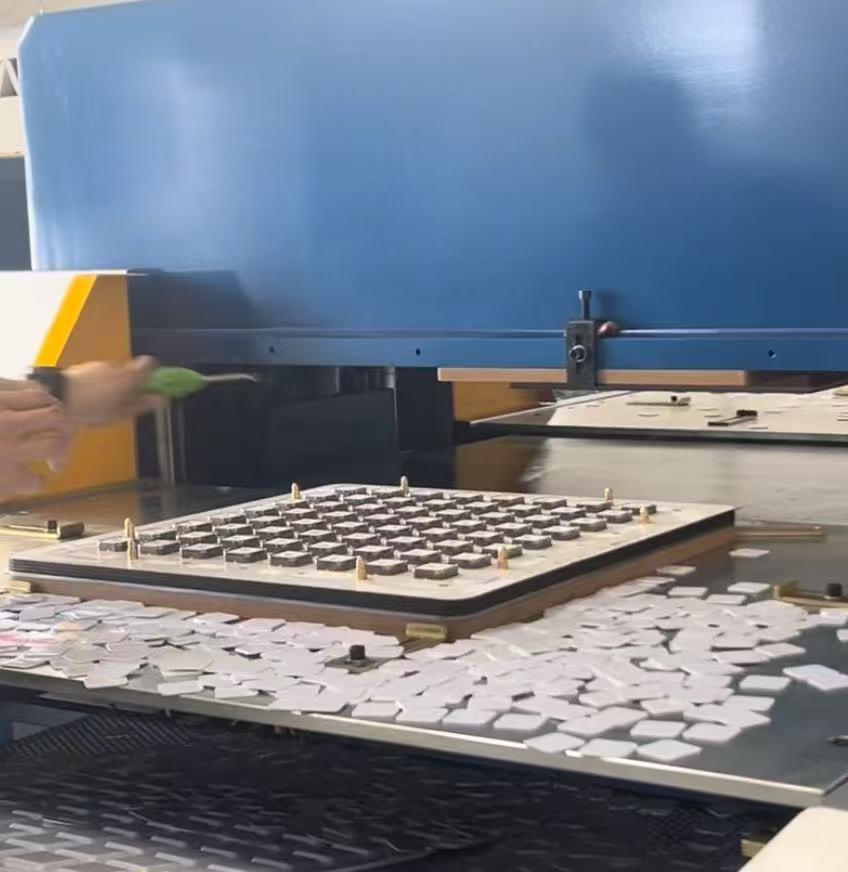

So you can see the positioning needles at 4 corners of the cutting dies.
Such job requires high repeat accuracy to the hydraulic die cutting machine to cut at the same position.
For more, it requires high pressure, 150 tons, with precise cutting.
Anyway, HG machine can do.

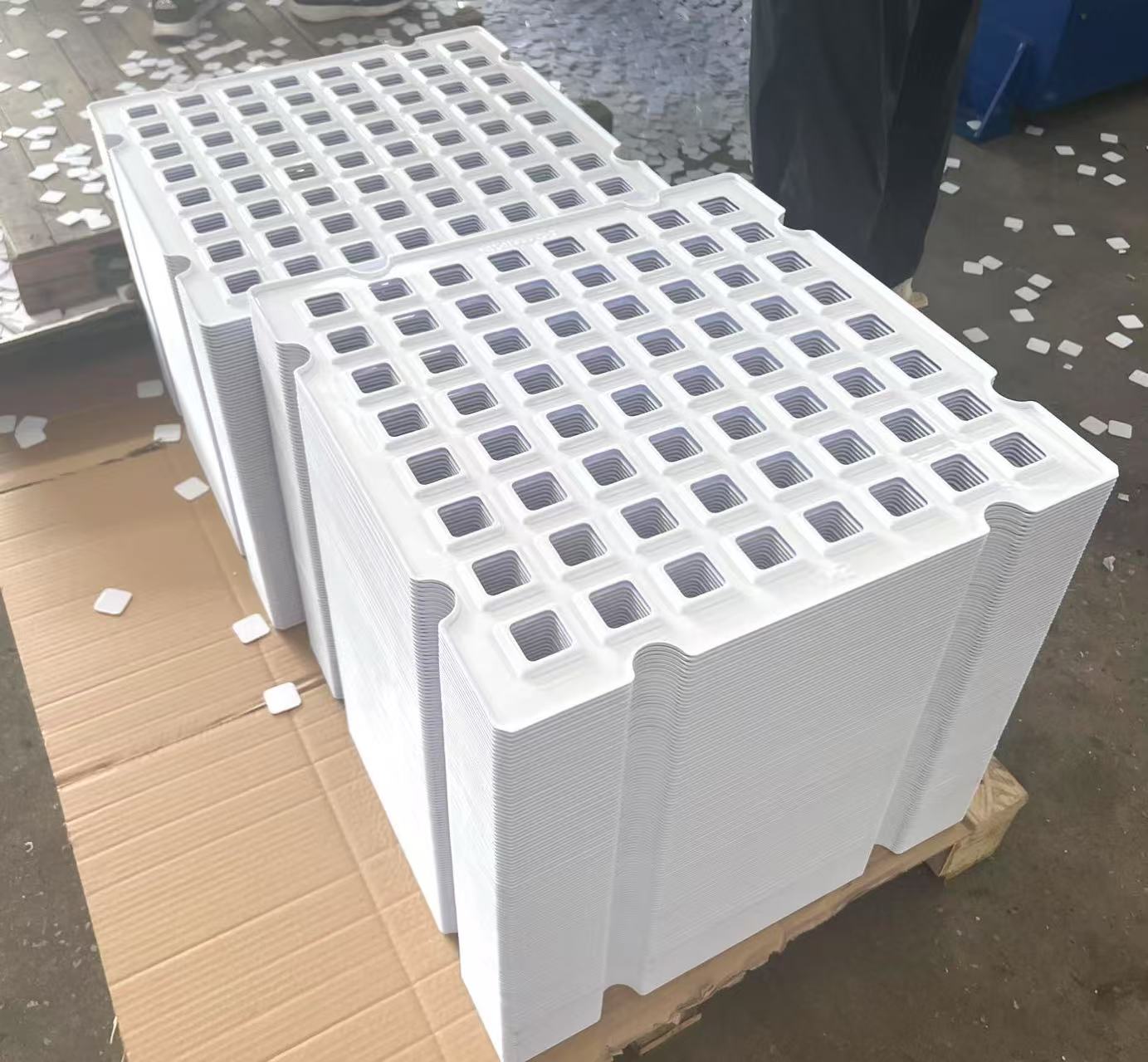

2mm Rigit PET high precise Die Cutting for battery storage by positioning

2mm Rigit PET high precise Die Cutting for battery storage by positioning

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	1400x810mm, 1400x710mm, 1600x810mm as request.
Motor	4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting
