We always have one machine in stock, and can make cutting die sample based on your design,
So welcome to send us your material to test.
Thinsulate insulation materials is widely used for acoustic and thermal insulation materials for apparel jackets, boots, sleeping bags, gloves, automotive of van, camper van, car, etc.

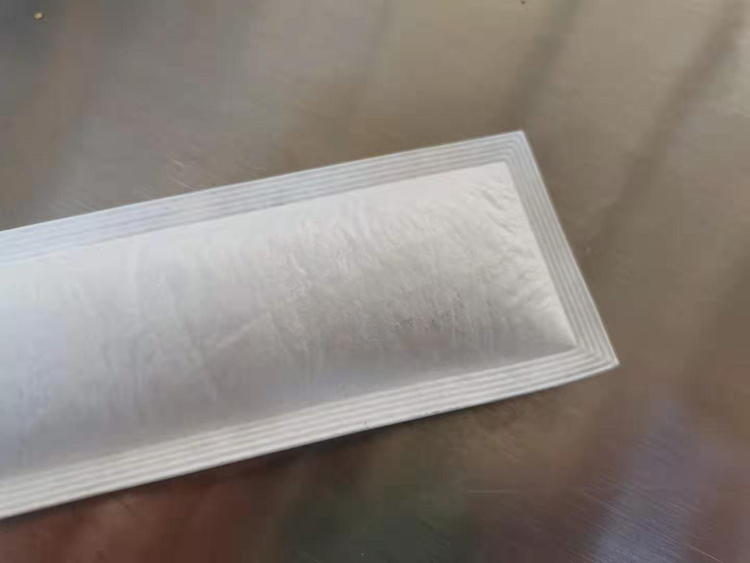

Since 2006, we have been invested into developing and manufacturing a suitable machine for the same thinsulate insulation material for 3M materials suppliers in China.From 100 tons, single side feeding, for sheets feeding, for rolls feeding, heating sealed, cooling sealed.. we tried so many to reach a high quality and most suitable die cutting machine with heater function to heat seal, meanwhile die cutting the thinsulate acoustic&thermal insulation materials. During the process, we also found, even only one name as thinsulate insulation, there are many different desity, thickness, types with fabric or not, No line/1 line/2 lines/3 lines/ 4 lines edge sealing requirements...

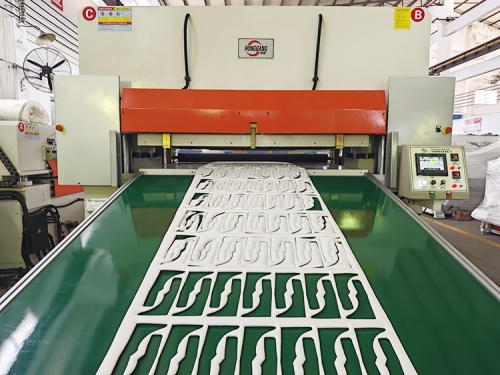

Finally, we settle it down as below sepcial , standard, customized model with 200 tons 1600x1000mm cutting area.

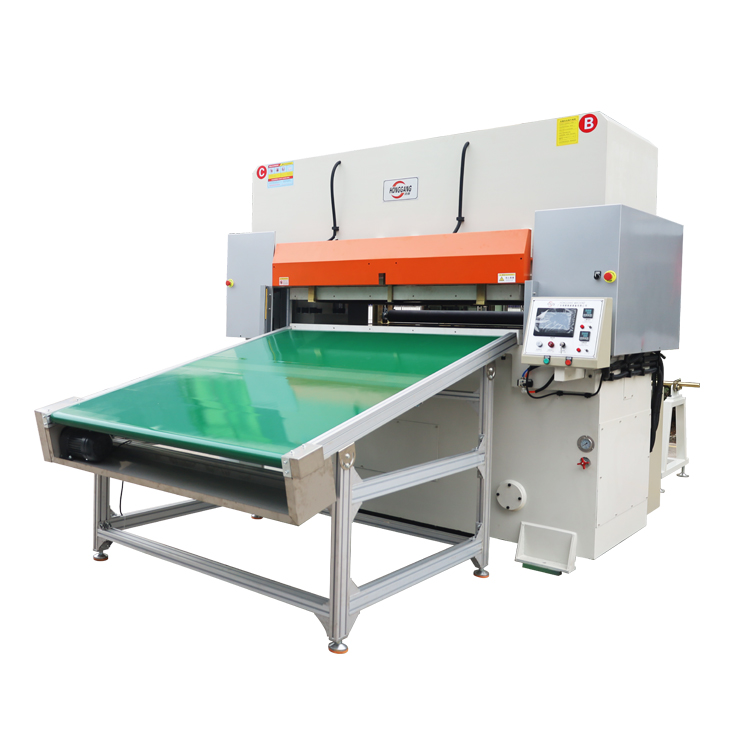

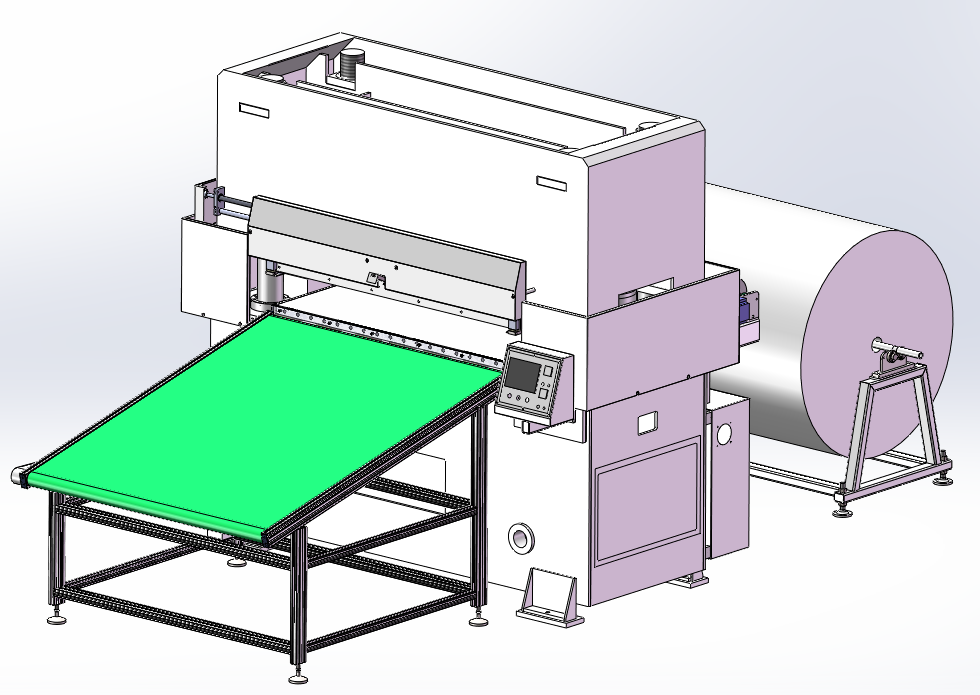

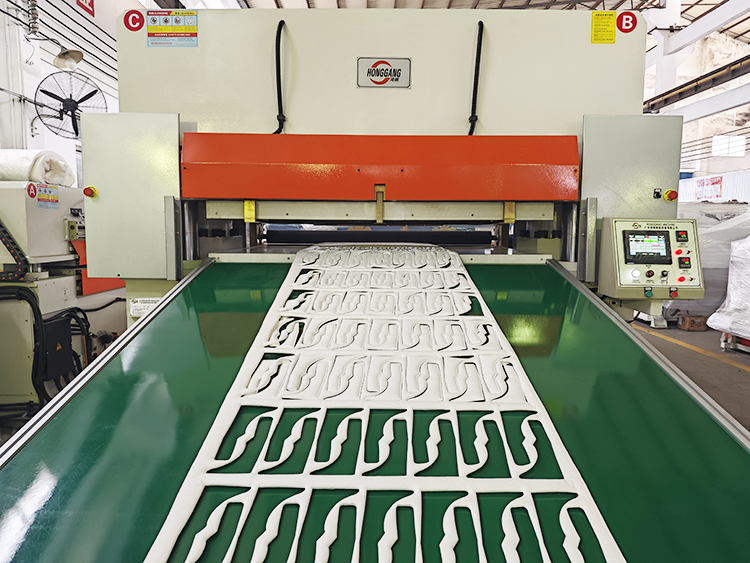

We special design the whole machine, including the high weigh cutting beam on top, the heating board in both top and bottom, servo-screws for micro adjusting the cutting depth, bottom plate a high-hardness die-cut steel plate with a hardness of HRC53° or above, and generally there will be no knife marks, seperated zones for temperature contorl... As whole thinsulate insulation die cutting machine, it will includes from the feeding roller holder, cutting machine, out-feeding table, roller-rewinder for the wastings. Below is the newest set of the same model HG-B200T, 200 tons witth cutting area 1600x1000mm, to show the details.
The machine set is including

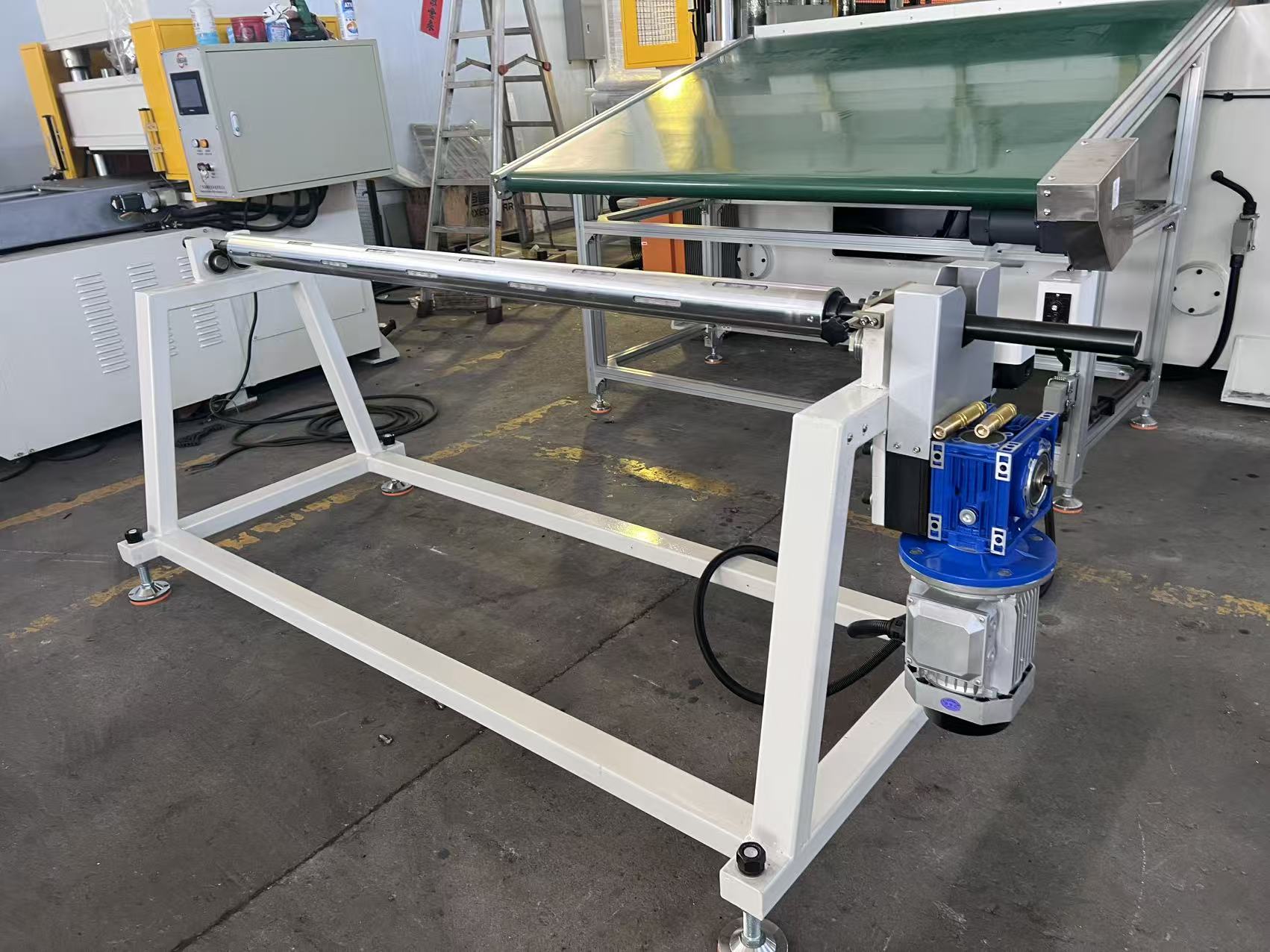

1) Material roll holder with motor release function.

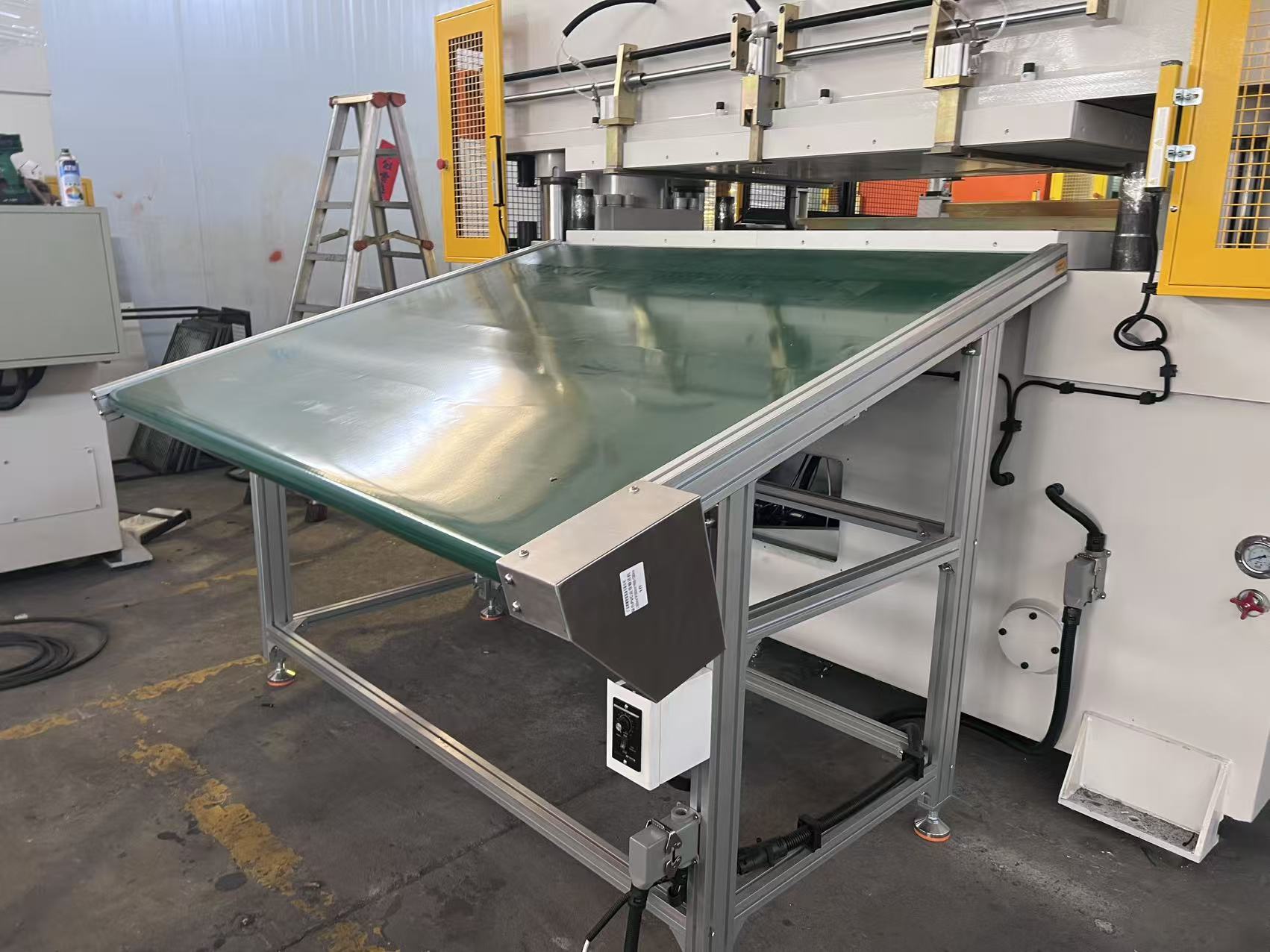

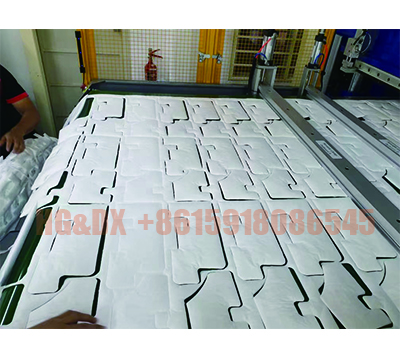

2) Belt-clip feeding table, instead of the roller feeding pressing the material,
A. including light guards for safty.
B. Convinient working buttons.
C. Guiding tools to align the feeding diection

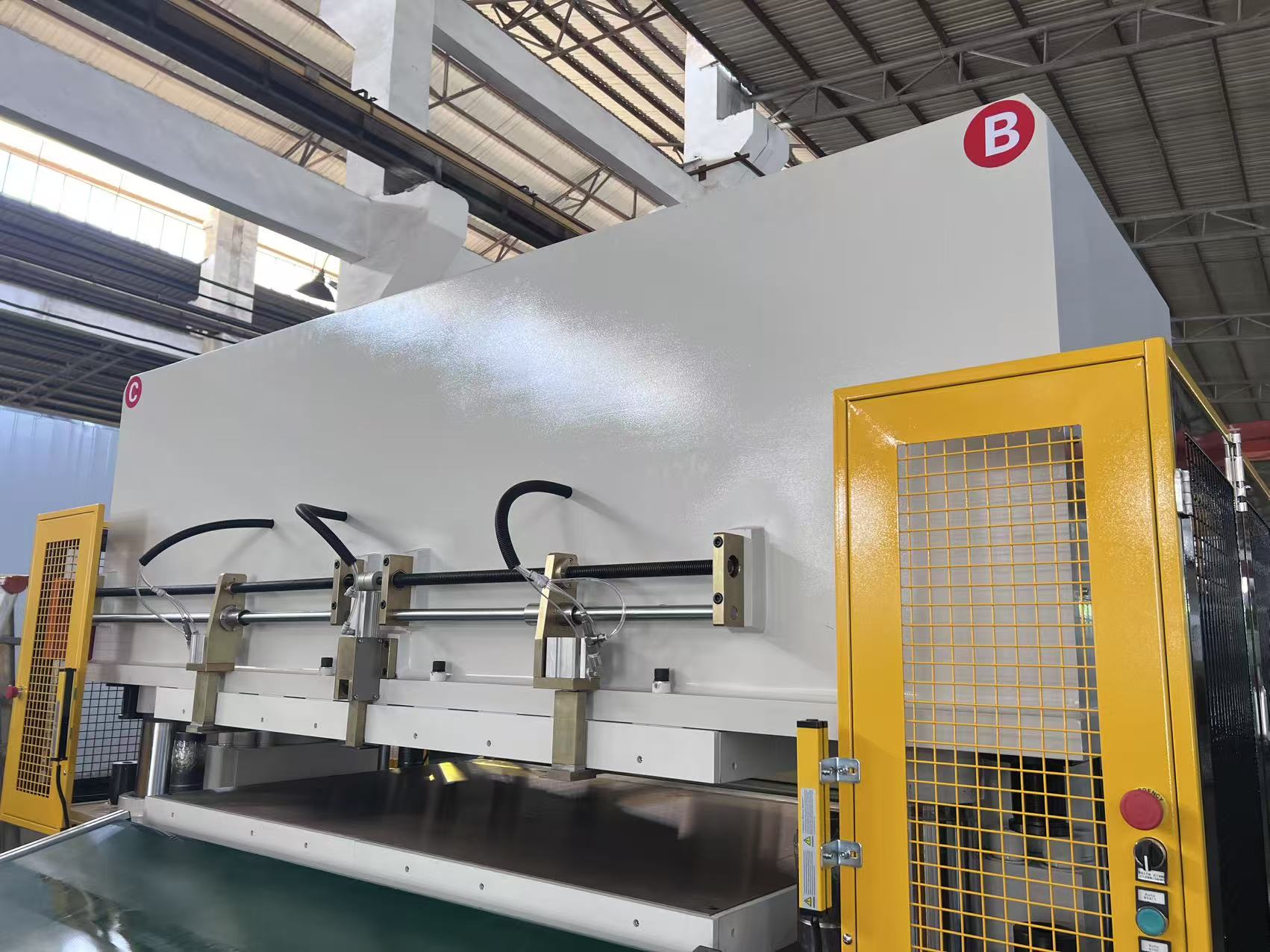

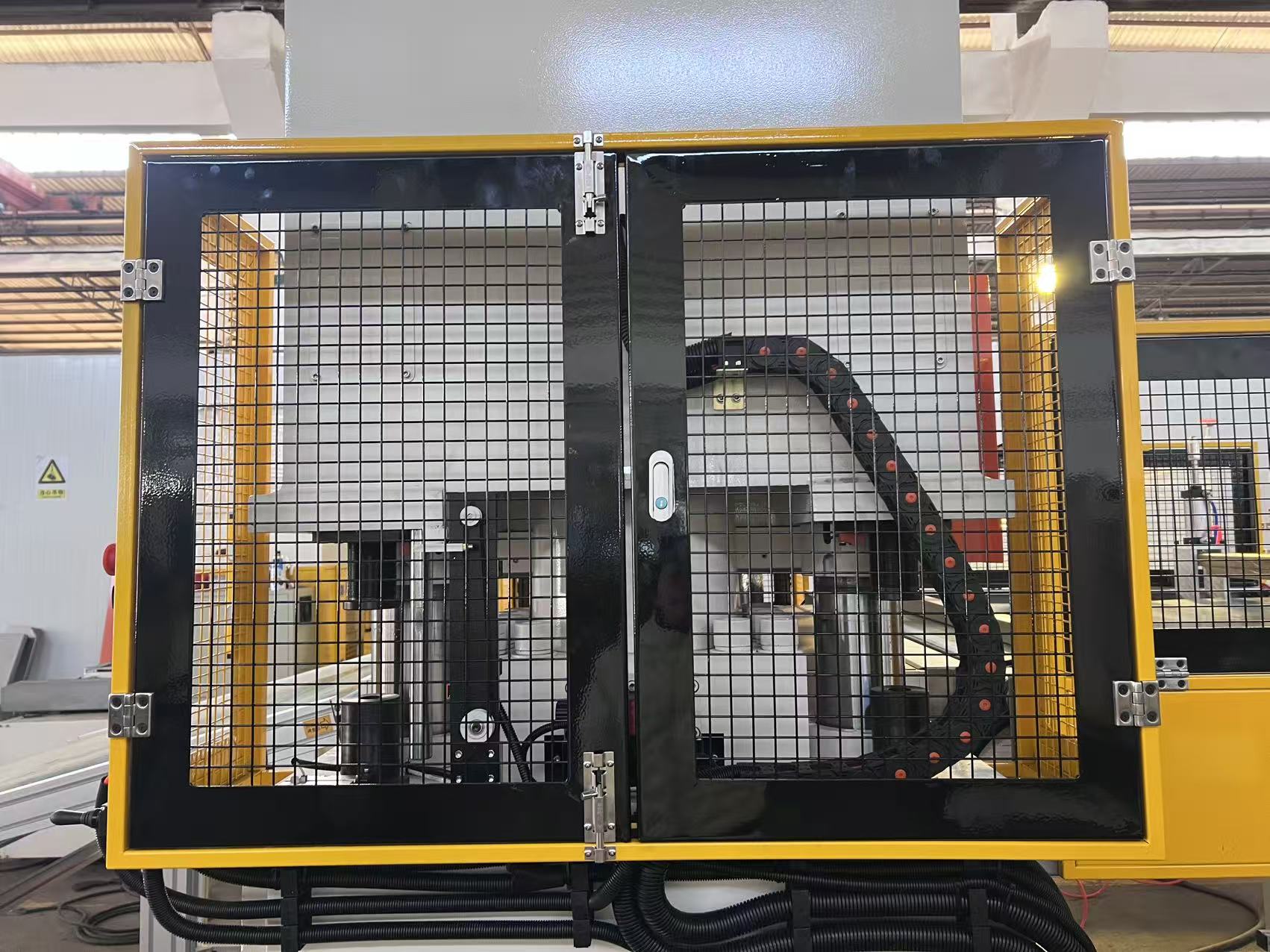

3) Cutting machine body, with super high and heavy head, flat surface,

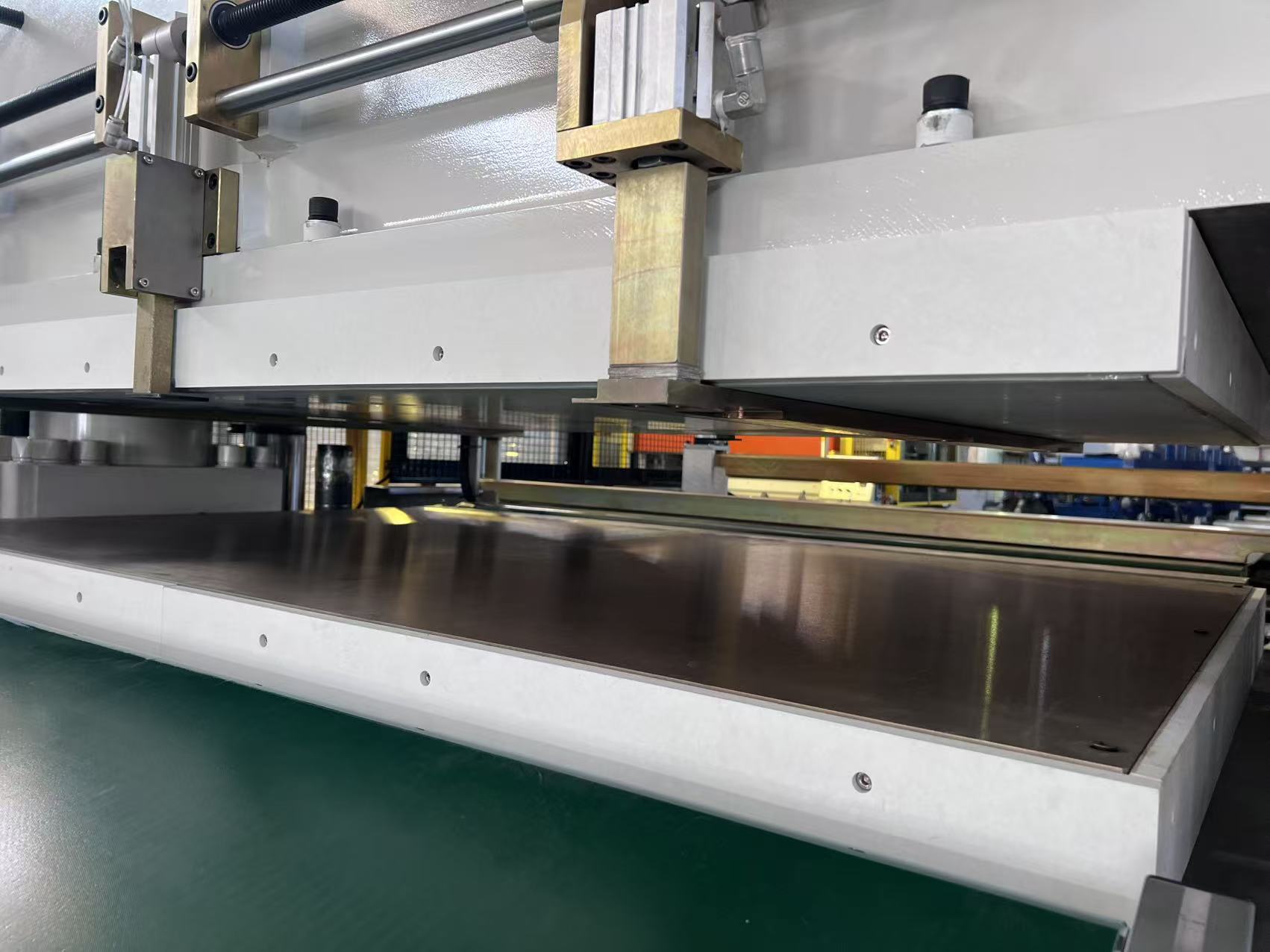

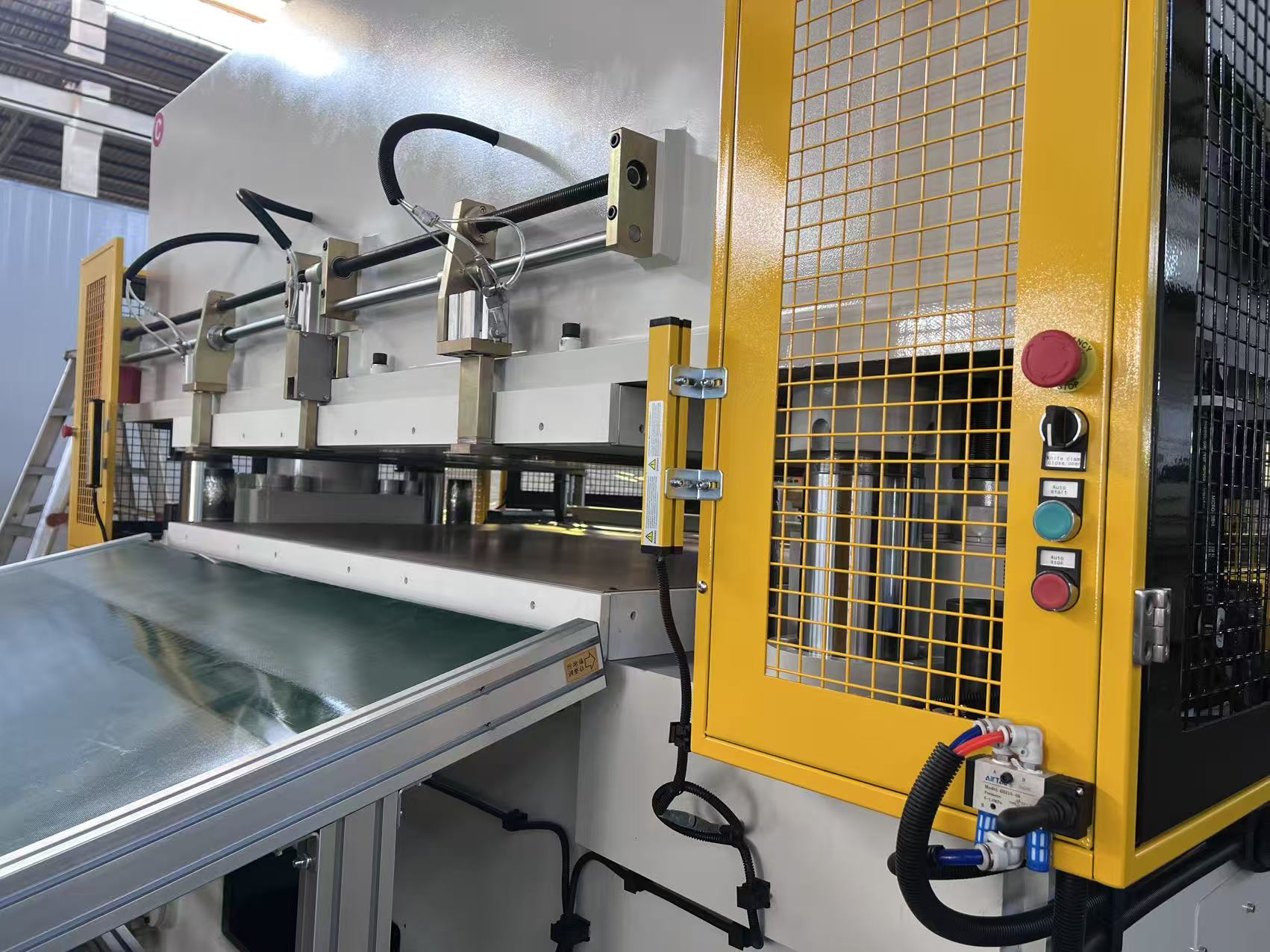

4) Cutting machine with Top and bottom heating board, with Insulation layer 40mm, Cutting area with 3mm cutting board.

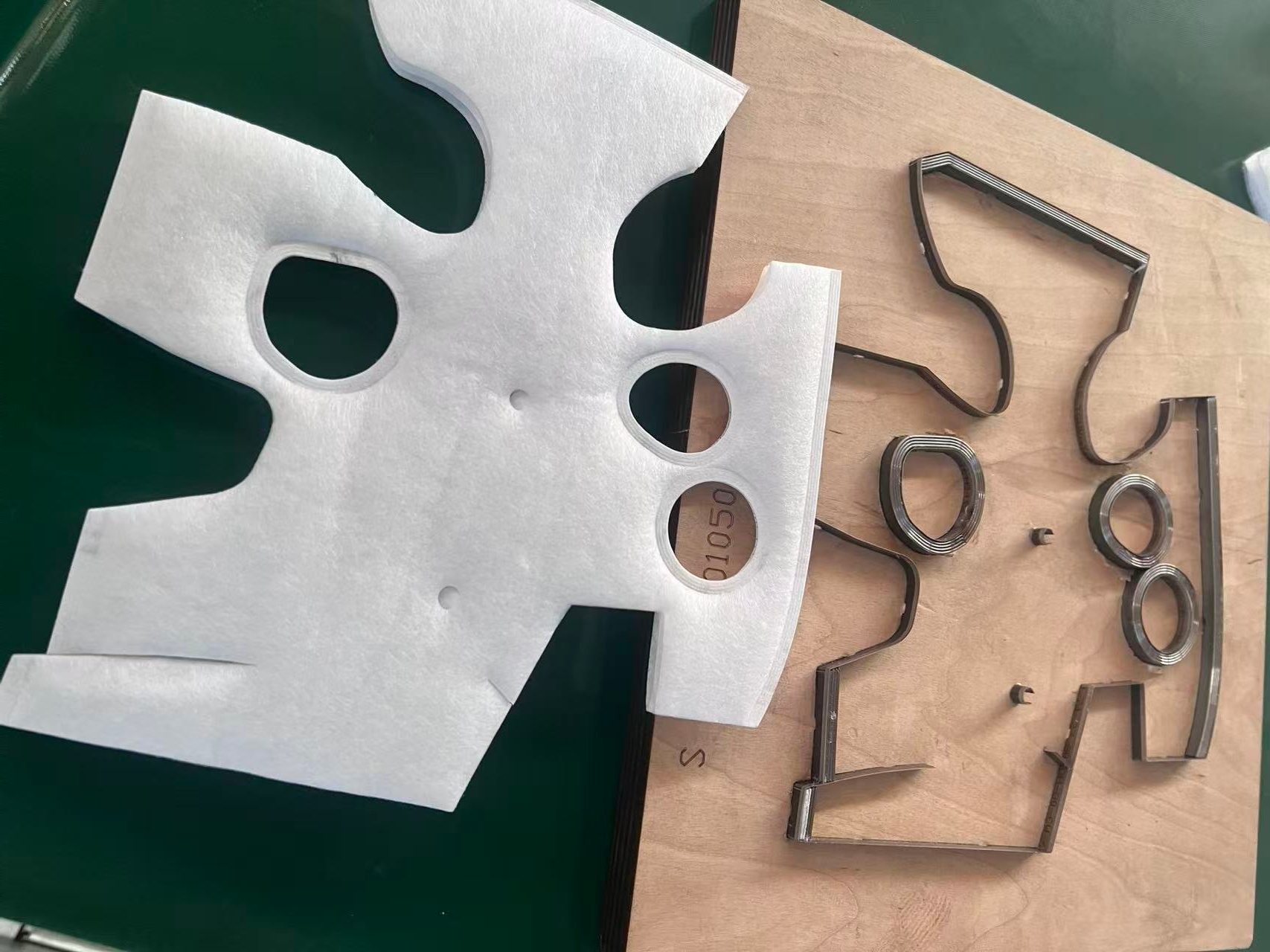

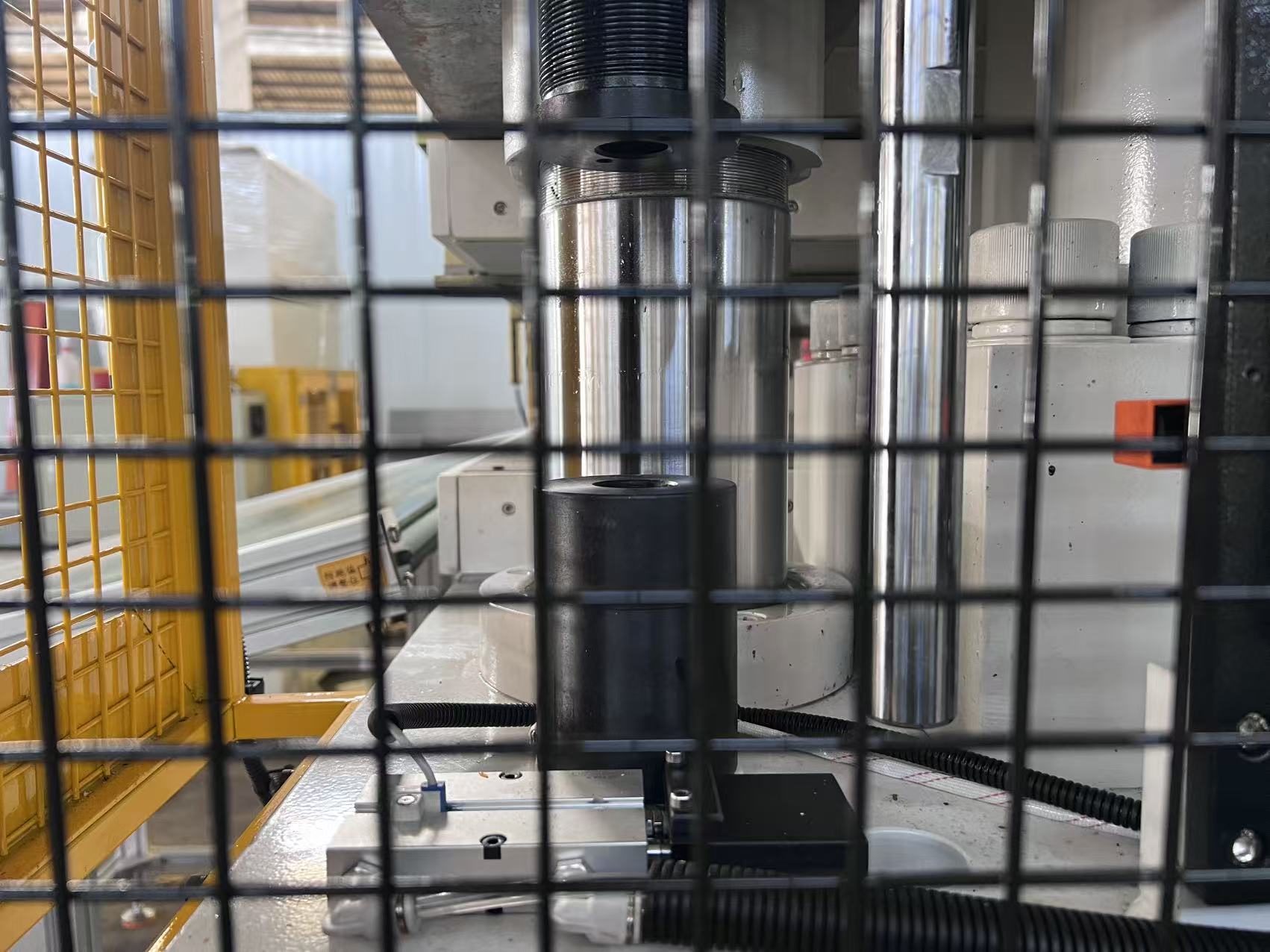

6) Cutting head with the cutting dies fixed tool, automatic clamp and automatic fixed or loose.
7) Out feeding table.
9) Wasting collection automatic holder with motor.
10) Neccesary function of cutting depth limit, PLC control.

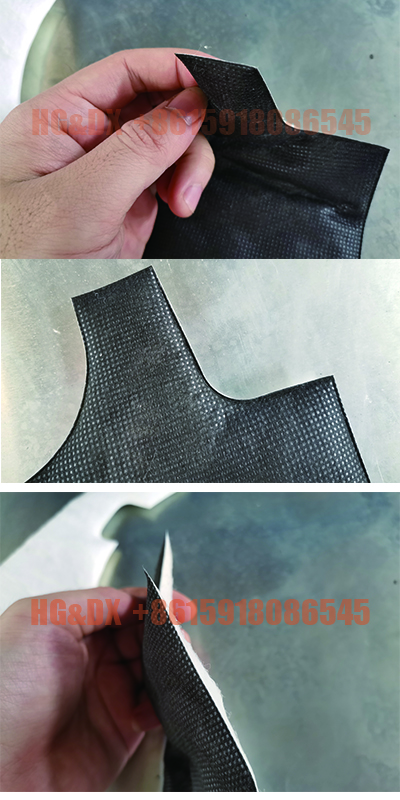

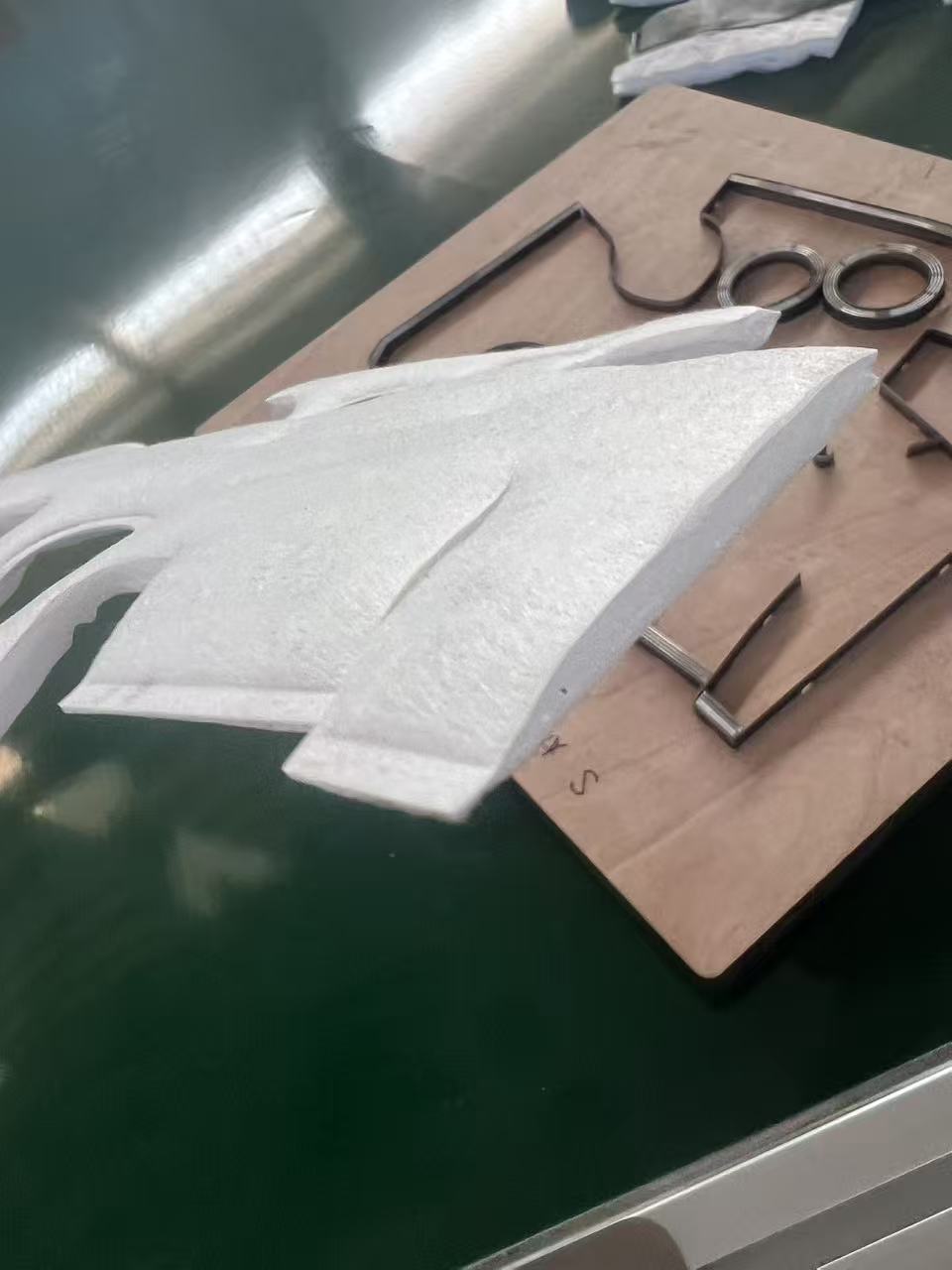

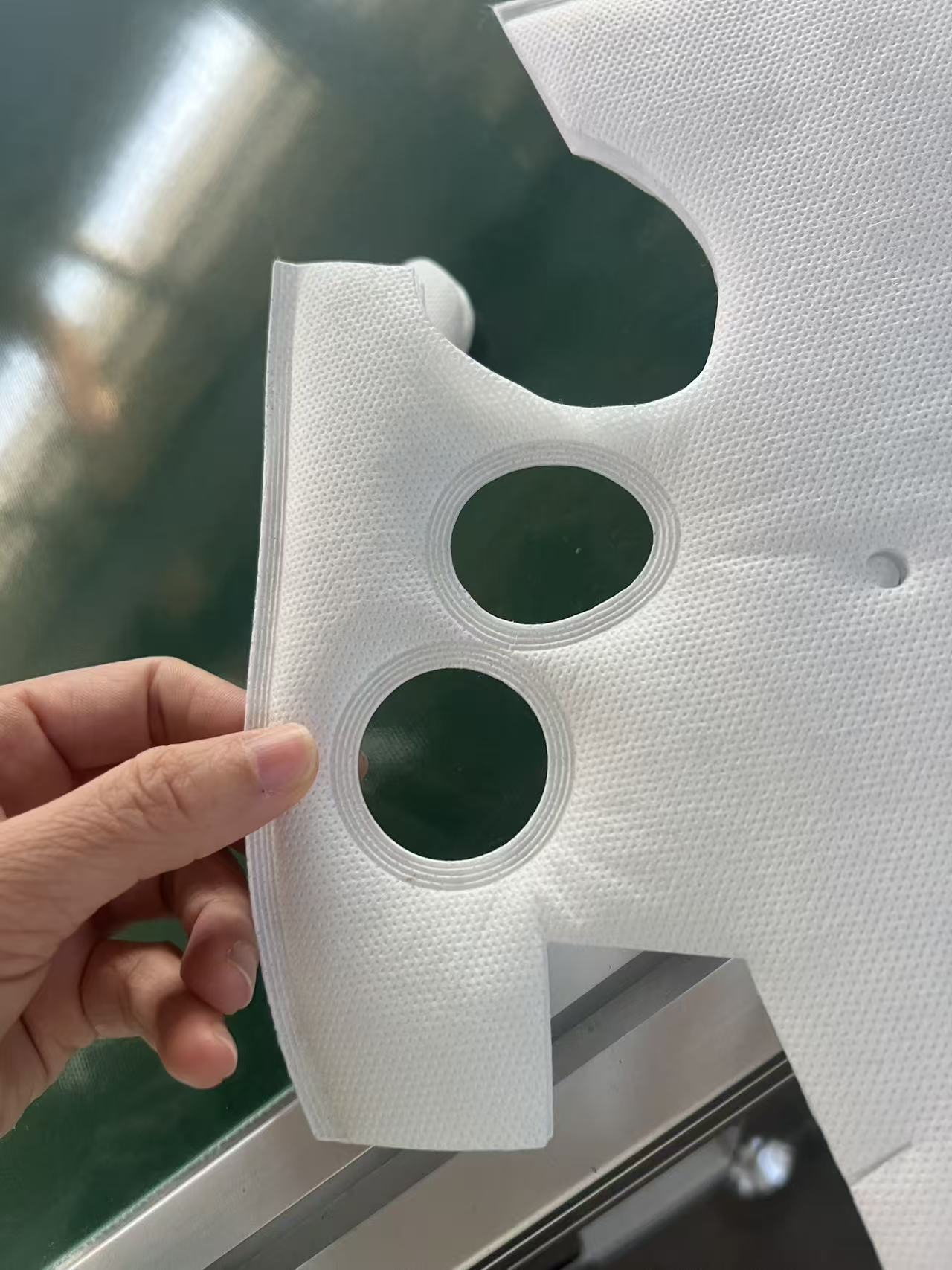

11) New Testing result with fabric at back:
1.Not fully auto feeding and cutting, each time die cutting by pressing buttons, for some thin thinsulate insulationi materials.
Cutting force
B200T
Cutting area
1600x610mm
Motor
29KW + Heater 36KW
Stroke
max 180mm
Feeding type
Full auto feeding
Open
50-230mm
Control system
Fatek PLC controlled
Table feeding speed
Adjustment
Working tables
Feeding table + pinch roller feeding
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
13000kgs
Feeding materials
Rolls ( Can customized for sheets
Cutting Thickness
0.1mm-90mm
Die Setting
In touch screen, auto setting
Cooling
Fan, Heat control seperated
Cutting Head Height
Adjustment, servo screw setting
Color
White as standard, or as request.
Counting
Auto counting
Thinsulate insulation materials is widely used for acoustic and thermal insulation materials for apparel jackets, boots, sleeping bags, gloves, automotive of van, camper van, car, etc.
Other details:
1. Feding method adopts roller feeding, which is convenient for knife adjustment, short machine body and saves materials during debugging. The original belt clip feeding is difficult to install the knife die, and wastes materials during debugging.
2.Cutting accuracy:±0.05mm
