Cutting Machine

application:
This hydraulic die cutting machine used for die cutting disposable plastic blister packaging,epe foam packaging,sponge sheet,large non-metallic material sheets and so on.

working video:
https://www.youtube.com/playlist?list=PLZTnvjIksKDi-9heZbff-lMKvqup158TR

feature:

Controlled by PLC(Programmable Logic Controller), with touching screen, to set and micro-adjust working
pressure,cutting depth, feeding speed easier, faster and more precise.
Double automatic working tables, increases the output twice or triple.
Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal pressure in any working area.
Powered by hydraulic system, slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.
Central automatic lubrication system, increases machine durability, prolong the working time.

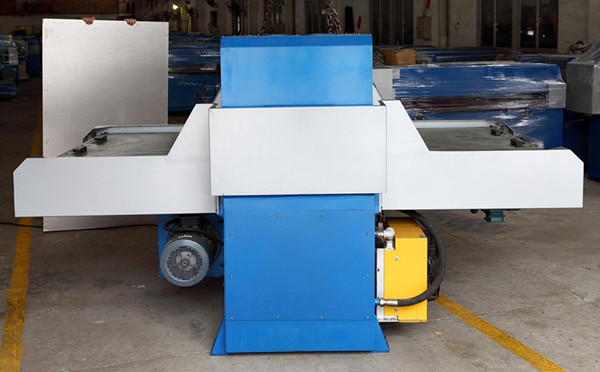

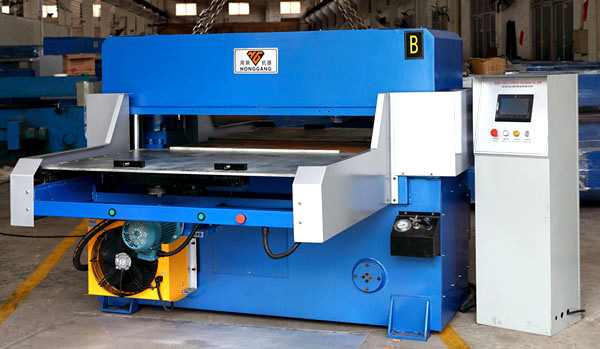

product picture：

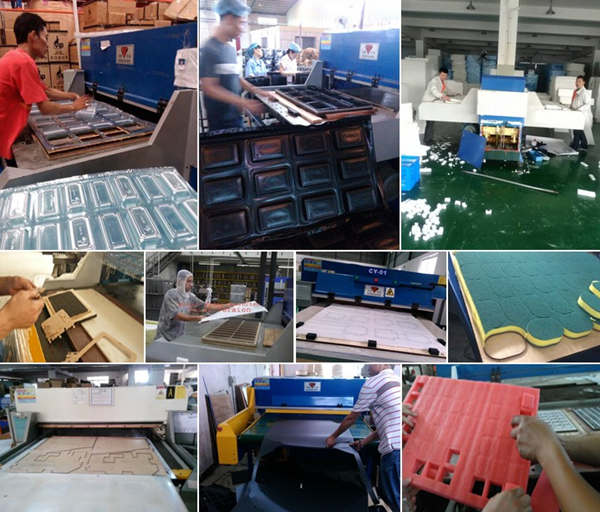

Cutting show:

Cutting force	50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area	1400x810mm, 1400x710mm, 1600x810mm as request.
Motor	4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke	max 180mm
Feeding type	Semi-auto feeding, by pressing the buttons to feed the feeding table
Open	50-230mm
Control system	Fatek PLC controlled
Table feeding speed	Adjustment
Working tables	single table, double tables
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	3000-100000kgs
Feeding materials	Sheets, with limit in feeding length
Cutting Thickness	0.1mm-90mm
Die Setting	In touch screen, auto setting
Cooling	Fan, water recycle
Cutting Head Height	Adjustment
Color	Blue standard, or as request
Counting	Auto counting
