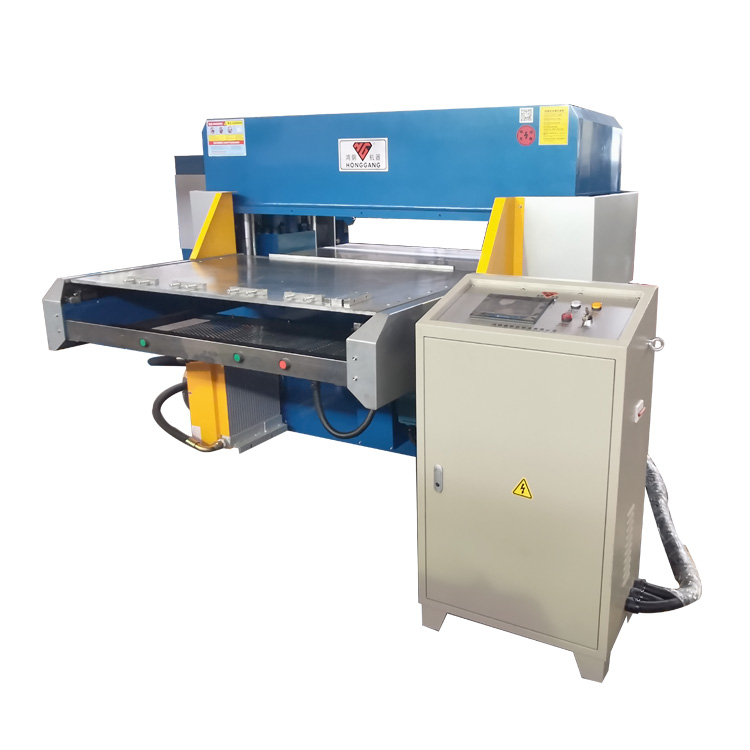

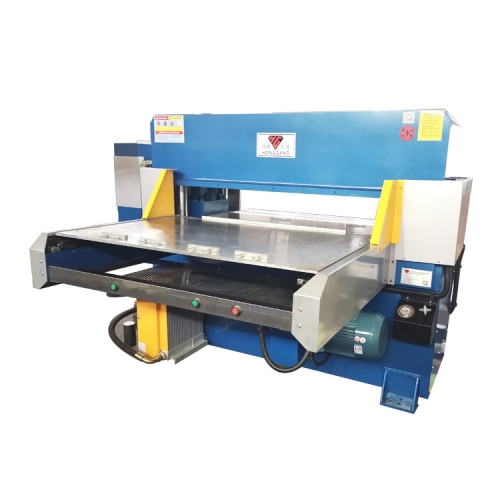

500 tons single table feeding jigsaw puzzle cutting machine

FeaturesOptionsSpecificationsIndustries

Product description
Sing-table feeding jigsaw puzzle cutting machine is designed for puzzle paper.Big working area,auto-balance structure of double-cylinder, four column and self-balance connecting rod, makes sure equal pressure in any working area.

Suitable for die cut Paper products, such as craft  paper, envelope, egg paper packing, cupcake papers, shoe fillings, pulp paper for packing, jigsaw puzzles, paper board ...

parameter
Working area : 900*1050mm
Height of working table : 1250mm
Motor : 15kw
Weight:8500kg

Feature
1.With automatic clamping device, it is easier to install and remove the mold.
2.With safety grating to make work safer
3.Auto single tabel feeding,increases the output twice and triple.

More Model
 Model  Cutting force  Dimension  Cutting Area Motor  Stroke  Net Weight
 HG-B60T  60 Tons  3000*2300*1570mm  810*1400mm 5.5 KW   50-230mm 4500kg
HG-B80T  80 tons   3000*2300*1570mm   810*1400mm 7.5 KW  50-230mm 4800kg
HG-B100T   100 Tons 3000*2300*1570mm   810*1400mm  7.5 KW 50-230mm  5000kg
HG-B120T   120 Tons 3000*2300*1570mm   810*1400mm  11 KW 50-230mm  5500kg
HG-B150T   150 Tons 3000*2300*1570mm   810*1400mm  11 KW 50-230mm  6000kg
 Remark:Cutting force can be from 50 tons to 300 tons;cutting area can be 610/710/810/910*1400mm/1600/1800mm,etc

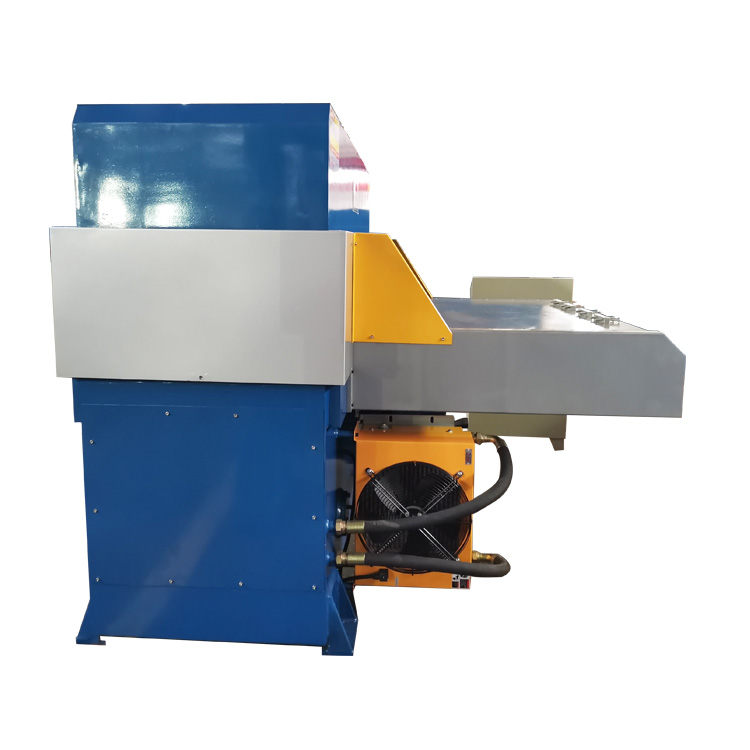

Machine detail
