Application

video:

As the most popular hydraulic die beam cutting press model, Hg-A series has thin stroke of 50-160mm for thin material of leather,fabric,plastic foam..while HG-B series with 50-240mm stroke to cut thick materials.

Advantages of honggang die cutting press:
1)Honggang machinery is stronger than others, such as the steel heavy, machine body thickness, which can be as a part to assure the machine quality.

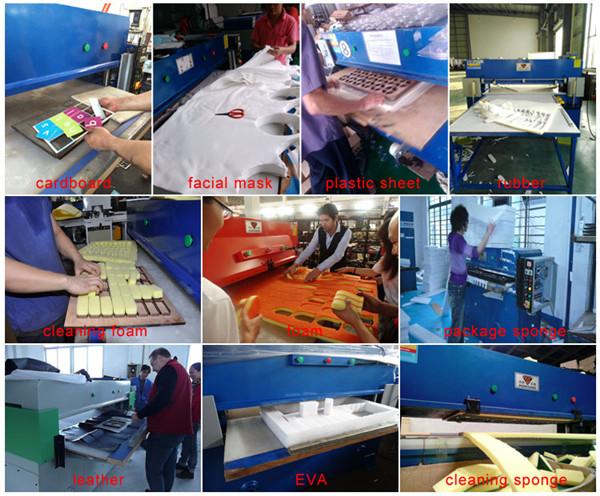

2)30 tons for bags, shoes, foam, sponge, blister, 40 tons for seat cover, packing foam, blister, cleaning sponge....They all suitable for multi layer materials and sheet or rolls non-metal materials die cutting.

3)We focus on four columns auto balance structure of precision hydraulic die cutting press, which is the newest and best structure, most poplular structure in hydraulic cutting machines.

4)Hydraulic system instead of mechanical system, runs softly, cuts flexible, to confirm machine steady, quality, life long, and cutting line.

5)Central automatic lubrication systems can ensure precision and durability.

6)Siemens motor and other quality worldwide famous parts, while other suppliers can not offer from China.Honggang is the only one to adapts such good parts.

1	Motor	Siemens
2	Oil pump	Japanese Yuken(PV2R2-47-1R)
3	Hydraulic system	Taiwan JeouGang
4	Electromagnetic valve seat	Taiwan
5	Relay	IDEC Japan
6	Seal	Germany SHAMBAN
7	Main electric	Japanese Fuji and Japanese Omron
8	Photoelectric Switch	Omron, Japan
9	Power supply	Schneider France

Tell me your request, we wholeheartedly for your answer

Cutting force	30T,40T, 50T, 60T, 80T, 100T
Cutting area	558x1220mm, 558x1600mm,610x1220mm, 710x1220mm,810x1400mm, 610x1600mm, 910x1800mm,etc as request.
Cutting Plate	558x1220mm, 558x1600mm,610x1220mm, 710x1220mm,810x1400mm, 610x1600mm, 910x1800mm,etc as request.
Model	Hg-AB30T/40T/50T/60T
Motor	2.2kw, 4kw,5.5kw,7.5kw,9.5kw,11.5kw,13.5kw
Stroke	50-240mm,50-160mm
Voltage	3 phase 220/380/415/440V 50/60HZ
Net weight	1900kg, 2000kg, 2500kg,2400kg,2900kg,2800kg,1600kg,1500kg
Gross weight
Dimension	2330x1320x1260mm,1950x1320x1260mm
CBM	4.26cbm, 3.8cbm

Application

HG-A30T 40T 50T Tons Beam Cutting Press

FeaturesOptionsSpecificationsIndustries

30-50 tons beam cutting press

Features Options Specifications Industries
