This Automatic Cutting Machine by Belt-clip Feeding is the hot sale product of our company this year. The feeding mode of this machine is belt feeding, with the clip to fix the materials, feeding with roller, to drag the material on the belt, and then cutting, fully automatic, greatly saving the labor cost and improving productivity.
Feature:
1.Automatic cutting machine pressure 50-300Tons optional.
2.Hydraulic,simple operated, material precision 0.01mm, no burned.
3.Two Cylinders, Four Column, automatic cutting machine by belt and phneumatic clip feeding.
4.Specially for many layers of materials automatic feeding,.
5.Can make cutting area according to the size of materials.
6.PLC controlled, touch screen operation.
7.Optional with single feeding belt-clip table, for cost saving.
8. Any size of large can be customized, such as 1800x2300mm for LED electricity products package.
9. Fast die fixed tool available.
10.Holders and rollers optional.
11. Safety guards on both sides, safe production!
12. Honggang brand!
Not only multilayer thin rolls can be cut by Automatic Cutting Machine by Belt-clip Feeding, as well thick EVA foam, EPE foam can be feeding and cutting by the same machine, soft leather with fabric can be feeding by many layers.
Other details including:

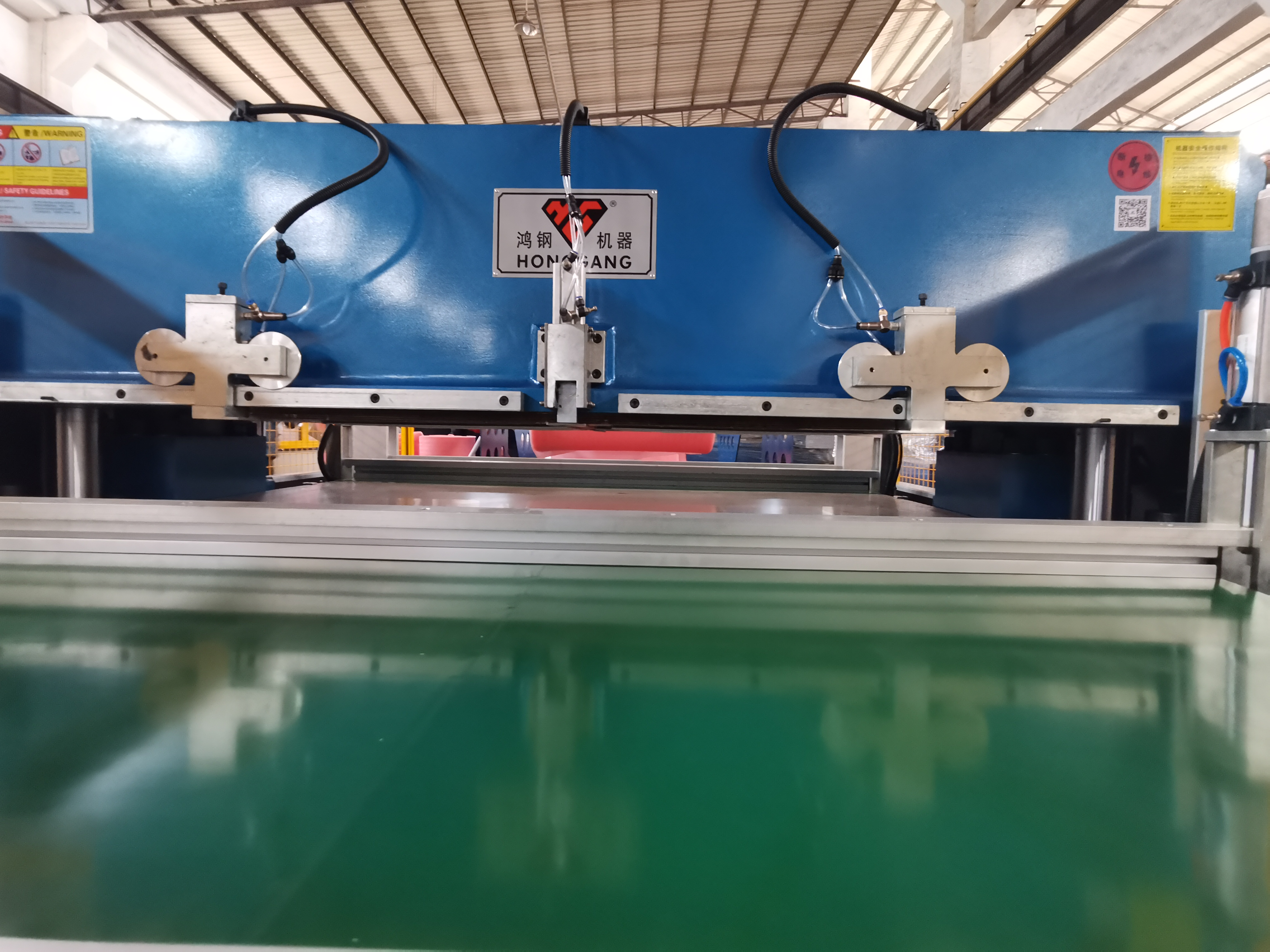

1.Cutting die fast fixed tool.
2.Materials feeding guides to make the materials align.
3.Urgent stop buttons.
4.Manual and Automatic working mode for choice.
5.Multi language support.
Picture：

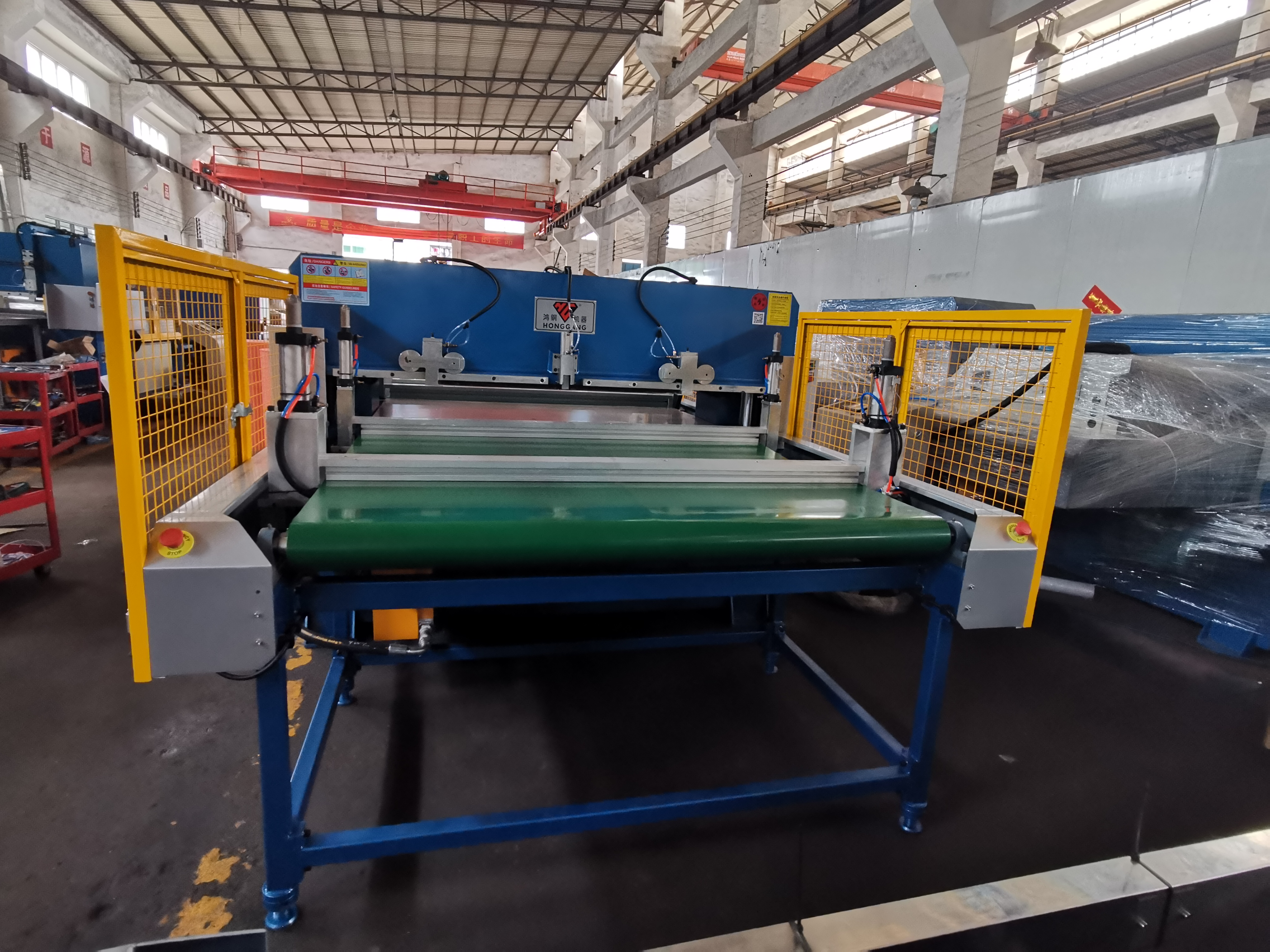

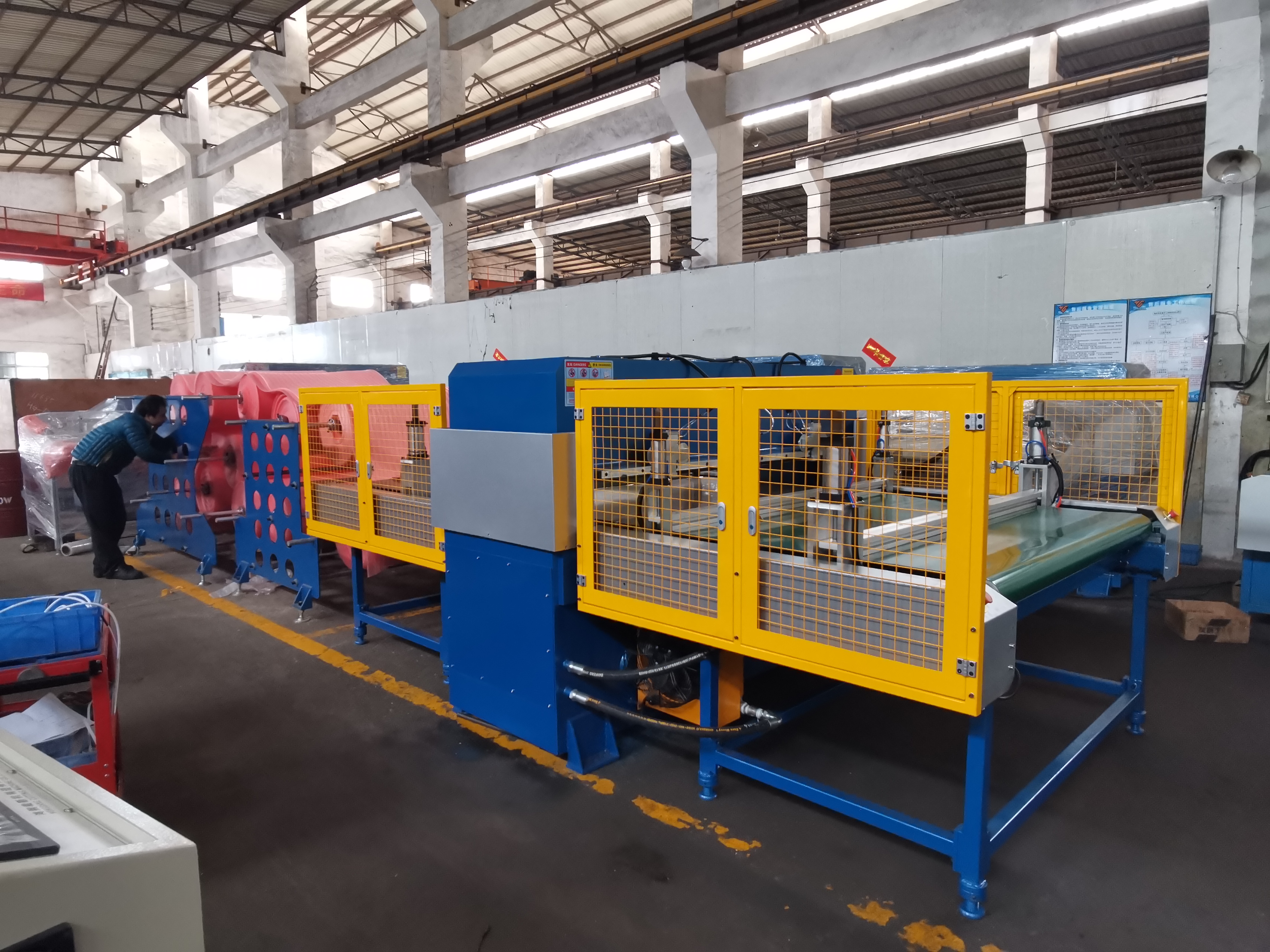

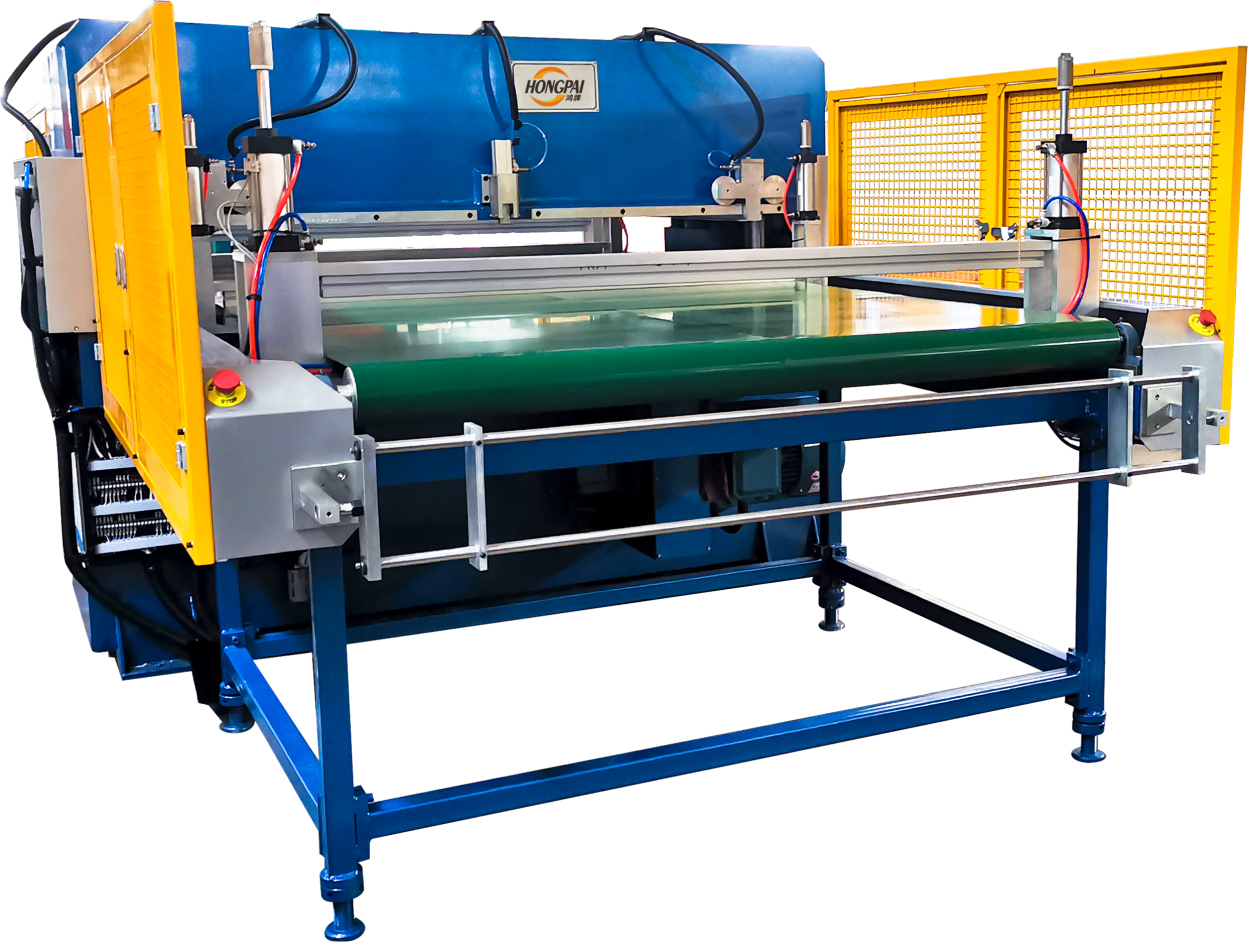

Automatic Cutting Machine by Belt-clip Feeding, the other machine types optional.

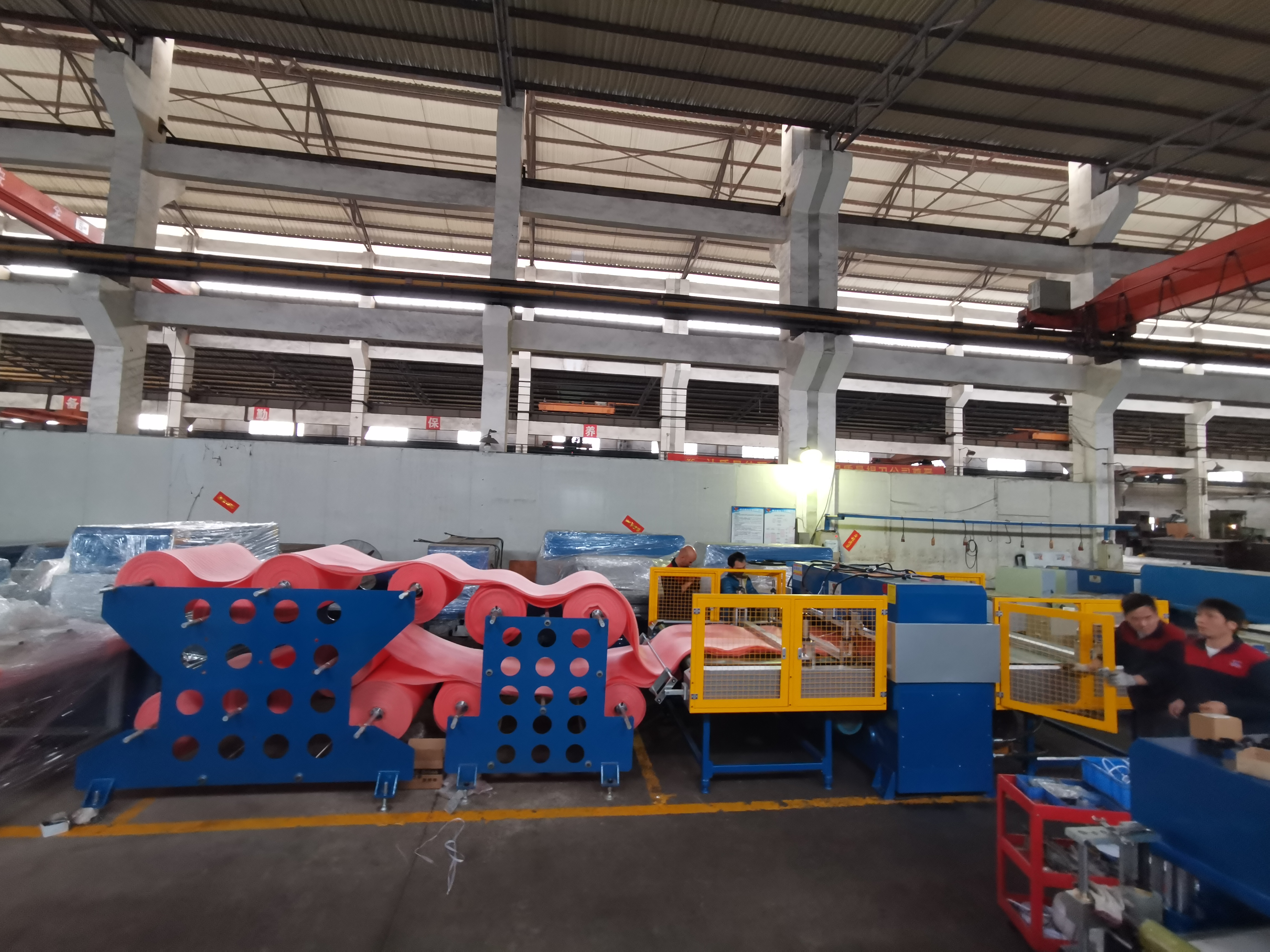

1) With Roller feeding for multi-layer sheets/ Rolls 5-80mm thickness
2) With Two sides table feeding, for very thick sheets,small size
3) With full-belt feeding,cutting on belt, for thickness 1mm thickness
Cutting force
50T,60T,80T,100T,120T,150T,180T,200T, 300T
Cutting area
1400x810mm, 1400x710mm, 1600x810mm as request.
Motor
4kw,5.5kw,7.5kw,9.5kw,11kw
Stroke
max 180mm
Feeding type
Semi-auto feeding, by pressing the buttons to feed the feeding table
Open
50-230mm
Control system
Fatek PLC controlled
Table feeding speed
Adjustment
Working tables
single table, double tables& belt-clip auto feeding
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
3000-100000kgs
Feeding materials
Sheets, with limit in feeding length
Cutting Thickness
0.1mm-90mm
Die Setting
In touch screen, auto setting
Cooling
Fan, water recycle
Cutting Head Height
Adjustment
Color
Blue standard, or as request
Counting
Auto counting
Automatic Cutting Machine by Belt-clip Feeding Application materials industries:
Foam packing,
EPE foam,
EVA foam,
PE foam,
PU foam,
Leather,
fabric,Non-woven
car interiors,
thermal insulation cotton, polyester wadding/padding fiber,
wool felt rolls,
PU foam with sticker, Thermal Bonded Felt,
Ceramic Fiber Blanket
