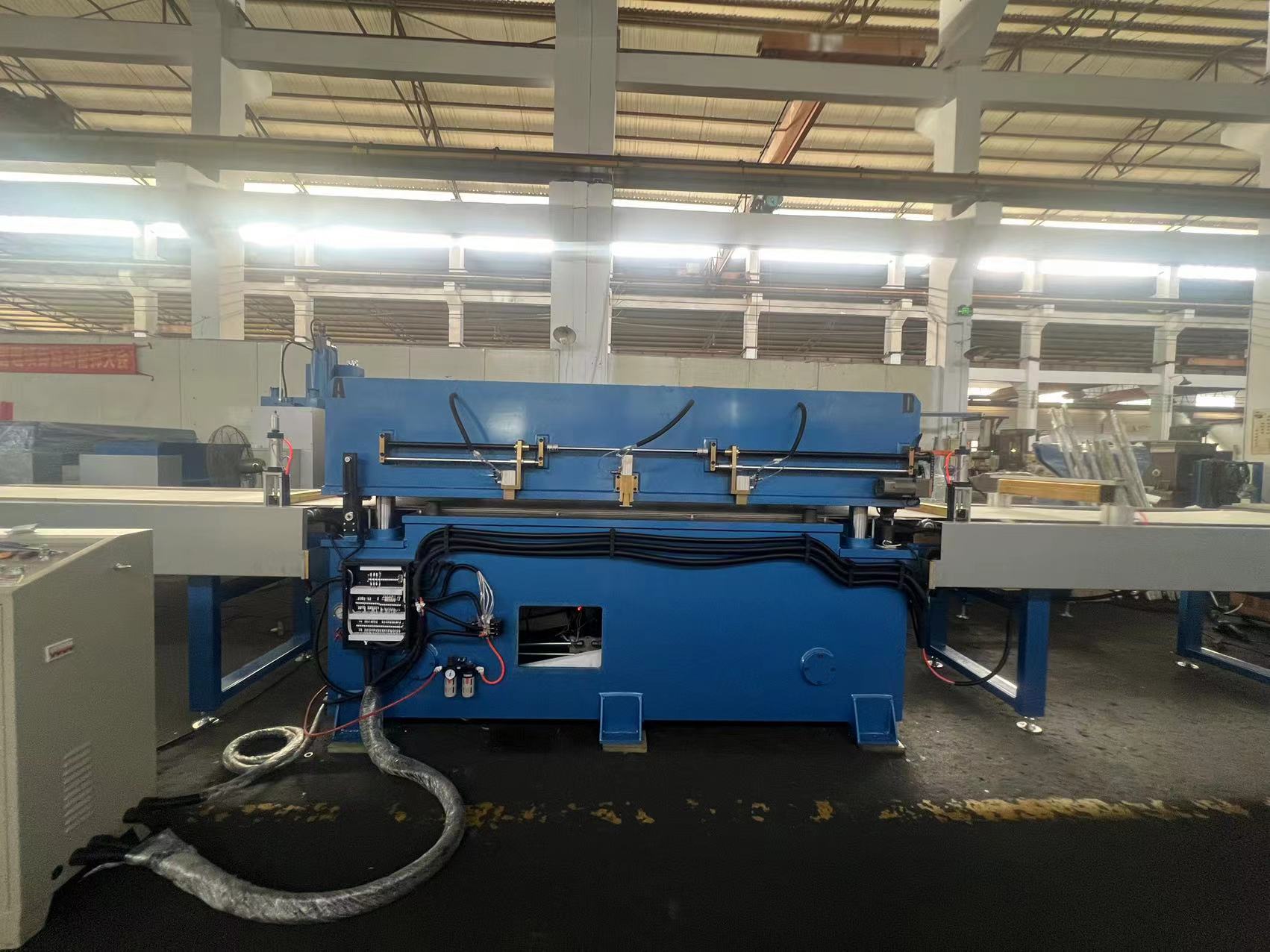

2 meters Length Small width Auto feeding Die cutting machine

Model:HG-B100T

This item has added to inquiry basket
Enter Inquiry Cart now.

This item was already in your inquiry basket
Please Check your Inquiry Cart .

Cutting Pressure	60T, 80T, 100T, 150T, 200T, 300T
Cutting Area	1400x810mm, 1400x910mm, 1600x810mm, 1600x1000mm
Automatic	Fully Automatic, no need human feeding
Control System	PLC
Feeding Type	Full Belt Through the Cutting area and cut on belt; double-table with clip feeding
Materials Type	Boards, Rolls; mainly for Rolls
Material Thickness	1mm or above
Layers	Multi-layer or Single
Cooling	Electric fan, water recycle
Machine structure	4-column, 2-cylinder, with cutting position limit funtion
Cutting Process	Cutting head with 2 stages of cutting speed
Die Setting	In Touch Screen, automatic
Cutting Head Height	Adjustment
Motor	5.5kw, 7.5kw, 11kw
