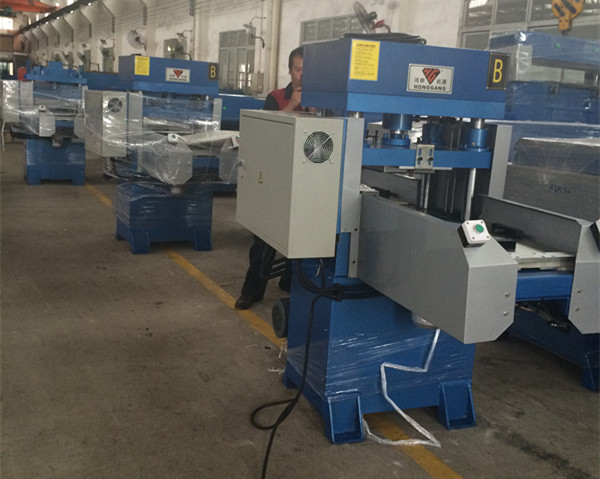

We design this kind of small hydraulic press cutting machine, with two-working sides, for the request of small blister sheet cutting, only with 15 tons.
It is controlled by PLC to set the working speed, pressure, head height. Even though it's small type but also easy to operate. And double-sides working table allows two workers worker together, just like two machines working to increase the output.
Working pressure from 15 tons to 200 tons.
Working area from 558x1220mm to 810x1600mm
Automatic cutting
Precision Cutting
Manual cutting
Double side Cutting
Single side cutting
Heating cutting
Cutting with stacker
Cutting force
15 tons
Cutting area
500x500mm
Working tables
double table
Feeding table type
Chain feeding
Motor
2.2kw
Stroke
50-160mm, 50-240mm
Voltage
3 phase 220/380/415/440V 50/60HZ
Dimension
Net weight
Application Decorative False Ceiling, Mfrs. Small trays, Mithai Boxes. Packaging of industrial & Commercial products, Pharma, Cosmetics, Automobile, Spare parts, Toy games & related products, Stationery Industry, General Hardware Etc.
contact usto know more about this cutting machine.
