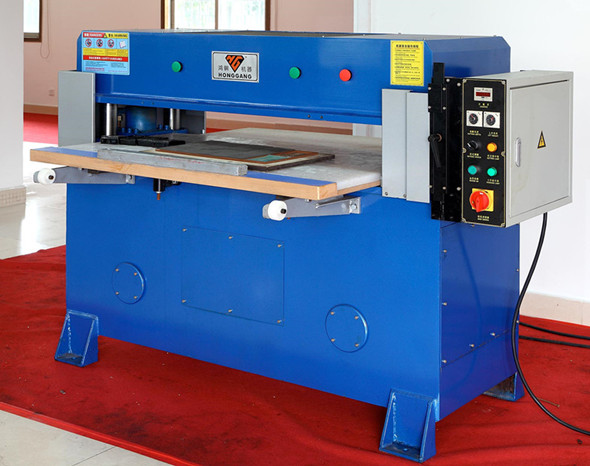

This die cutting press machine is cut material by dies or moulds,it used for die cutting paper materials,paper puzzle,jigsaw puzzle,cardborad,plywood,toy puzzle,wooden puzzle and so on,it apply to die cut all non-metallic materials.
features: 1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area.
2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.
3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.
4.Central automatic lubrication system, increases machine durability, prolong the working time.
5.Suitable for single-layer or multi-layer sheet or roll materials.

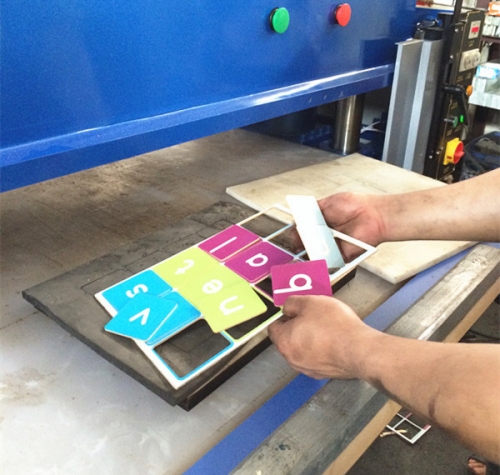

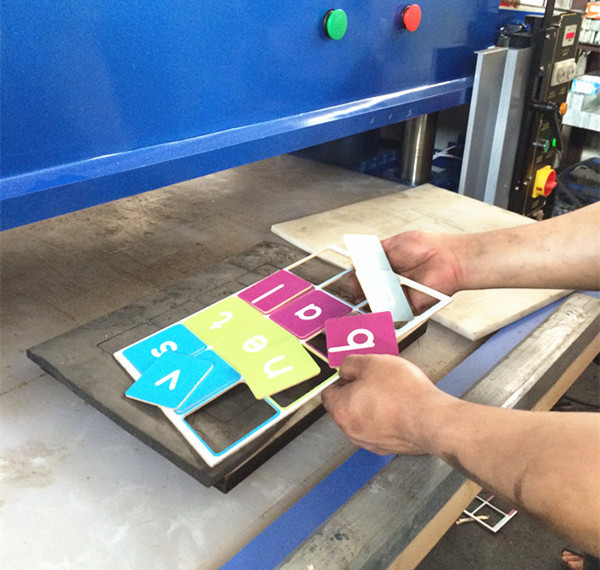

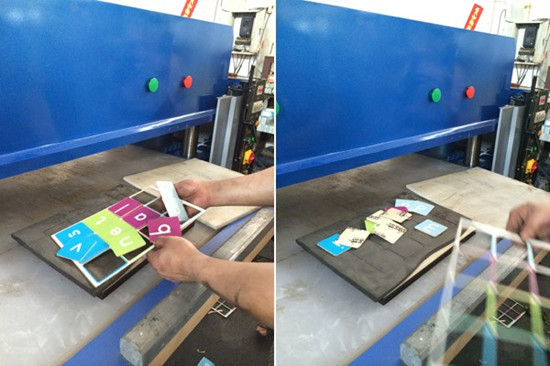

machine sample: Welcome to contact us to know more about this cutting press machine
Cutting force
30T,40T, 50T
Cutting area
610x1220mm, 610x1600mm,etc as request.
Cutting Plate
610x1220mm, 610x1600mm,etc as request.
Model
HG-A30T,A40T,A50T, HG-B30T,B40T, B50T
Pressure Adjustment
Yes
Feeding type
By hand to drag or push the wood feeding table
Feeding materials
No limits
Cutting Thickness
0.1mm-90mm
Counting
Auto counting
Cooling
No
Motor
2.2kw,4kw
Stroke
50-240mm,50-160mm,50-230mm
Voltage
3 phase 220/380/415/440V 50/60HZ
Net weight
1900kg-2800kg
Dimension
2330x1320x1260mm,1950x1320x1260mm
CBM
4.26cbm, 3.8cbm

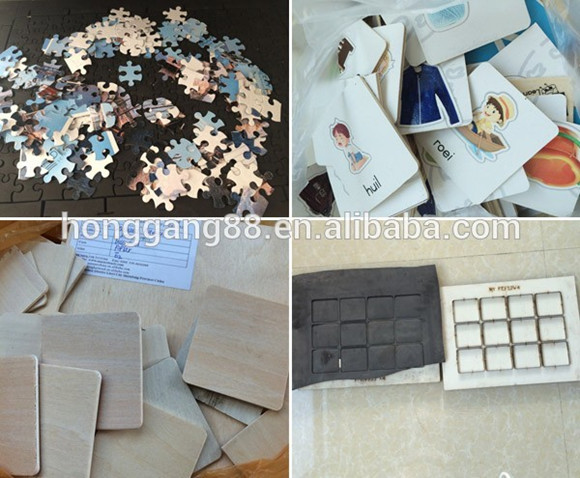

paper puzzle cutting,
jigsaw puzzle cutting,
cardborad cutting,
plywood cutting,
toy puzzle cutting,
wooden puzzle cutting and so on.
